Mercury 150 EFI User Manual

WIRING DIAGRAMS
90-883728 JULY 2001 Page 2D-15

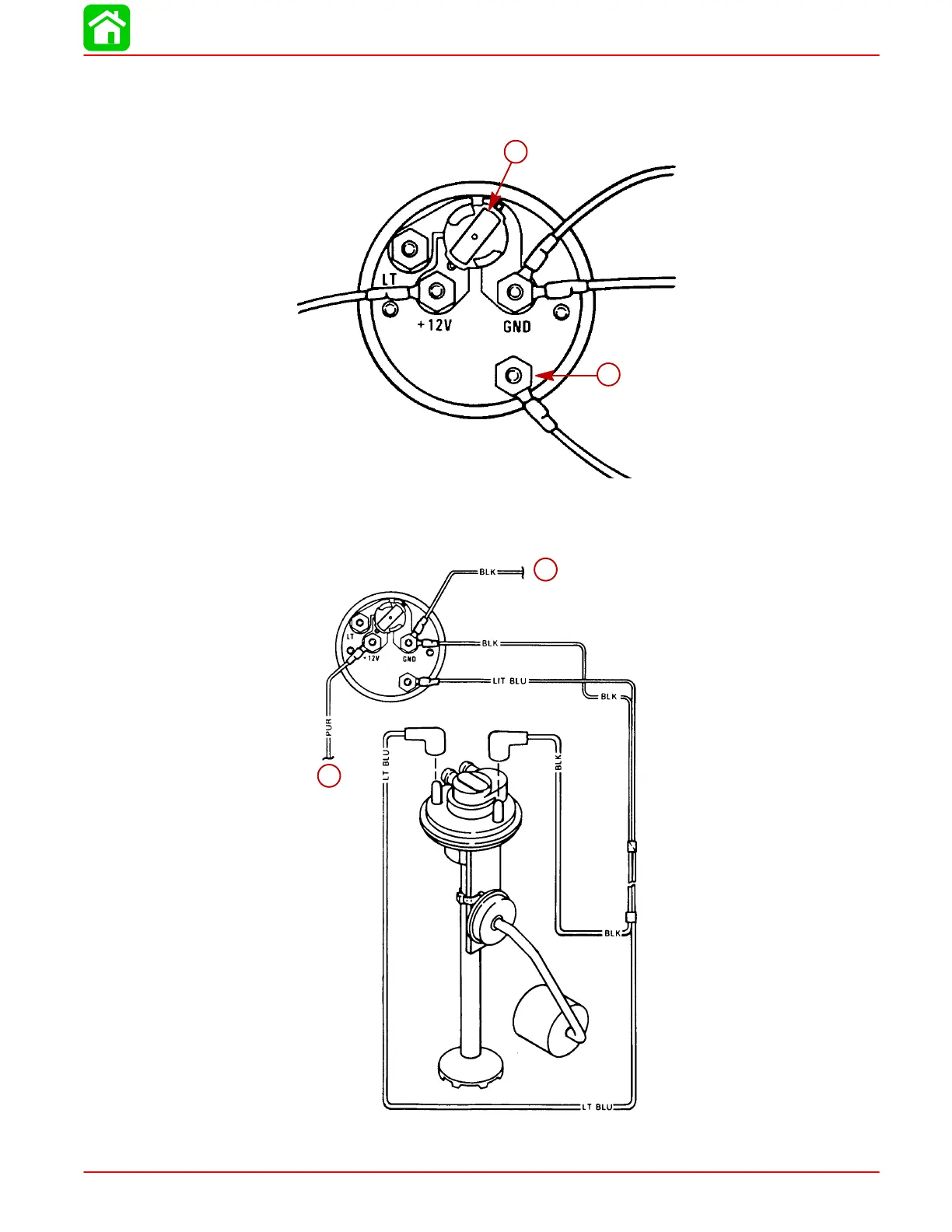

LIGHT BULB POSITION B
Use this position when instrument lighting is wired directly to the ignition key switch. (In-
strument lights are on when ignition key switch is turned on.)
51112
a
b
a-Position Light Bulb to the Unswitched Position
b-Sender
SENDER WIRING
51108
a
b
a
b
a-Connect to +12 Volt
b-Connect to NEGATIVE (–) Ground
