FUEL INJECTION
90-883728 JULY 2001 Page 3B-53
Vapor Separator (VST) Installation
1. Install ground lead between VST and air plenum.
2. Install 3 bolts securing VST to air plenum. Torque bolts to 140 lb. in. (16 Nm).

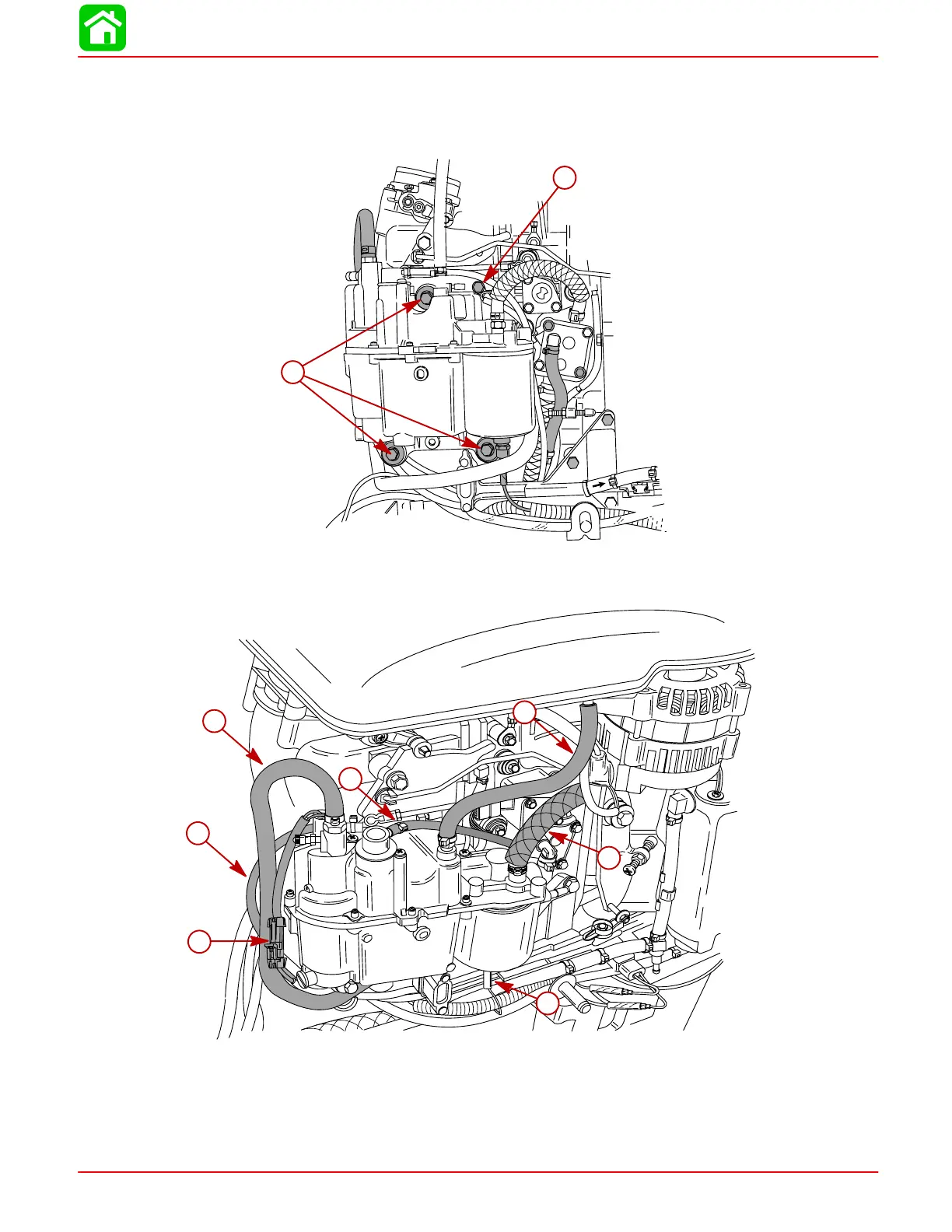

58896
a
b
a-VST Ground Lead b-Bolts [Torque to 140 lb. in. (16 Nm)]
3. Reconnect the following hoses and connectors:
58878
a
b
c
d
e
f
g
a-VST Vent Hose
b-Fuel Pressure Regulator
Vent Hose
c-VST Output Fuel Hose
d-VST Oil Input Hose
e-VST Electric Fuel Pump Harness
Connector
f-Water Sensor Bullet Connector
g-Fuel/Water Separator Input Fuel
Hose
