ATTACHMENTS / CONTROL LINKAGE
Page 7-8 90-883728 JULY 2001

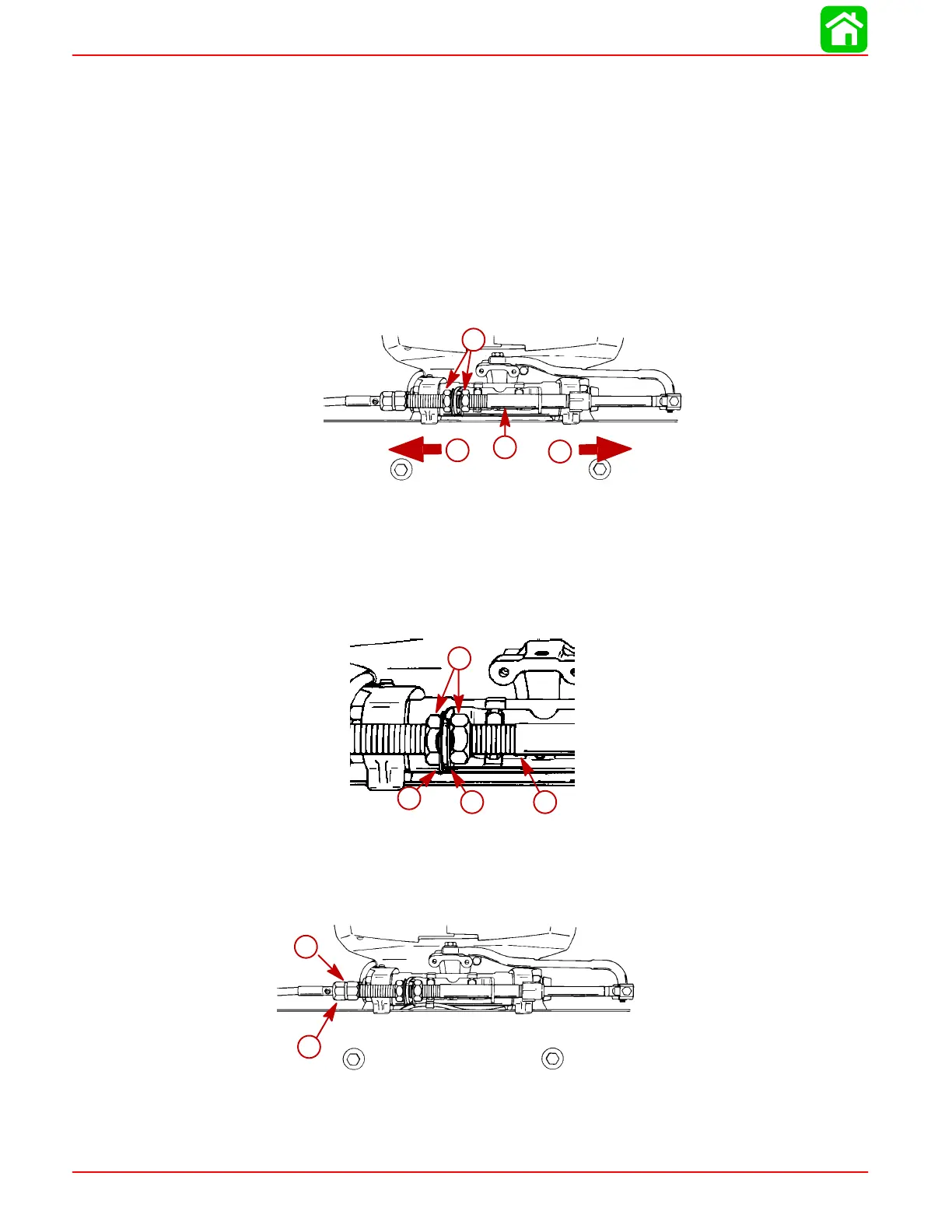

STEERING SYSTEM TENSION ADJUSTMENT
IMPORTANT: After this dual steering cable attachment kit is installed, there must
be proper tension in forward mounted steering cable tor this attachment kit to oper-
ate properly. Not enough tension will cause slack (or play) in steering system. Too
much tension will cause steering cables to bind. Perform the following steps to ad-
just for correct tension.
Loosen adjustment nuts and pull steering cable mounting tube (by hand) away from end
of steering cable (to remove slack in steering system). Tighten adjustment nuts against
mounting bracket and check system for slack (play.) If steering system is too tight, read-
just tube toward end of steering cable or, if too much slack (play) exists in system, readjust
tube away from end of steering cable. Tighten nuts against mounting bracket and read-
just, if necessary.
51887
b
a
c
d
a-Steering Cable Mounting Tube
b-Adjustment Nuts
c-Adjust Tube in This Direction to Remove Slack from Steering System
d-Adjust Tube in This Direction to Reduce Tension from Steering System
After steering system tension is adjusted correctly, tighten adjustment nuts against
mounting bracket, to a torque of 35 Ib. ft. (47.5 Nm) and bend a tab lock washer against
flat on each adjustment nut.
51887
ac
c
b
a-Steering Cable Mounting Tube
b-Adjustment Nuts; Torque to 35 lb. ft. (47.5 Nm)
c-Tab Lock Washer (Bend Against Flat on Each Adjustment Nut)
Tighten steering cable attaching nuts of each steering cable to a torque of 35 Ib. ft. (47.5
Nm).
51889
b
a
a-Cable Attaching Nut
b-“V” Groove
NOTE: Cable attaching nuts with a “V” groove around the outer circumference of the nut
are self locking and do not require locking sleeves.
To Next Page
