Mercury 150XRI User Manual

CHARGING & STARTING SYSTEM
90-883728 JULY 2001 Page 2B-33

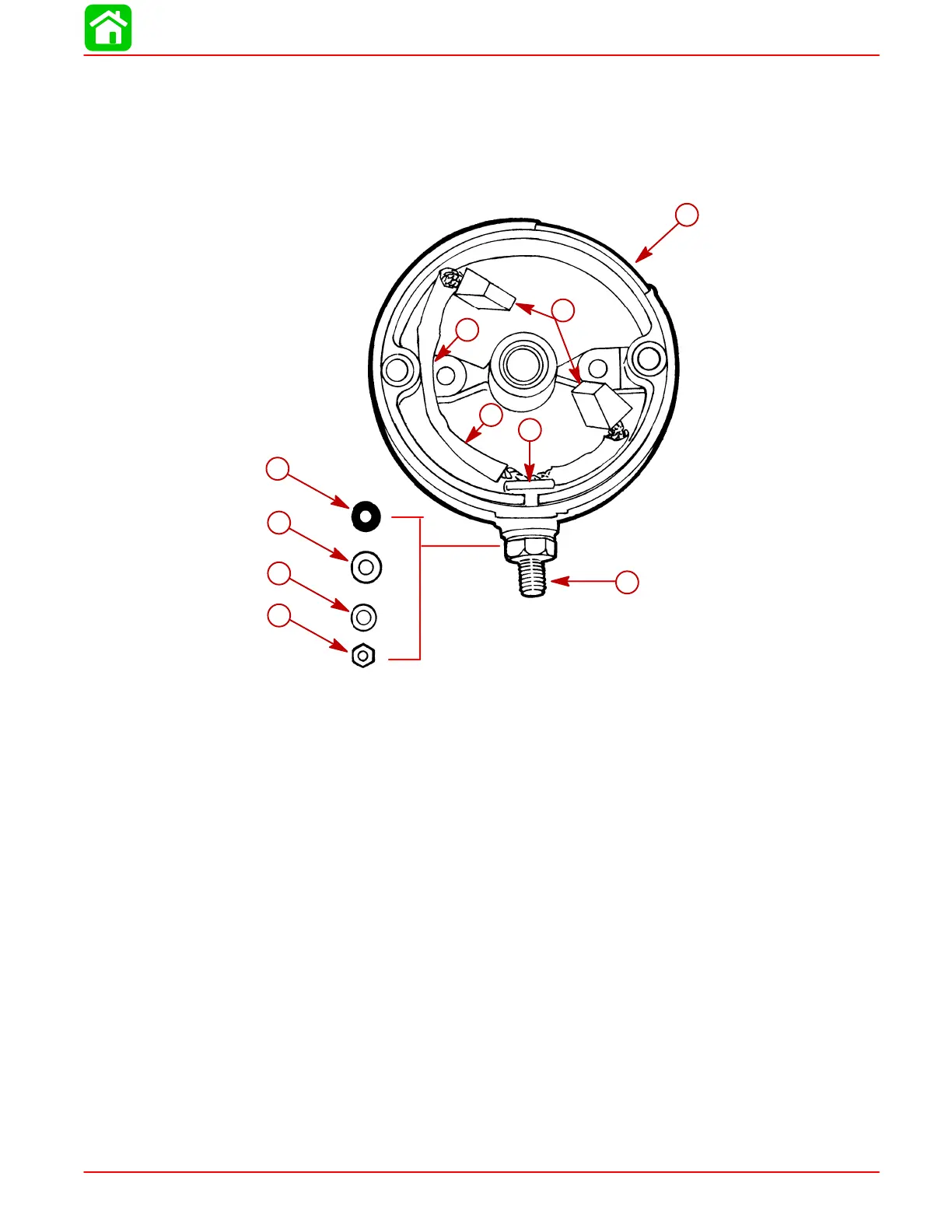

Starter Reassembly
1. If brushes were removed, replace as follows:
a. Install POSITIVE brushes (along with POSITIVE terminal) into commutator end
cap.
11660
a
c
b
d
h
i
e
f
g
d
a-End Cap
b-Positive Brushes
c-Positive Terminal
d-Insulating Bushing
e-Washer
f-Split Washer
g-Hex Nut
h-Long Brush Lead
i-Push Lead into Slot
