OUTBOARD MOTOR INSTALLATION
Page 1D-8 90-883728 JULY 2001
Fuel Hose Connection
Fuel Hose Size – Minimum fuel line inside diameter (I.D.) is 5/16 in. (8mm), with separate
fuel line/fuel tank pickup for each engine.
Fasten remote fuel hose to fitting with hose clamp.
Oil Hose Connections
Connect the remote oil hoses to the engine hose connections as shown. Fasten hose con-
nections with sta-straps.
Speedometer Tubing Connection
This outboard has a speedometer water pick-up located in the leading edge of the gear
case. If you want to use this water pickup for the speedometer, connect the water tubing
as shown.
Water Pressure Tubing Connection
If the boat is equipped with a water pressure gauge, make the water connection to this
tubing as shown.

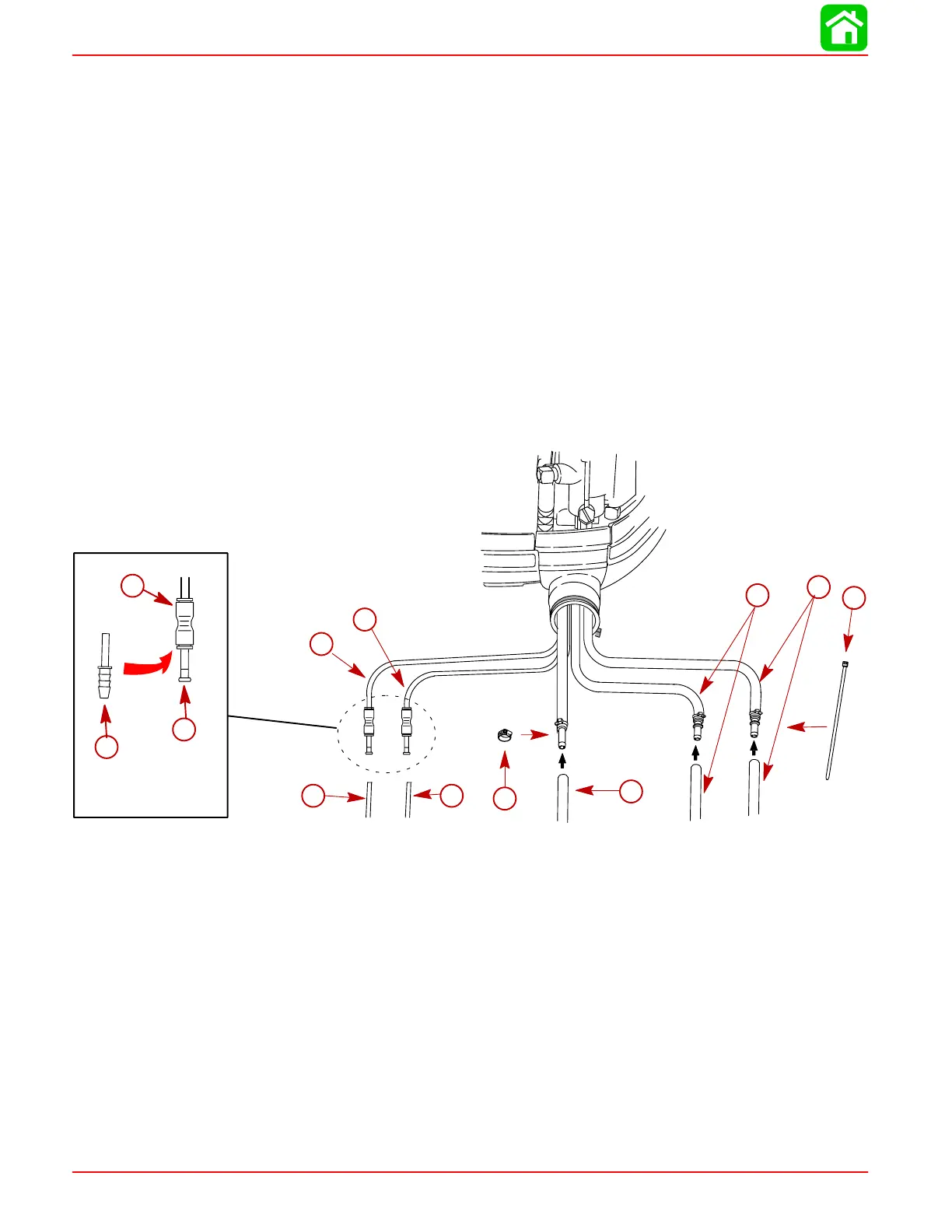

a
b
c
d
e
f
g
h
i
j
kl
a-Remote Fuel Hose
b-Hose Clamp – Secure Remote Fuel Hose
c-Oil Hoses with Blue Stripe - Secure With Sta-Strap
d-Oil Hoses without Blue Stripe - Secure With Sta-Strap
e-Sta-Strap (2) - Secure Oil Hoses
f-Speedometer Water Pickup Tubing (Black Color)
g-Water Pressure Tubing (Gray Color)
h-Coupler – Push In on End of Coupler to Disconnect Plug or Tubing
i-Plug – Remove when Making Coupler Connection
j-Barb Hose Fitting (2) Provided with Outboard – Install this fitting into Coupler, if
a Rubber Hose Connection is Required
k-Speedometer Hose – Insert the barb hose fitting (j) into Coupler and Connect
Hose
l-Water Pressure Tube – Insert into coupler, pull on tube to verify that it is locked
