CHARGING & ST
ARTING SYSTEM
90-883728 JUL
Y 2001
Page 2B-49

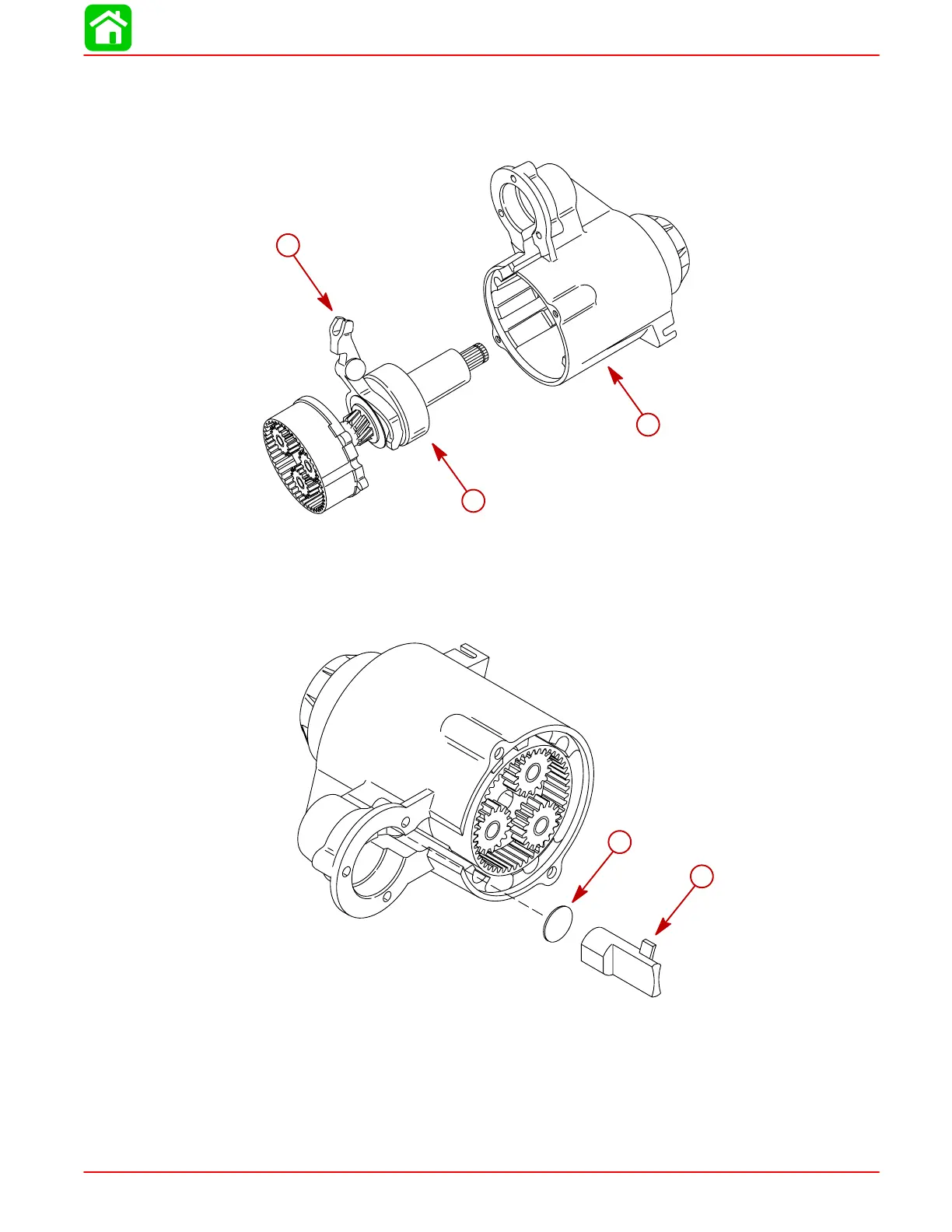

Reassembly (Solenoid Driven Bendix Starter)
1.
Install solenoid arm with planetary gear and clutch assembly into drive housing.
58438
a
b
c
a-
Solenoid Arm
b-
Planetary Gear and Clutch Assembly
c-
Drive Housing
2.
Install metal disc and plug into drive housing.
58433
a
b
a-
Metal Disc
b-
Plug
