FUEL INJECTION
90-883728 JULY 2001 Page 3B-55
Throttle Position Sensor Removal
NOTE: Vapor Separator has been removed for visual clarity.
1. Remove throttle position sensor (TPS) harness connector.
2. Remove sensor link rod.
3. Remove 3 screws securing sensor.

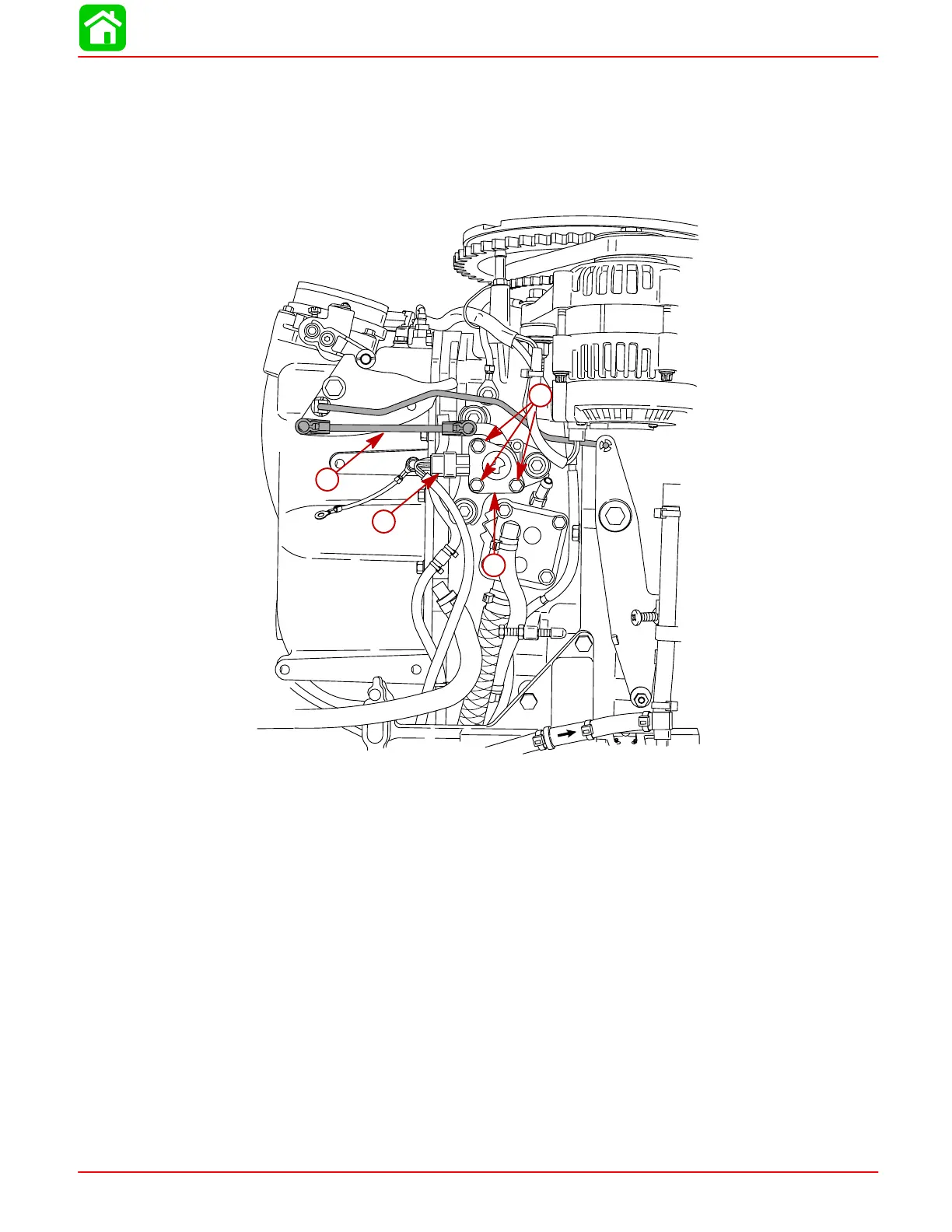

58871
a
b
c
d
a-Sensor Harness Connector
b-Sensor Link Rod
c-Retaining Screws
d-Throttle Position Sensor
Throttle Position Sensor Installation
1. Secure sensor with 3 screws. Torque screws to 70 lb. in. (8.0 Nm).
2. Reconnect sensor harness.
3. Reconnect sensor link rod.
