GENERAL INFORMATION
Page 1C-12 90-883728 JULY 2001

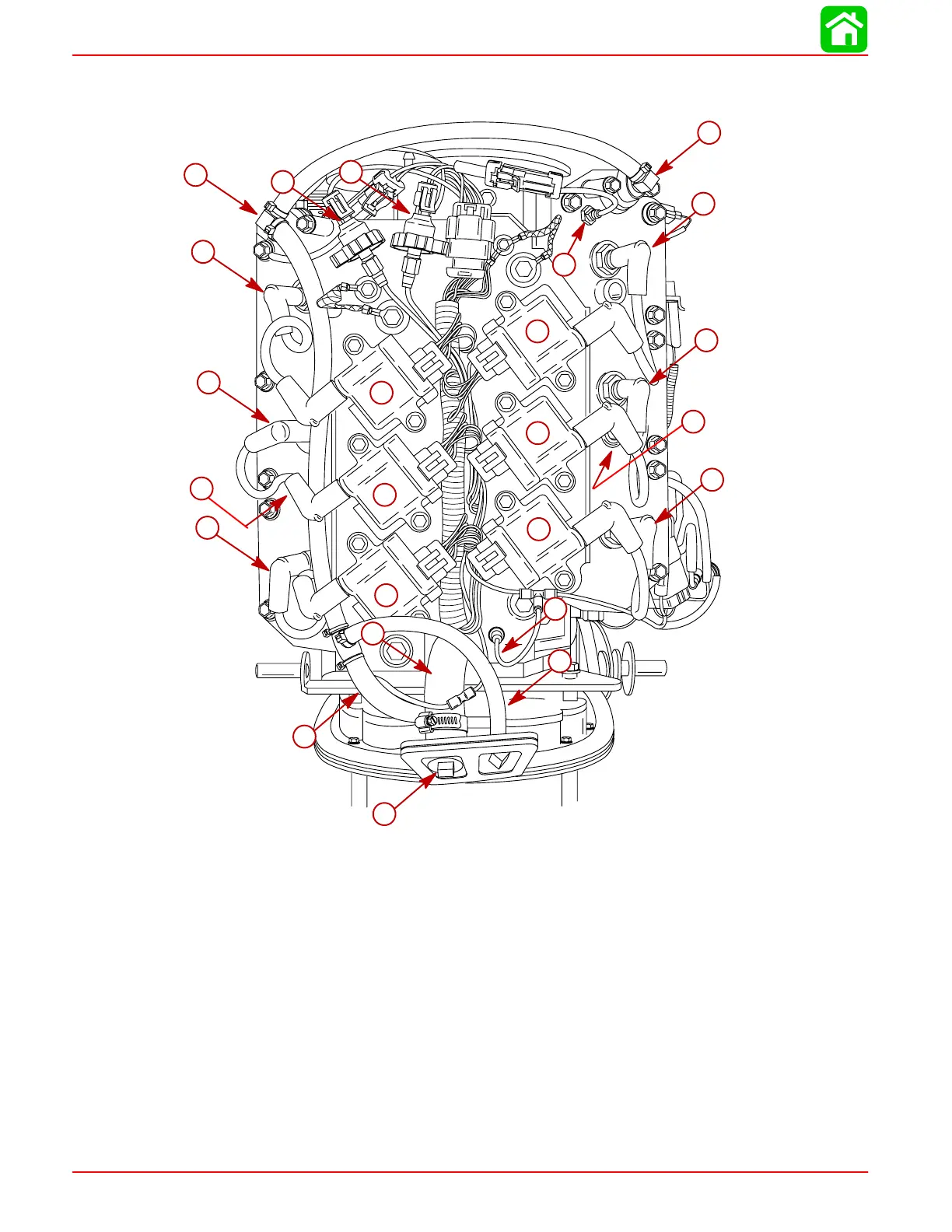

Model 150 XRI/175 XRI/200 XRI Powerhead Aft View
58773
1
13
14
12
15
16
17
2
4
5
6
7
3
18
19
8
9
10
11
20
21
22
23
24
1-Port Thermostat [143°F (61.7°C)]
2-Speedometer Sensor (BLACK)
3-Water Pressure Sensor
4-Starboard Thermostat [143°F (61.7°C)]
5-Temperature Sensor (Engine Overheat)
6-#1 Cylinder
7-#3 Cylinder
8-Starboard Detonation Sensor (200 EFI Only)
9-#5 Cylinder
10 - Tell–Tale Hose
11 - Water Pressure Gauge Hose
12 - #5 Ignition Coil
13 - #3 Ignition Coil
14 - #1 Ignition Coil
15 - #2 Ignition Coil
16 - #4 Ignition Coil
17 - #6 Ignition Coil
18 - Cylinder Block Flush Hose
19 - Flush Adaptor Plug
20 - Thermostat Outlet Hose to Adaptor Plate
21 - #6 Cylinder
22 - Port Detonation Sensor (200 EFI Only)
23 - #4 Cylinder
24 - #2 Cylinder
