Troll Control

BASIC OPERATION

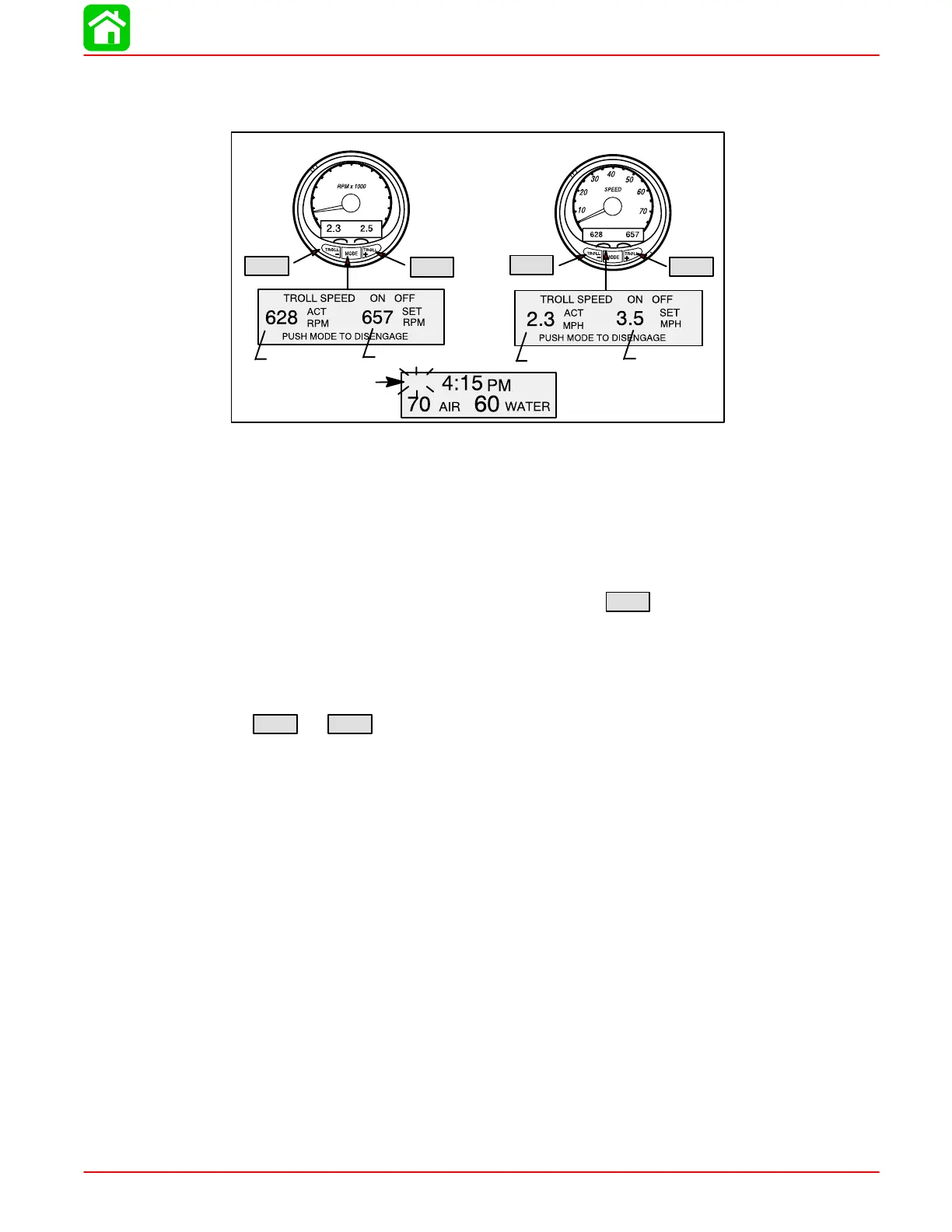

TROLL

–

TROLL

–

Speedometer

Tachometer

Actual Speed

Set Speed

Actual Speed

Set Speed

With troll control you can maintain a trolling speed of 550 to1000 rpm without using the

throttle.

NOTE: Troll control may not be available on all engine models.

NOTE: Troll control min/max range may change depending on engine type.

You can set the troll control by using either the tachometer or speedometer. Tachometer

will set the speed in RPM and speedometer will set the speed in MPH, Kph or KN.

You can shut off troll control anytime by pushing the

MODE

button when in the troll display

screen or by moving the throttle.

If you have troll control set at a desired speed and then you shut off the troll control, the system

remembers the set speed and will return to that speed when re-engaged.

The display screen will revert back to the previous screen after 10 seconds of no activity. Push

the

TROLL

–

button to reactivate the display screen.

When the troll control is engaged and you are out of the troll control screen, a flashing signal

“TR” (a) will appear in the upper left corner of the display to indicate troll control is still running.
