POWER TRIM
90-883728 JULY 2001 Page 5B-31

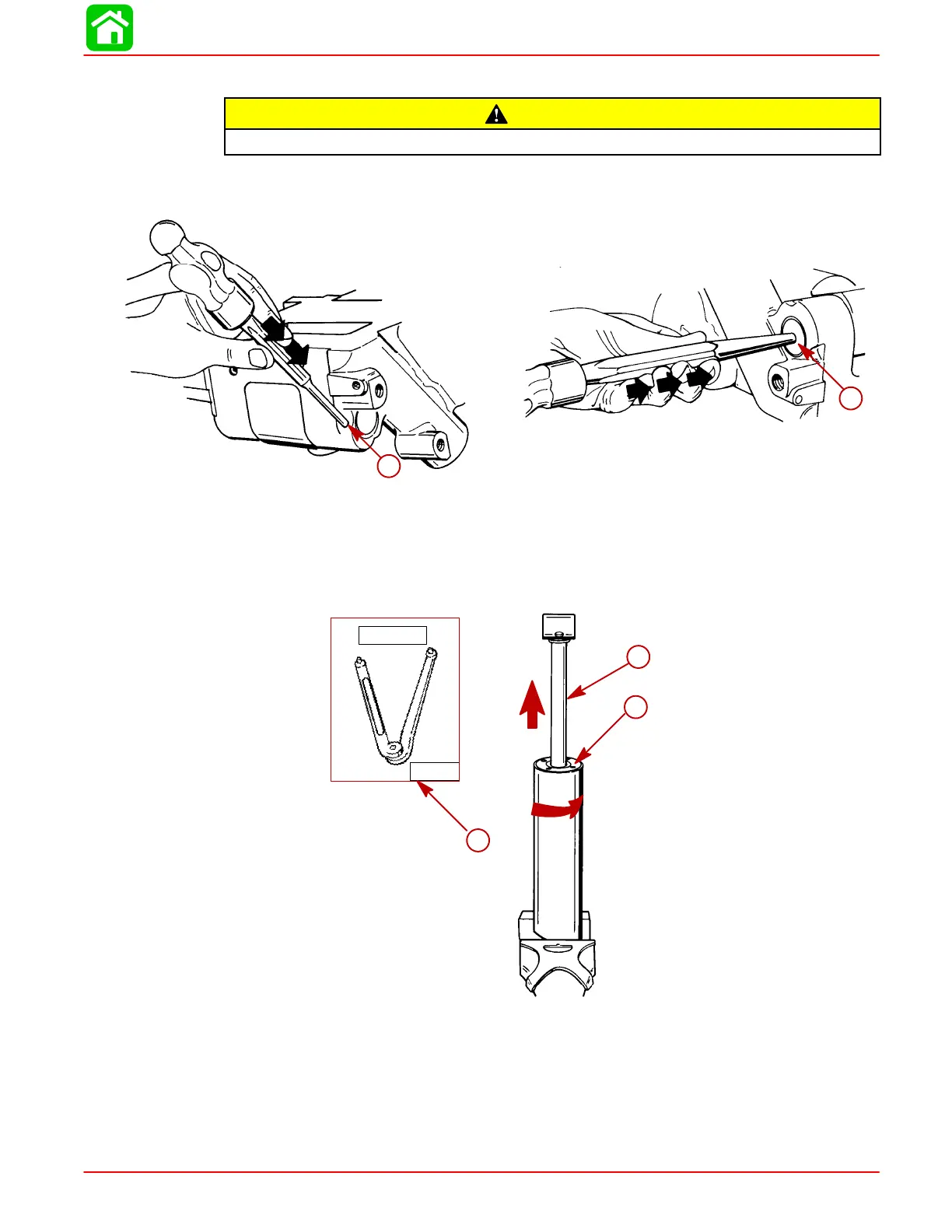

TILT RAM REMOVAL - POWER TRIM SYSTEM REMOVED FROM OUTBOARD
CAUTION
Insure trim system is depressurized prior to tilt ram removal.
1. Remove cross pin.
2. Remove lower swivel pin.
51355
a
51366
a
b
a
a-Cross Pin (Remove as shown)
b-Lower Swivel Pin (Remove as shown)
Disassembly
1. Secure tilt ram in a soft jawed vise. Remove tilt rod and cap.
51364
51337
91-74951
a
c
b
a
b
c
a-Cap (Turn Counterclockwise to Remove)
b-Spanner Wrench (91-74951)
c-Tilt Rod - Pull to Remove
