POWER TRIM
Page 5B-18 90-883728 JULY 2001
Power Trim Assembly Removal and Installation
Removal

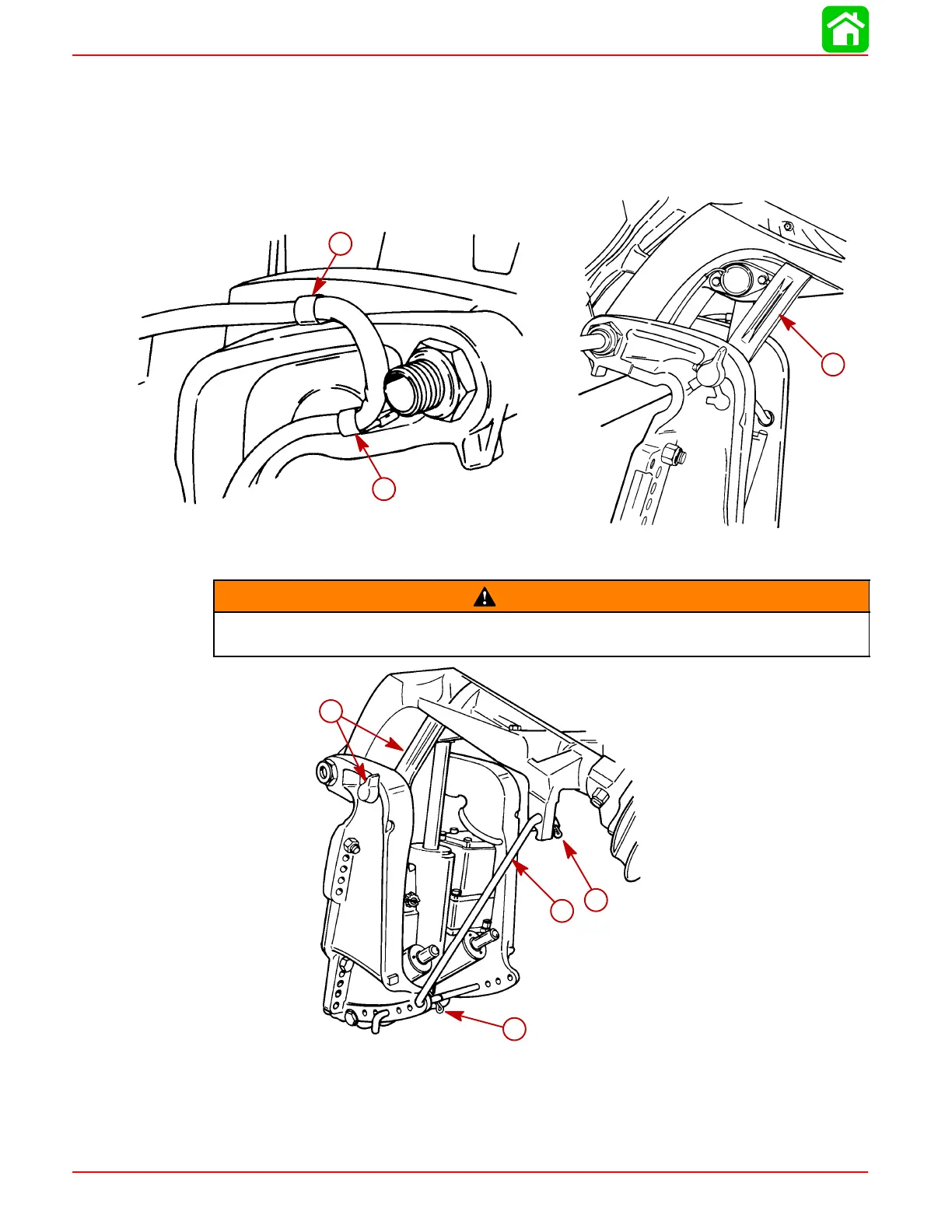

1. Remove clamps on transom bracket to free power trim wiring.
2. Raise outboard to full “Up” position and engage tilt lock lever.
50605
a
b
51377
a
a
a
a-Clamps
b-Tilt Lock Lever
WARNING
Failure to support outboard as shown could result in personal injury and/or dam-
age to outboard or boat.
51346
b
c
c
b
c
c
a
a-Tilt Lock Lever
b-Support Tool
c-Retaining Clips
IMPORTANT: Support outboard as shown above to prevent engine from tipping
when power trim retaining pin is removed.
