Section 4 - Setup and Calibrations
90-8M0109374 eng JUNE 2016 Page 91

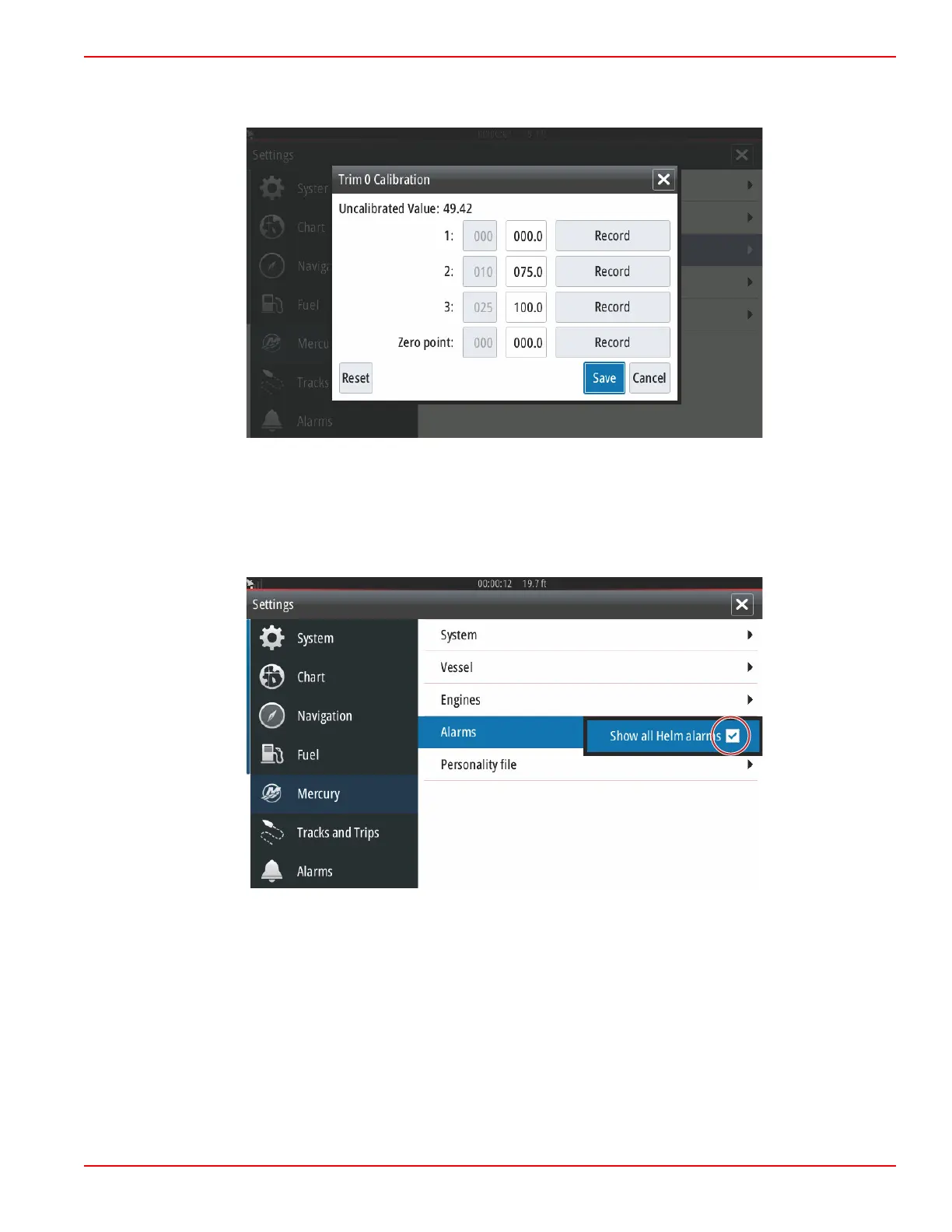

To calibrate the trim, trim the engines all the way in and record the reading—row 1, this will be the trim actual 0%. Trim the
engines all the way out, record the reading—row 3, this will be the trim actual 100%. The Zero point is when the engines are
positioned parallel with the bottom of the vessel, record that position. Select Save to keep the new trim calibrated data.
Alarms
Alarms Setting
The Show all Helm alarms option can be checked to display all alarms on all VesselView screens. Unchecking the option will
result in loss of notifications on additional VesselViews involving multiple device installations.
