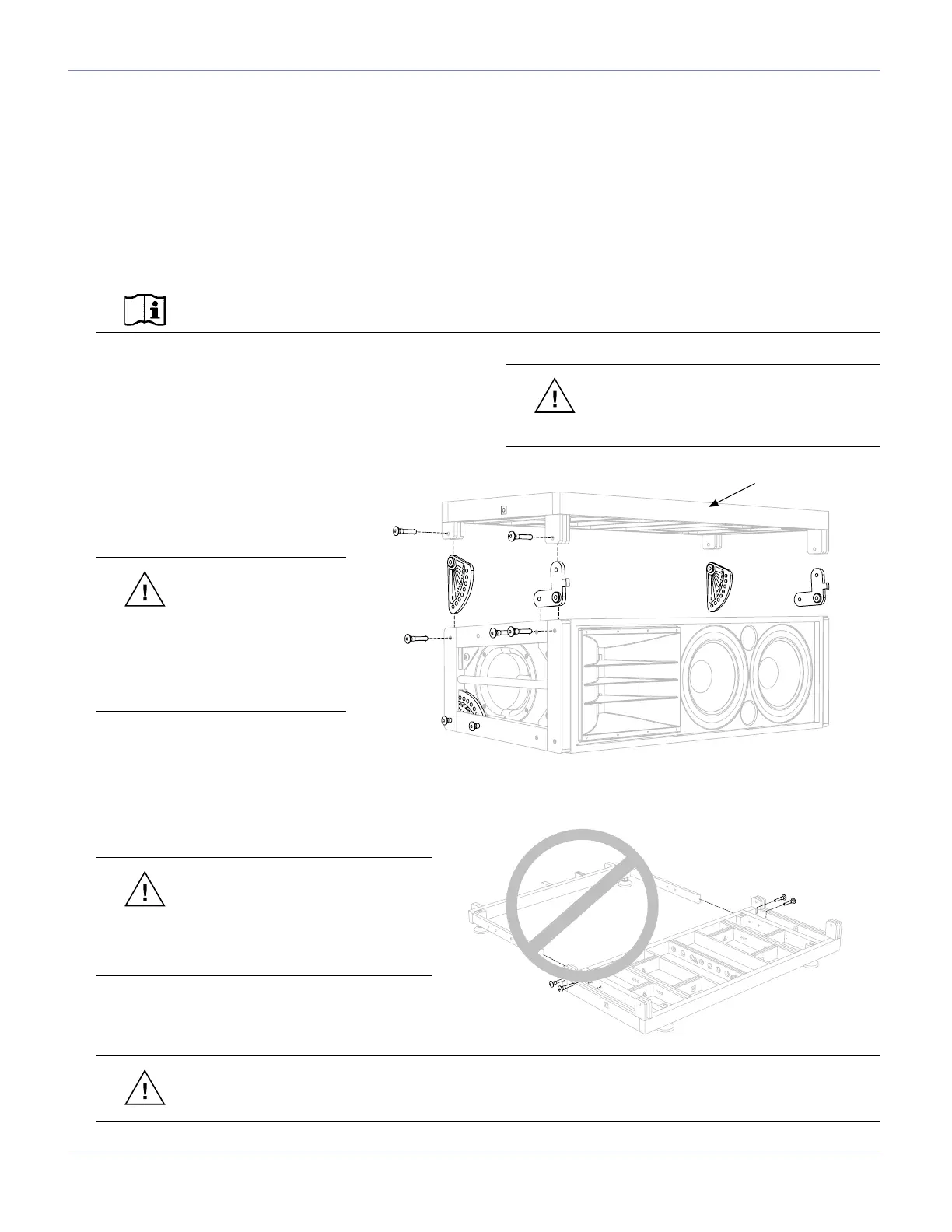

USING THE MG-1D GRID TO FLY M2D AND M2D-SUB LOUDSPEAKERS
For smaller M2D arrays, the MG-1D multipurpose grid can be used as the primary rigging frame. If greater exibility
with up or down tilt of the entire array is required, the MG-2D multipurpose grid should be used.
Install the M2D CamLink (A) as shown between the MG-1D multipurpose grid (C) and the rst cabinet. Install the M2D
FrontLinks (B) as shown, and secure all with three QRPs. Note that MG-1D grid is ipped 180 degrees from its normal
position (leveling feet extenders are pointing downward).
NOTE: For large M2D arrays with or without M2D-Subs, use the MG-2D multipurpose grid.
CAUTION: The leveling feet must always be detached from the MG-1D multipurpose grid before ying
a system. Unscrew the entire assembly, including the threaded leg, and remove completely.
CAUTION: When
ying an array from
the MG-1D multipurpose
grid, it must always be
supported only by the
pick-up holes from the main
frame’s center bracket.
CAUTION: Never use the MG-1D
multipurpose grid for ground-stacking
M2D or M2D-Subs.
Maximum Load:
7:1 safety factor: Up to 7 M2Ds or
the equivalent weight of M2Ds and/
or M2D-Subs or other products
specied for use with this grid.
5:1 safety factor: Up to 10 M2Ds
or the equivalent weight of M2Ds
and/or M2D-Subs or other products
specied for use with this grid.
CAUTION: Do not use the MG-1D
extension frame with M2D and/or
M2D-Sub cabinets. The MG-1D extension
frame is rated only for use with M1D and
M1D-Sub loudspeakers.
A
B
C

Meyer Sound M1D Specifications

Acoustical

operating frequency range	32 Hz - 180 Hz
frequency response	35 Hz - 160 Hz ±4 dB
phase response	50 Hz - 120 Hz ±45°
maximum peak SPL	130 dB
dynamic range	>110 dB

Coverage

horizontal coverage	360°
vertical coverage	Varies, depending on array length and configuration

Transducers

low frequency transducer	Two 10" cone drivers with neodymium magnets
nominal impedance	4 Ω
voice coil size	2"
power-handling capability	400 W (AES)

Audio Input

input type	Differential, electronically balanced
maximum common mode range	±15 V DC
input impedance	10 kΩ differential between pins 2 and 3

Amplifiers

amplifier type	Two-channel complementary MOSFET output stages (class AB/bridged)
output power	450 W total
THD, IM, TIM	<.02 %
load capacity	4 Ω each channel

AC Power

safety agency rated operating range	100 - 240 V AC; 50/60 Hz
idle current	0.41 A rms (115 V AC); 0.33 A rms (230 V AC); 0.42 A rms (100 V AC)
max long-term continuous current (>10 sec)	3.2 A rms (115 V AC); 1.6 A rms (230 V AC); 3.7 A rms (100 V AC)
burst current (<1 sec)	5.0 A rms (115 V AC); 2.5 A rms (230 V AC); 5.8 A rms (100 V AC)
ultimate short-term peak current draw	17 A pk (115 V AC); 8.5 A pk (230 V AC); 20 A pk (100 V AC)
inrush current	15 A pk (115 V AC); 13 A pk (230 V AC); 15 A pk (100 V AC)

Weight and Dimensions

width	22.62" (575 mm)
height	13" (330 mm)
depth	17.50" (445 mm)
weight	70 lbs (31.75 kg)
