2. MG-1D MULTIPURPOSE GRID
The MG-1D multipurpose grid allows multiple M1D ultra-compact curvilinear array loudspeakers, M1D-Sub ultra-
compact subwoofers, M2D compact curvilinear array and M2D-Sub compact subwoofers to be own, and provides
ground support for M1D and M1D-Sub loudspeakers. The MG-1D grid can also serve as a transition grid. Refer to the
overview on page 5 for possible congurations. There are pick-up points in the center of the grid, and three pick-up
points on the extension frame.
List of Contents: MG-1D Multipurpose Grid Kit (Part 40.115.100.01)
List of Contents: MG-1D Multipurpose Grid Kit (Part #40.115.100.01)
Qty Part Number Description
1 40.115.100.01 MG-1D Multipurpose Grid Assembly
2 61.115.112.01 M1D Grid Cam
10 134.020 5/16” x 1.25” Quick Release Pin (QRP)
6 124.074 Leveling Foot

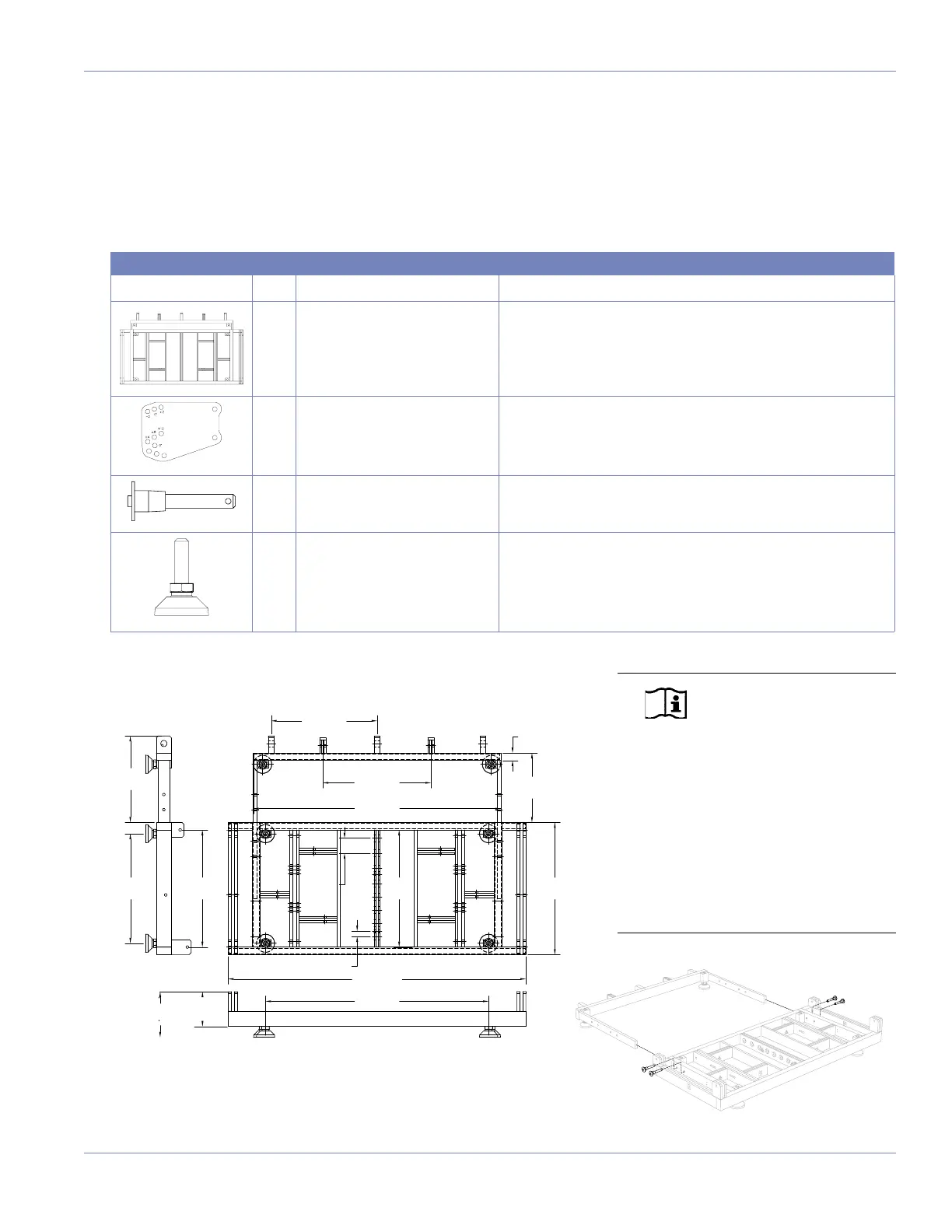

MG-1D Multipurpose Grid Dimensions
NOTE: To expand or
retract the MG-1D grid
extension frame, remove all four
QRPs. Once the extension frame
is extended to its outer position,
reinstall the QRPs, securing the
extension frame safely to the
MG-1D grid. If you are working
in conditions where weight is a
factor, you have the option to
reduce your overall load by 20
pounds (9.01 kg) by removing the
extension frame completely.
MG-1D Multipurpose Grid Weight: 93 lbs (42.18 kg)

































Meyer Sound M1D Specifications

Acoustical

operating frequency range	32 Hz - 180 Hz
frequency response	35 Hz - 160 Hz ±4 dB
phase response	50 Hz - 120 Hz ±45°
maximum peak SPL	130 dB
dynamic range	>110 dB

Coverage

horizontal coverage	360°
vertical coverage	Varies, depending on array length and configuration

Transducers

low frequency transducer	Two 10" cone drivers with neodymium magnets
nominal impedance	4 Ω
voice coil size	2"
power-handling capability	400 W (AES)

Audio Input

input type	Differential, electronically balanced
maximum common mode range	±15 V DC
input impedance	10 kΩ differential between pins 2 and 3

Amplifiers

amplifier type	Two-channel complementary MOSFET output stages (class AB/bridged)
output power	450 W total
THD, IM, TIM	<.02 %
load capacity	4 Ω each channel

AC Power

safety agency rated operating range	100 - 240 V AC; 50/60 Hz
idle current	0.41 A rms (115 V AC); 0.33 A rms (230 V AC); 0.42 A rms (100 V AC)
max long-term continuous current (>10 sec)	3.2 A rms (115 V AC); 1.6 A rms (230 V AC); 3.7 A rms (100 V AC)
burst current (<1 sec)	5.0 A rms (115 V AC); 2.5 A rms (230 V AC); 5.8 A rms (100 V AC)
ultimate short-term peak current draw	17 A pk (115 V AC); 8.5 A pk (230 V AC); 20 A pk (100 V AC)
inrush current	15 A pk (115 V AC); 13 A pk (230 V AC); 15 A pk (100 V AC)

Weight and Dimensions

width	22.62" (575 mm)
height	13" (330 mm)
depth	17.50" (445 mm)
weight	70 lbs (31.75 kg)
