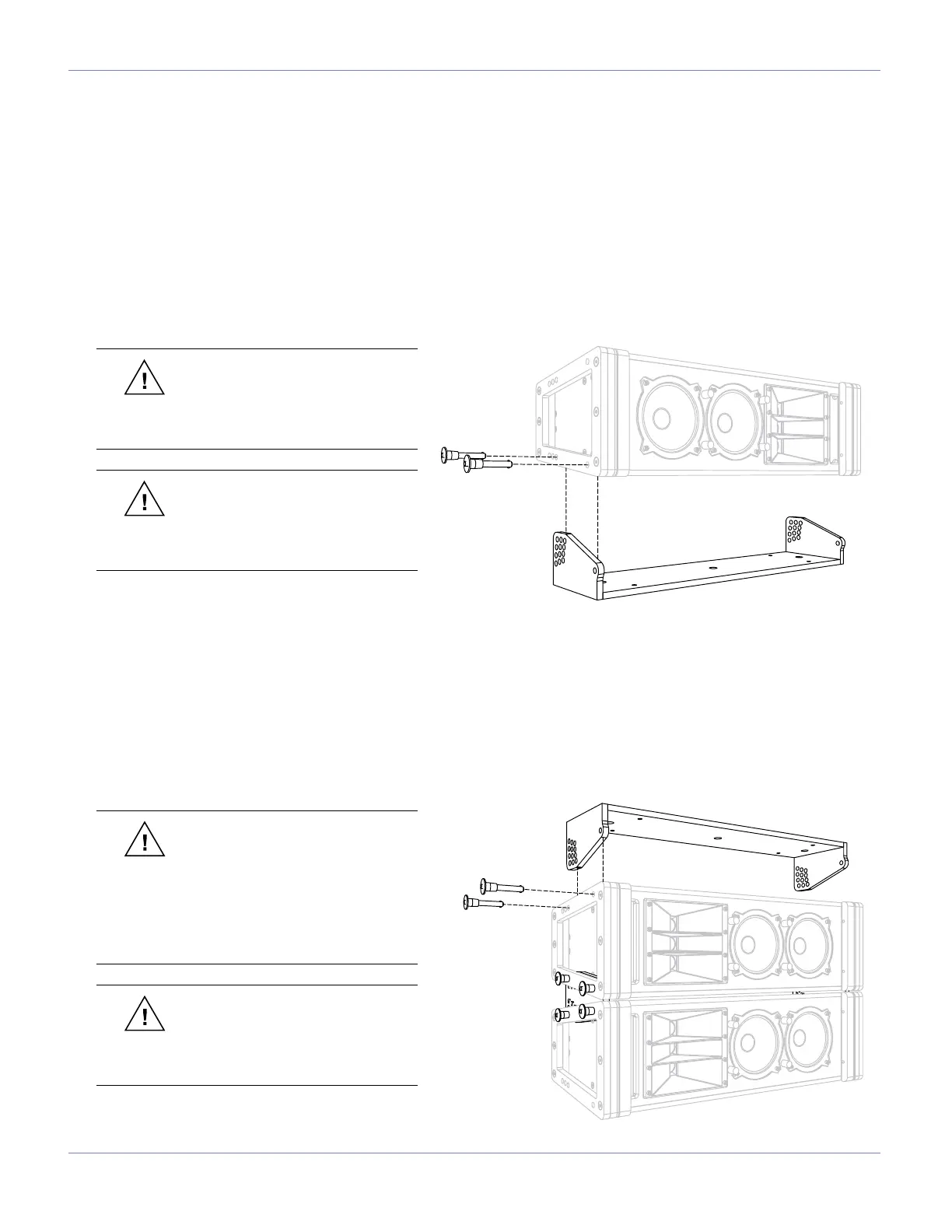

MUB-1D MULTIPURPOSE U-BRACKET IN FLOOR- OR CEILING-MOUNTED CONFIGURATION
In this conguration the MUB-1D U-bracket is used to mount and aim a single M1D on a oor, ceiling or other at
surface. It provides from +10° to -12° of tilt in 2-degree increments between the MUB-1D U-bracket’s mounting plane
and the M1D loudspeaker. For safety reasons, it is not recommended to use more than one M1D in a ceiling-mount
conguration.
First install the MUB-1D multipurpose U-bracket on the oor, ceiling or other at surface. Make sure to use mounting
hardware that has been rated to meet or exceed the weight being hung and is appropriate for the construction of the
mounting surface. Install the M1D loudspeaker into the MUB-1D U-bracket and secure the M1D with the quick release
pins (QRPs) at the predetermined angle (see page 20 for more information on setting tilt angles).
WARNING: Always use mounting
hardware that is appropriate for
the construction of the surface where
the MUB-1D U-bracket will be installed.
WARNING: Always use mount-
ing and rigging hardware that has
been rated to meet or exceed the weight
being hung.
MUB-1D MULTIPURPOSE U-BRACKET IN FLOWN CONFIGURATION
In own congurations, the MUB-1D U-bracket provides from +12° to -10° of tilt in 2-degree increments between the
MUB-1D and the rst M1D loudspeaker.
Install the MUB-1D as shown onto the rst M1D of the array and secure the M1D with the quick release pins at the
predetermined angle (see page 20 for more information on setting tilt angles). The MUB-1D U-bracket is only attached
directly to the rst M1D loudspeaker in the array. Use the M1D links with the QRPs to complete the rest of the array as
shown.
WARNING: When ying an array
from the MUB-1D U-bracket,
it must always be supported by the
pick-up holes whose load ratings meet
or exceed the weight of the array.
See page 21 for more information on
Maximum Load Ratings.
WARNING: Always use mounting
and rigging hardware that has
been rated to meet or exceed the weight
being hung.

Meyer Sound M1D Specifications

Acoustical

operating frequency range	32 Hz - 180 Hz
frequency response	35 Hz - 160 Hz ±4 dB
phase response	50 Hz - 120 Hz ±45°
maximum peak SPL	130 dB
dynamic range	>110 dB

Coverage

horizontal coverage	360°
vertical coverage	Varies, depending on array length and configuration

Transducers

low frequency transducer	Two 10" cone drivers with neodymium magnets
nominal impedance	4 Ω
voice coil size	2"
power-handling capability	400 W (AES)

Audio Input

input type	Differential, electronically balanced
maximum common mode range	±15 V DC
input impedance	10 kΩ differential between pins 2 and 3

Amplifiers

amplifier type	Two-channel complementary MOSFET output stages (class AB/bridged)
output power	450 W total
THD, IM, TIM	<.02 %
load capacity	4 Ω each channel

AC Power

safety agency rated operating range	100 - 240 V AC; 50/60 Hz
idle current	0.41 A rms (115 V AC); 0.33 A rms (230 V AC); 0.42 A rms (100 V AC)
max long-term continuous current (>10 sec)	3.2 A rms (115 V AC); 1.6 A rms (230 V AC); 3.7 A rms (100 V AC)
burst current (<1 sec)	5.0 A rms (115 V AC); 2.5 A rms (230 V AC); 5.8 A rms (100 V AC)
ultimate short-term peak current draw	17 A pk (115 V AC); 8.5 A pk (230 V AC); 20 A pk (100 V AC)
inrush current	15 A pk (115 V AC); 13 A pk (230 V AC); 15 A pk (100 V AC)

Weight and Dimensions

width	22.62" (575 mm)
height	13" (330 mm)
depth	17.50" (445 mm)
weight	70 lbs (31.75 kg)
