Meyer Sound M1D User Manual

M1D Rigging Grids and Accessories
PN: 05.115.001.01 B
Page 20 of 24
Meyer Sound Laboratories Inc.
www.meyersound.com
T: +1 510 486.1166
F: +1 510 486.8356
M1D Rigging Grids and Accessories
PN: 05.115.001.01 B
Page 21 of 24
Meyer Sound Laboratories Inc.
www.meyersound.com
T: +1 510 486.1166
F: +1 510 486.8356

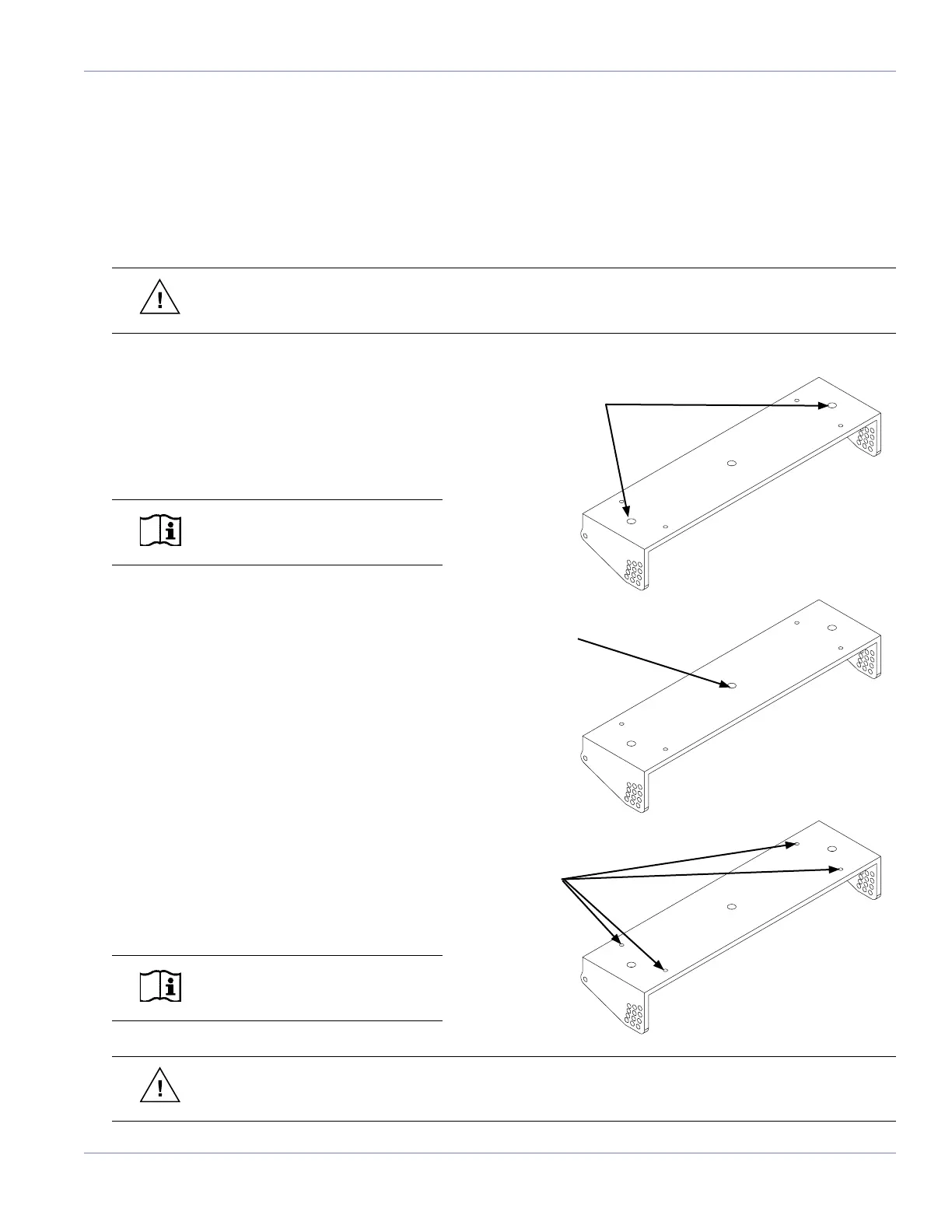

Outer 1/2” Holes
Center 1/2” Hole
1/4” Holes
LOAD RATINGS
Multiple holes are provided in the top surface of the MUB-1D U-bracket that accommodate a variety of hardware that
can be used to suspend the device or secure it to a surface.
Please note that each of the MUB-1D U-bracket’s mounting holes or sets of holes have individual load ratings. These
are shown below.
WARNING: When ying an array from the MUB-1D U-bracket, it must always be supported by pick-up
holes whose ratings meet or exceed the weight of the array.
Maximum Load Ratings:
Two Outer 1/2” Holes:
7:1 safety factor: Up to 10 M1Ds (320 lbs, 145 kg)
5:1 safety factor: Up to 14 M1Ds (448 lbs, 203 kg)
NOTE: Load evenly distributed on
the two points.
One Center 1/2” Hole:
7:1 safety factor: Not rated
5:1 safety factor: 1 M1D (31 lbs, 14 kg)
Four 1/4” Holes:
7:1 safety factor: Up to 3 M1Ds (96 lbs, 44 kg)
5:1 safety factor: Up to 4 M1Ds (130 lbs, 59 kg)
NOTE: Load evenly distributed on
all four points.
WARNING: Always use mounting and rigging hardware that has been rated to meet or exceed the
weight of the loudspeakers being hung.

Meyer Sound M1D Specifications

Acoustical

operating frequency range	32 Hz - 180 Hz
frequency response	35 Hz - 160 Hz ±4 dB
phase response	50 Hz - 120 Hz ±45°
maximum peak SPL	130 dB
dynamic range	>110 dB

Coverage

horizontal coverage	360°
vertical coverage	Varies, depending on array length and configuration

Transducers

low frequency transducer	Two 10" cone drivers with neodymium magnets
nominal impedance	4 Ω
voice coil size	2"
power-handling capability	400 W (AES)

Audio Input

input type	Differential, electronically balanced
maximum common mode range	±15 V DC
input impedance	10 kΩ differential between pins 2 and 3

Amplifiers

amplifier type	Two-channel complementary MOSFET output stages (class AB/bridged)
output power	450 W total
THD, IM, TIM	<.02 %
load capacity	4 Ω each channel

AC Power

safety agency rated operating range	100 - 240 V AC; 50/60 Hz
idle current	0.41 A rms (115 V AC); 0.33 A rms (230 V AC); 0.42 A rms (100 V AC)
max long-term continuous current (>10 sec)	3.2 A rms (115 V AC); 1.6 A rms (230 V AC); 3.7 A rms (100 V AC)
burst current (<1 sec)	5.0 A rms (115 V AC); 2.5 A rms (230 V AC); 5.8 A rms (100 V AC)
ultimate short-term peak current draw	17 A pk (115 V AC); 8.5 A pk (230 V AC); 20 A pk (100 V AC)
inrush current	15 A pk (115 V AC); 13 A pk (230 V AC); 15 A pk (100 V AC)

Weight and Dimensions

width	22.62" (575 mm)
height	13" (330 mm)
depth	17.50" (445 mm)
weight	70 lbs (31.75 kg)
