Midea MGC-F16W/SN1 User Manual

Specification MCAC-TSM-2008-02
16 Installation

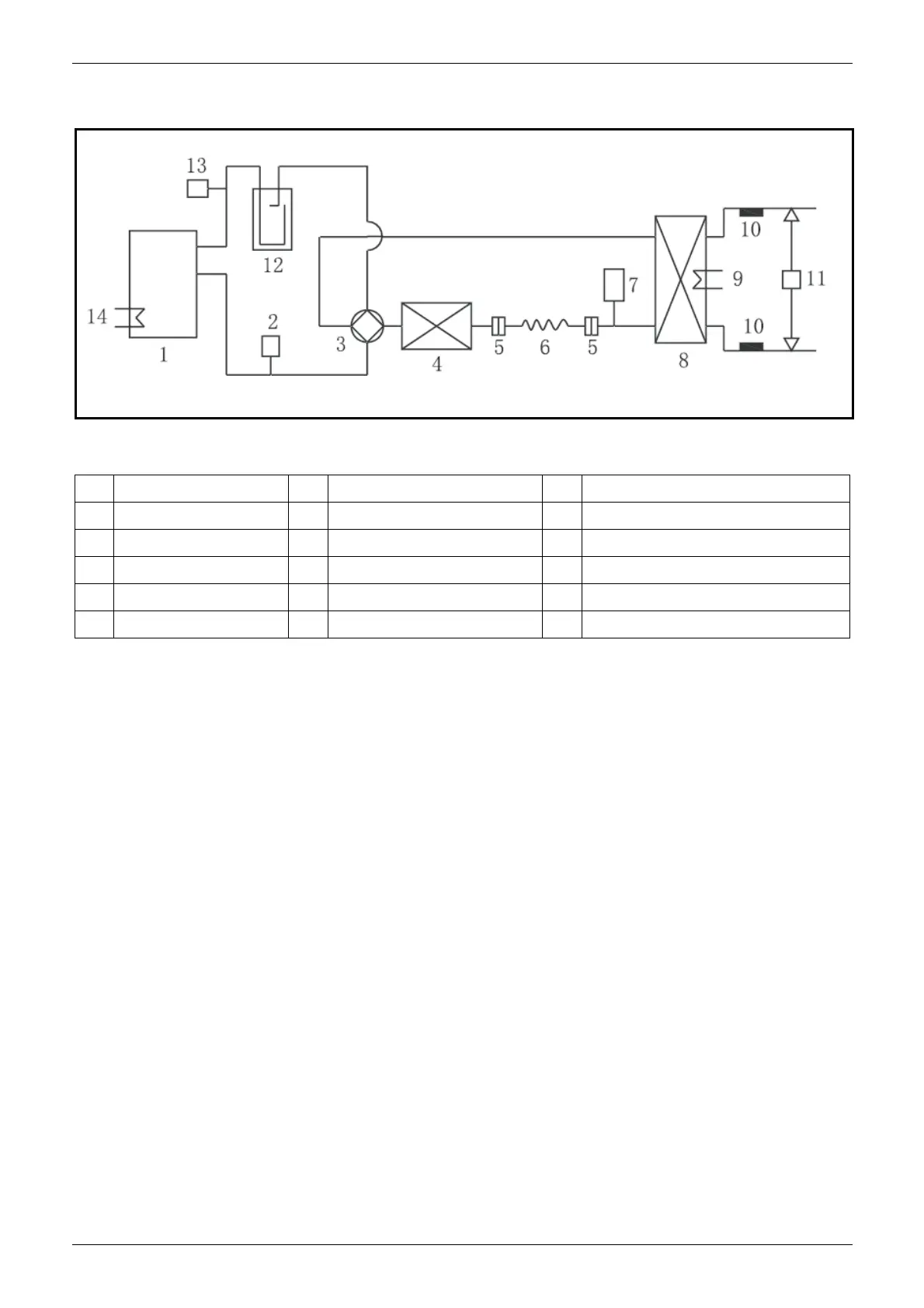

4. Piping Diagram
Remark:
No Name No Name No Name
1 Compressor 6 Capillary 11 Water differential pressure switch
2 High pressure switch 7 Liquid receiver 12 Accumulator
3 4-way valve 8 Plate heat exchanger 13 Low pressure switch
4 Condenser 9 Defrost heater 14 Crankcase heater
5 Filter 10 Water temperature sensor

Midea MGC-F16W/SN1 Specifications

General

Brand	Midea
Model	MGC-F16W/SN1
Category	Air Conditioner
Language	English
