Technical Information

222

G 1xxx/G 2xxx

4 Service

4.1 Fascia Panel Removal (Touchtronic/Novotronic/Navitronic)

1. Open the door.

2. Remove the retaining screws (Figure 100-1, Item 1).

3. Remove the fascia panel.

4. Pull off the switch buttons and selector knob (if applicable).

5. Disconnect the plug connection to the main electronic module.

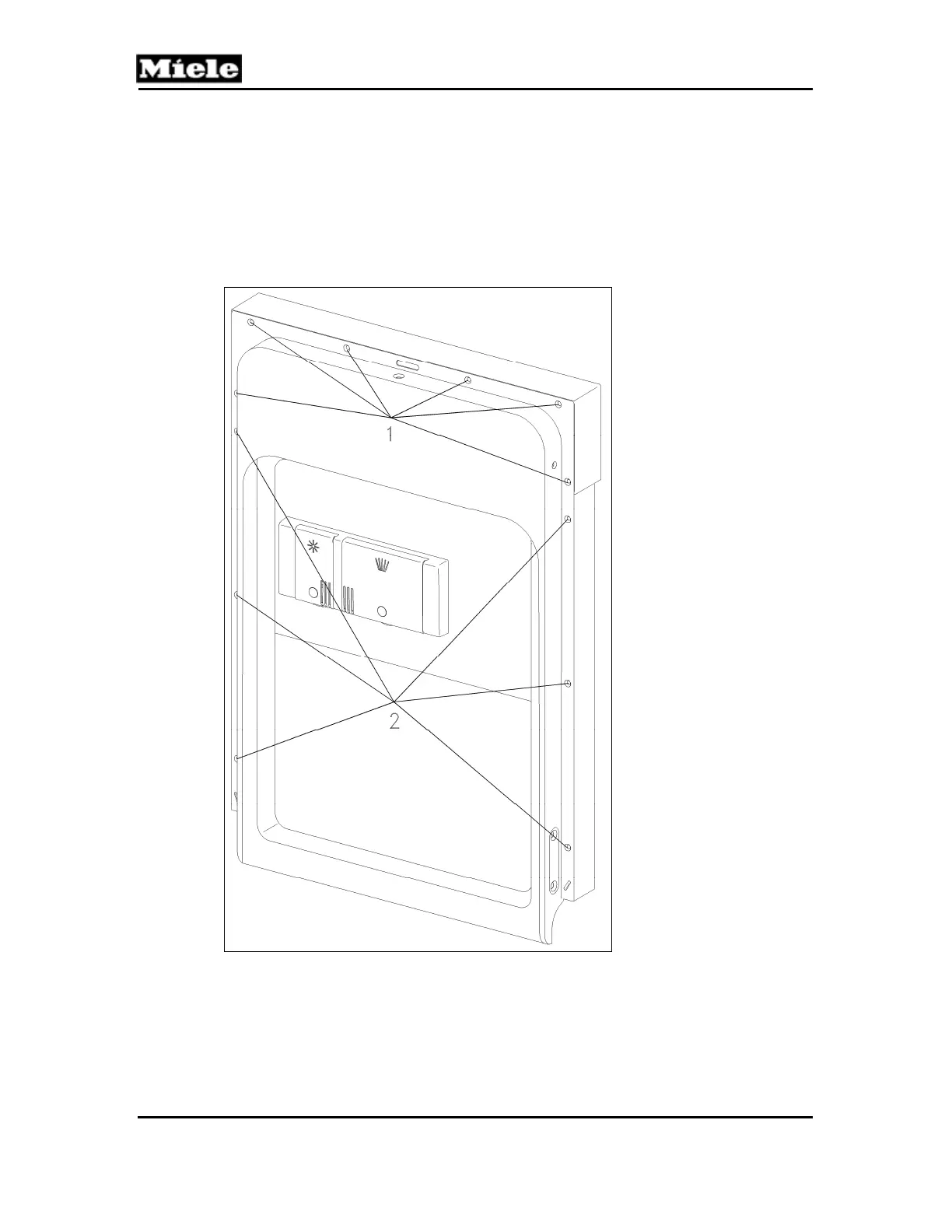

Figure 100-1: Screws Securing the Fascia Panel (Touchtronic/Novotronic/Navitronic)

To re-install, first install the fascia panel and screw it into position, then

restore the switch buttons and knob.
