Technical Information

G 1xxx/G 2xxx

4 Service

4.1 Side Panel Removal

1. Remove the appropriate retaining screws (Figure 010-1, Item 1).

2. Use needlenose pliers to press in the retainer on the corner piece (Figure

010-1, Item 2).

3. Remove the side panel.

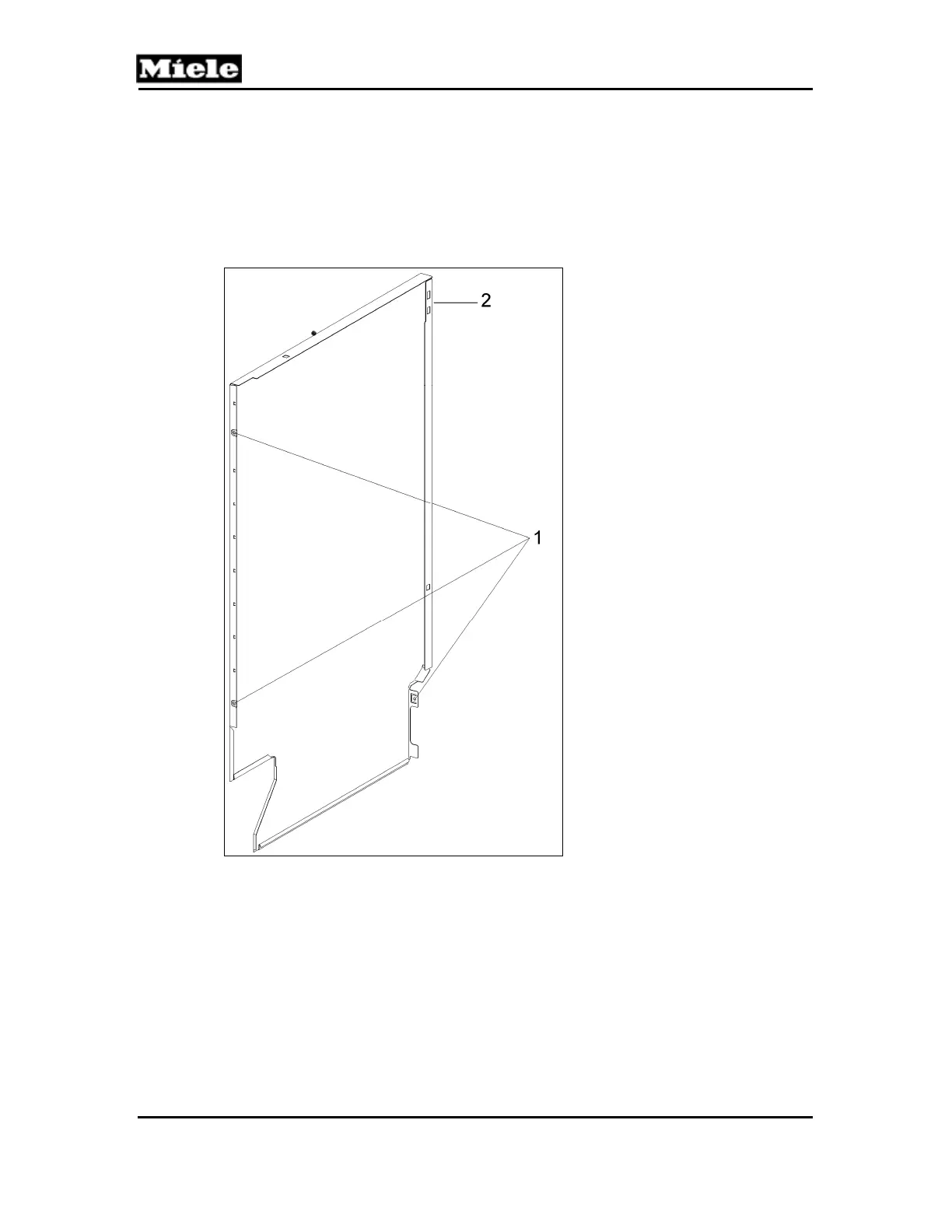

Figure 010-1: Side Panel Removal
