Technical Information

G 1xxx/G 2xxx

3.4 Foreign Object in Drain System

Symptom:

The drain pump or the non-return valve is blocked by a foreign object.

Cause:

Dishes were not, or were inadequately, cleaned.

Remedy:

Install the ring for the microfine filter, mat. no. 5672961 (refer to Figure 050-16).

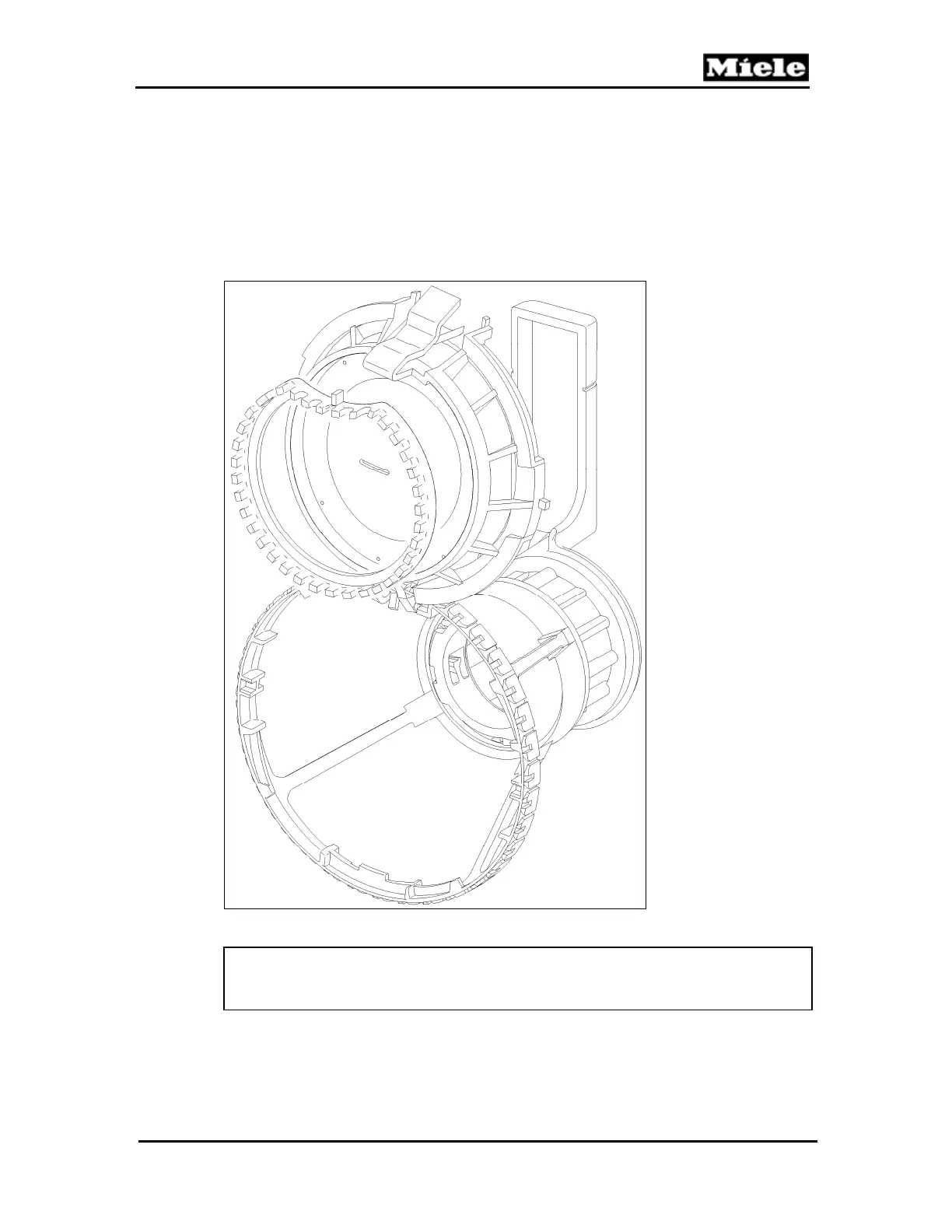

Figure 050-16: Microfine Filter Trap

Note:

Once the ring is installed, cleaning the filter has to be done in shorter

intervals.
