Technical Information

G 1xxx/G 2xxx

Intermediate position, opening:

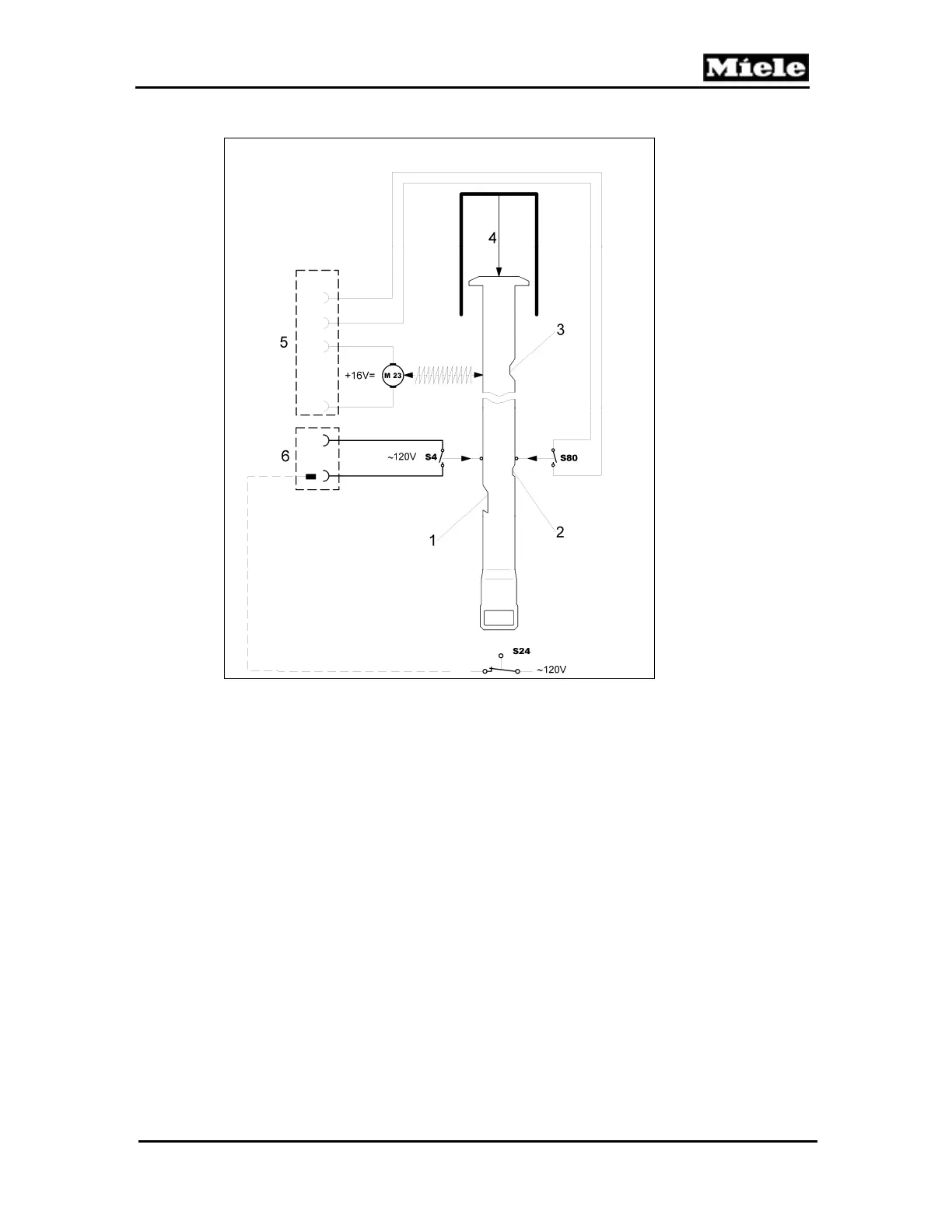

Figure 020-8: Door Lock Latch, Intermediate Opening Position

1, 2, 3

Latch positions 1, 2, 3

Direction of latch movement

Plug 2

Plug 1

Door switch (supply voltage 120VAC), open

S80

Door movement switch (low voltage), open

S24

Door contact switch (supply voltage 120VAC), closed

M23

Door-locking motor (DC motor); voltage applied, motor is opening door
