4.3 Door Outer Panel Removal

Warning!

Take care to hold and support the door outer panel when removing it.

1. Open the door and remove the countersunk screws (Figure 030-3, Item 2)

around the inner edge.

2. Close the door and remove the door outer panel.

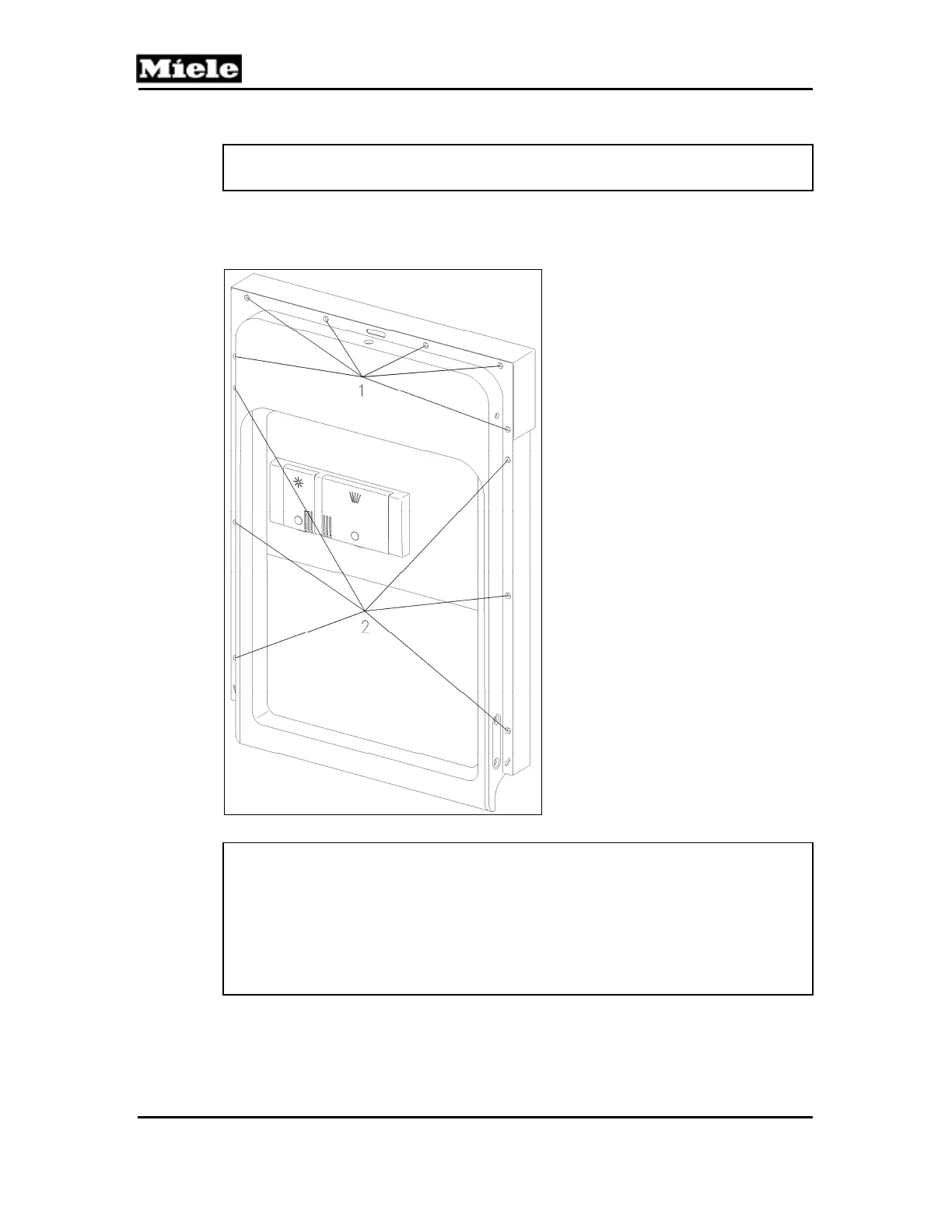

Figure 030-3: Outer Door Panel Removal

Note:

Touchtronic/Novotronic only: When installing the door outer panel, make

sure that the cutouts in the door outer panel are correctly located in the

mounting bracket.

Navitronic only: When mounting the outer door panel, make sure that the

tabs under the fascia panel are inserted into the slots at the top edge of the

door panel.
