Technical Information
74
G 1xxx/G 2xxx
wall and the basket guide and remove the clip upwards.
5. Remove the basket guide.
Note:
If the clip is damaged during removal, it must be replaced. The clip can be
ordered under mat. no. 01107900.
4.3 Toekick Removal
1. Remove the side panels. See Section 010-4.1.
2. Remove the drip pan. See Section 010-4.2.
3. Remove the connecting strip retaining screws; see Figure 040-6, Item 1.
4. Release the cord from the spring.
5. Pull out the toekick from the guide integrated in the rear panel.

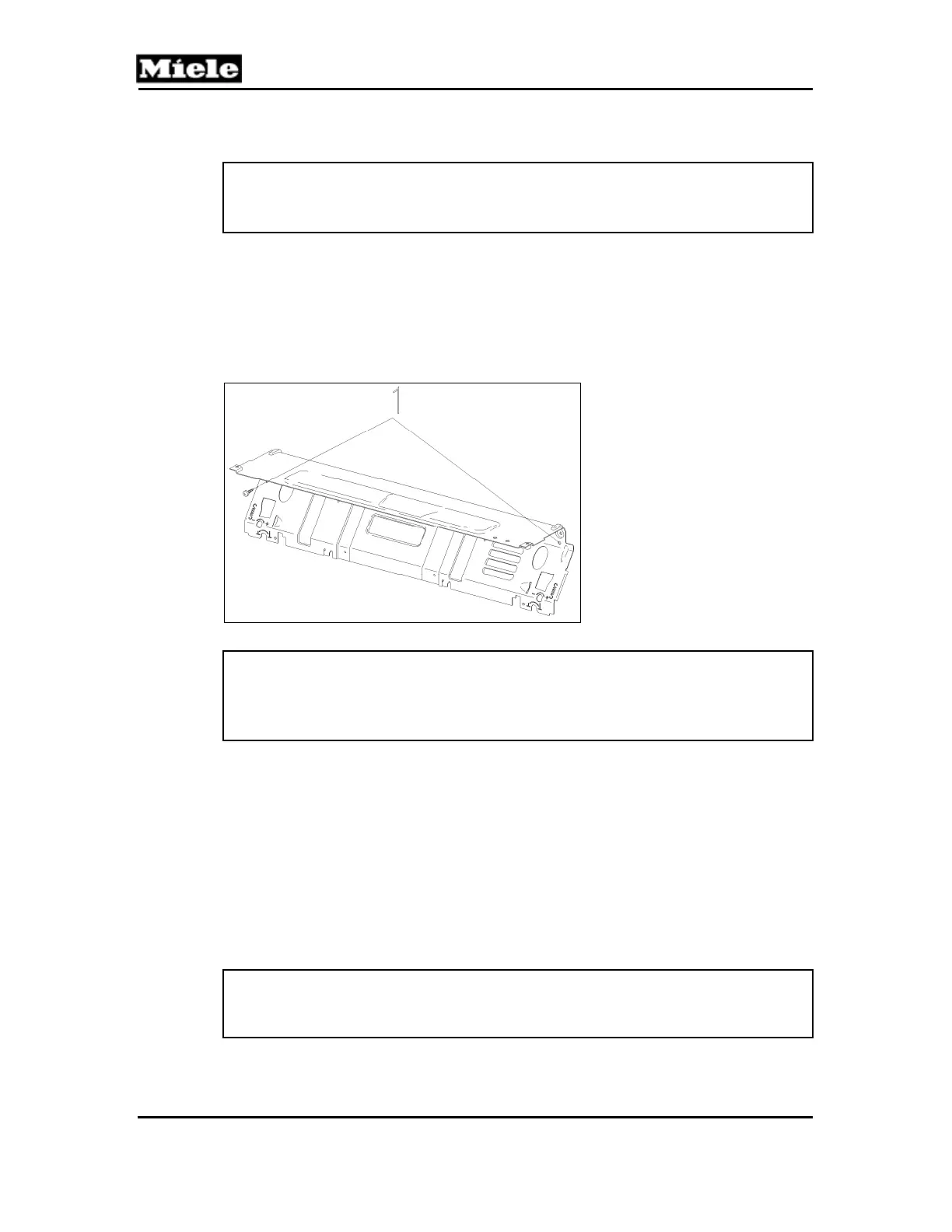

Figure 040-6: Toekick Removal
Note:
Use caution when removing the left toekick. The electrical connector to the
waterproof inlet valves is held in place. To remove, release the retaining
clips.
4.4 Steam Condenser Removal
1. Remove the right side panel; see Section 010-4.1.
2. Remove the cutlery tray (if applicable).
3. Unscrew the splash protection cap (connection piece to air duct) in the
cabinet.
4. Remove the vent screw.
5. Remove the bottom basket.
6. Remove the air duct from the condenser.
7. Release the locking tabs between the condenser and fan; see Figure 040-7,
Item 1. Remove the condenser.
Note:
When re-installing, ensure that the locking tabs between the condenser and
fan engage properly.
