Technical Information
115
G 1xxx/G 2xxx

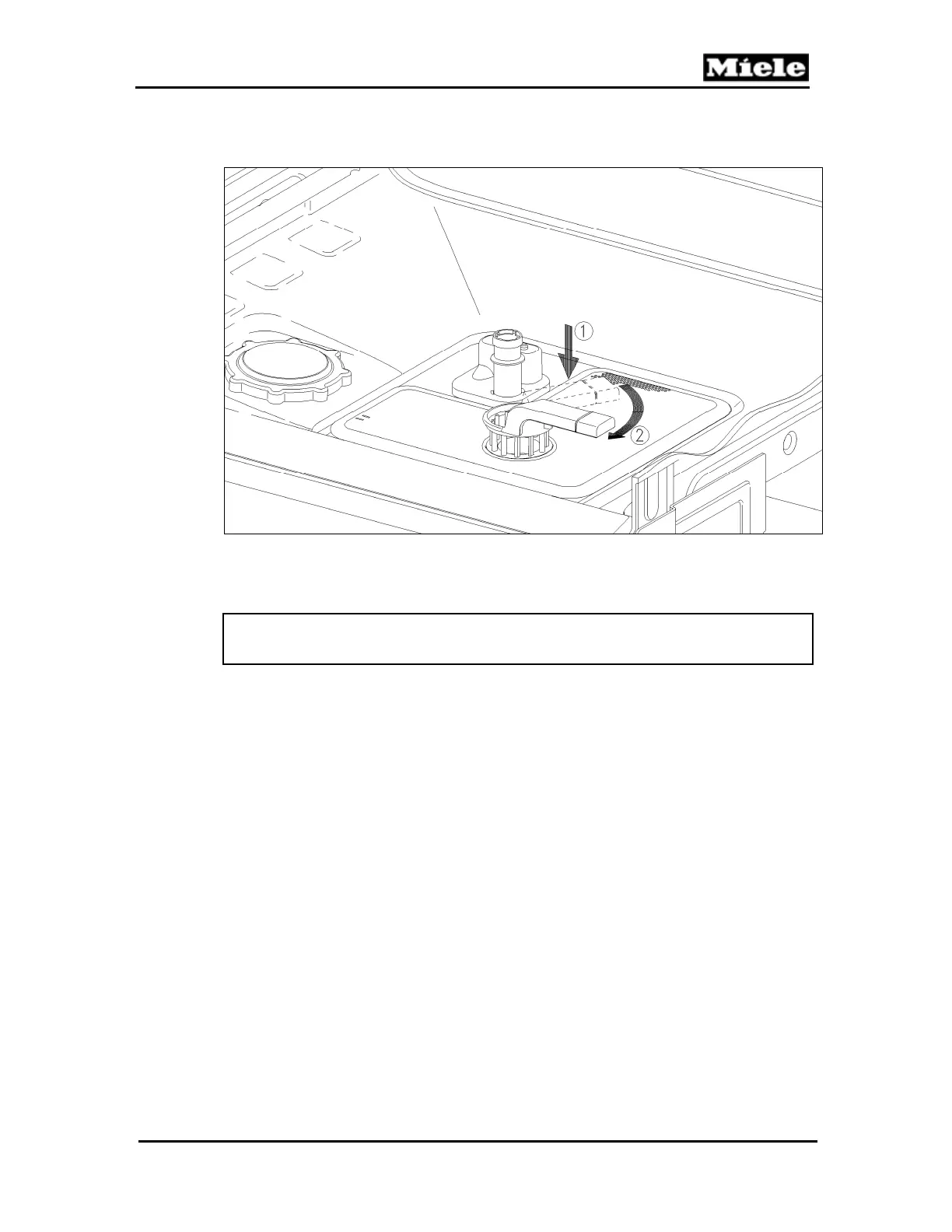

Figure 050-27: Filter Combination Lock/Unlock Positions
4.29 Filter Combination Assembly (with Locking Piece)
Note:
During assembly, the dishwasher is used as a guide.
1. Install the microfine filter in the sump. Ensure that the lug is positioned
towards the rear of the machine.
2. Turn the microfine filter clockwise as far as possible; see Figure 050-26.
3. Install the large surface area fine filter in position.
4. Press the large surface area fine filter downwards; see Figure 050-27, Item 1.
5. Install the handle (crown coarse filter) and turn it clockwise as far as
possible; see Figure 050-27, Item 2.
6. Carry out a visual check: The handle (crown coarse filter) should be
parallel to the door as shown in Figure 050-27.
7. Remove the filter combination.
8. Open the filter cap.
9. Install the locking piece, mat. no. 06248730, to prevent the retaining clip
spring from opening; see Figures 050-28 and 050-29.
