Note:
If the dishwasher has a furniture front, insert a towel or similar between its
top edge and the fascia to prevent the risk of scratching.
3. Disconnect all plugs.
4. Press in the retaining lugs; see Figure 100-3, Item 1.
5. Slide the on/off switch upwards (Figure 100-3, Item 2) and remove it from
its holder.

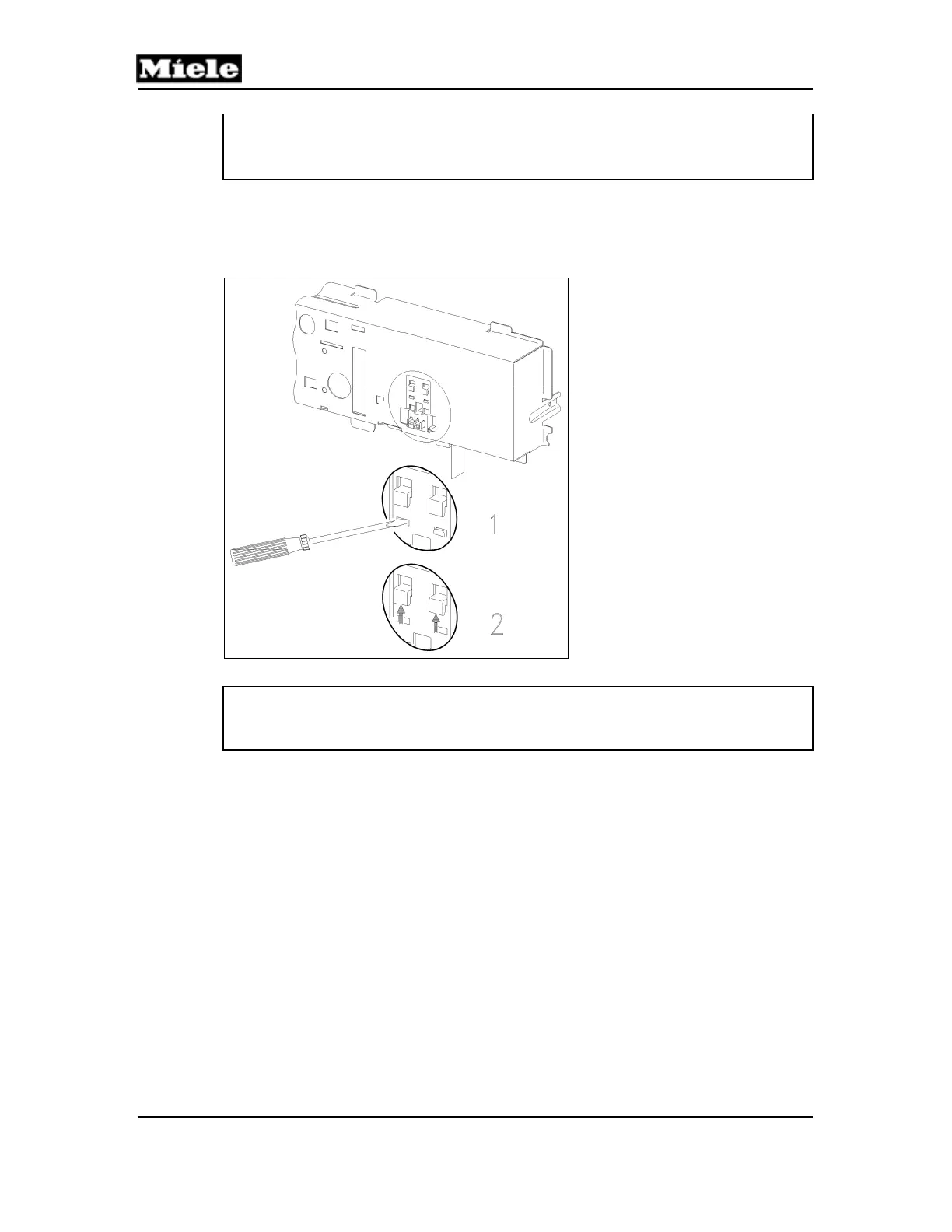

Figure 100-3: On/Off Switch Removal (Touchtronic/Novotronic)
Note:
When re-installing the bracket, make sure that the electronic’s protective foil
is pulled down at the bottom so that it is below the plug area.
4.5 Electronic Removal (Incognito)
1. Door outer panel removal (Section 030-4.3).
2. Fascia panel removal (Section 100-4.2).
3. Remove the screws from the sides of the door inner panel.
4. Remove the door contact switch retaining screw.
5. Disconnect all plug connections at the electronic.
6. Remove the holder with electronic.
7. Remove the lock with door contact switch.
