Technical Information

G 1xxx/G 2xxx

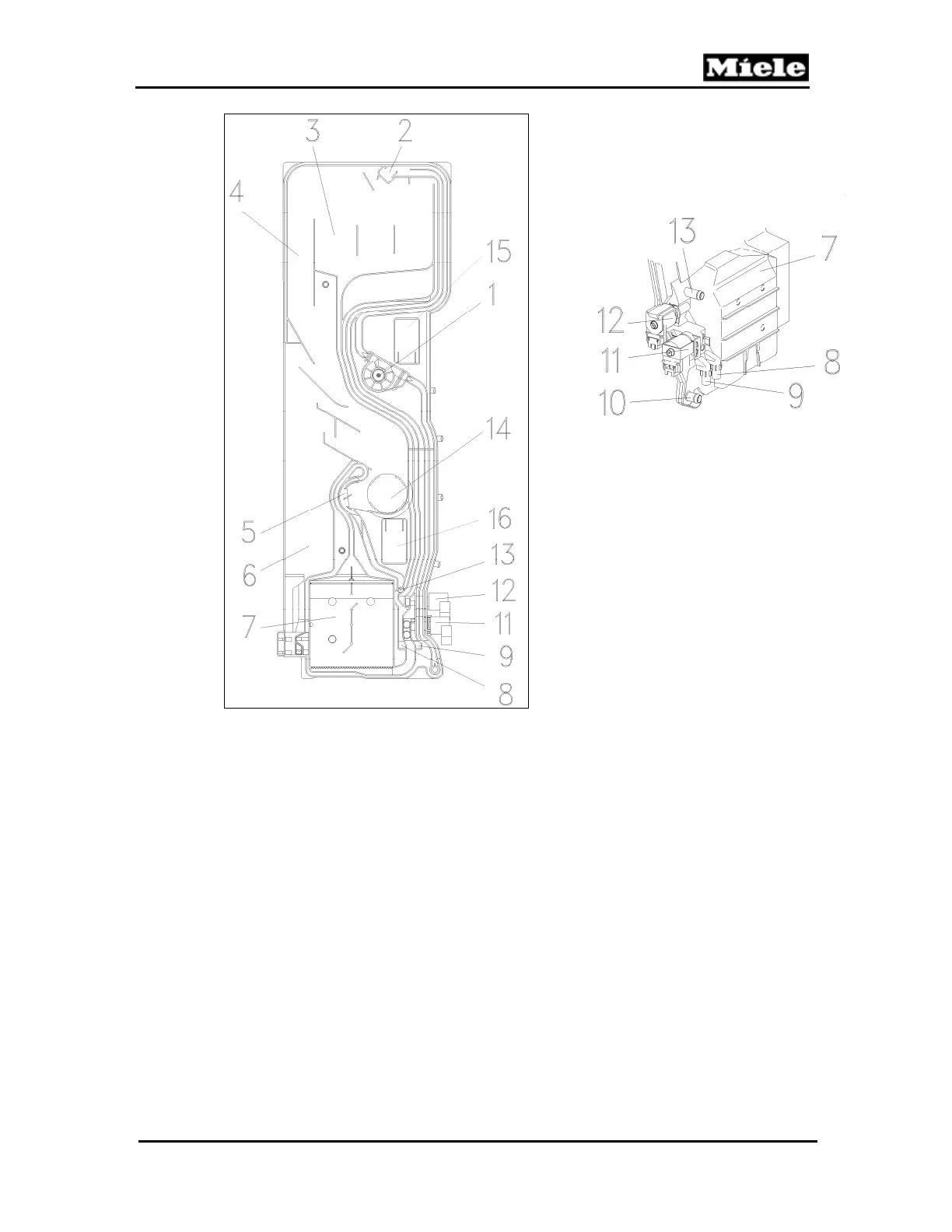

Figure 050-3: Water Diverter

Flow meter B3/4

Water intake from salt container

Ball valve

Connection to inlet valve

Softener reactivation water reservoir

Reactivation valve

Overflow

EGS (water softener) valve

Non-return device

Water outlet to sump

Vent

Cabinet ventilation

Ion exchanger

Middle spray arm sensor

Water outlet to salt container

Bottom spray arm sensor

Detail View of Valves,

Intakes and Outlets
