Technical Information
24
G 1xxx/G 2xxx

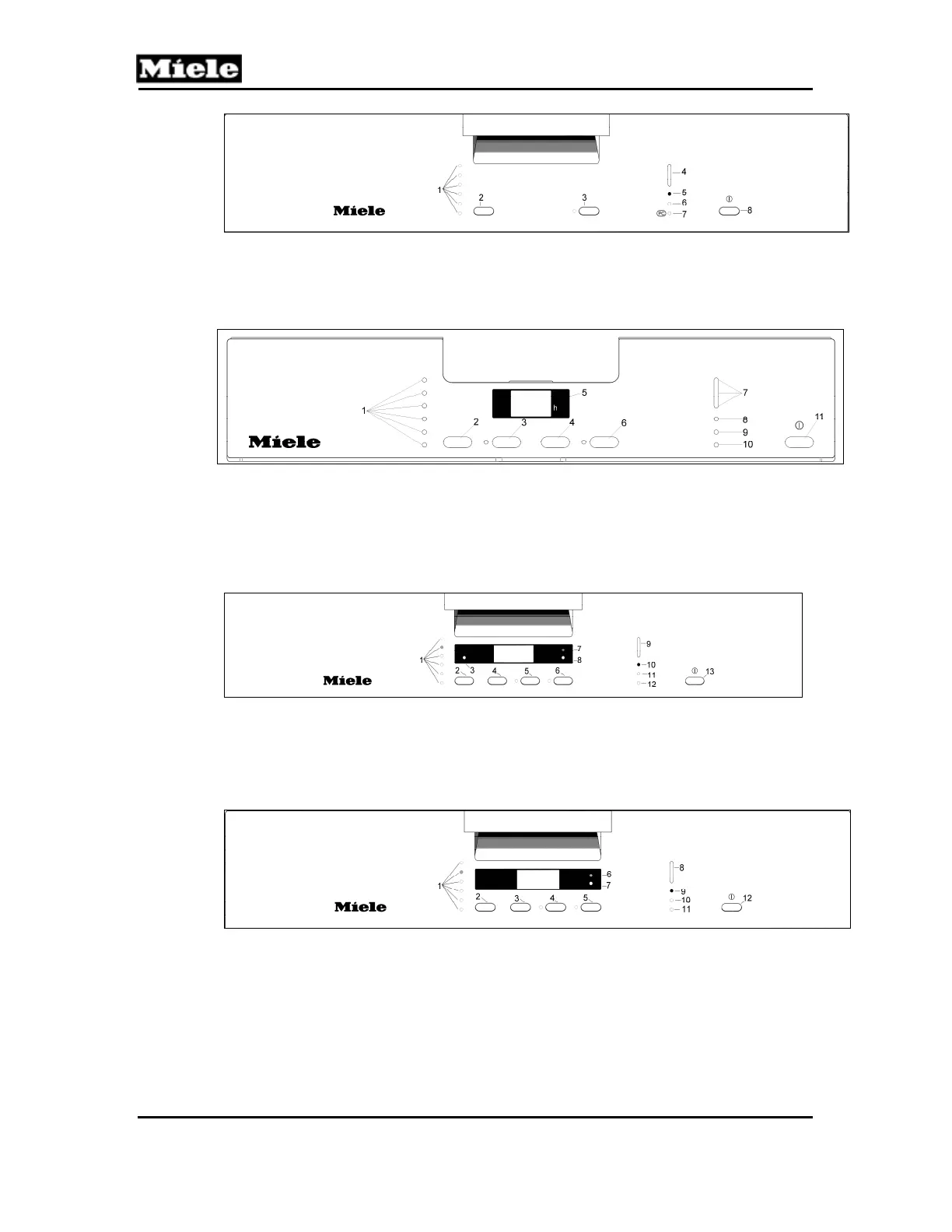

Figure D-3: G 2120, G 214x, G 2150 Fascia Panel
1 Program selection LEDs 5 Intake/Drain LED
2 Program selection button 6 Rinse aid LED
3 Start/Stop button 7 Salt LED
4 Program sequence LEDs 8 On/Off button
Figure D-4: G 2143 Fascia Panel
1 Program selection LEDs 7 Program sequence LEDs
2 Program selection button 8 Intake/Drain LED
3 Turbo button 9 Rinse aid LED
4 Delay Start button 10 Salt LED
5 Delay start display 11 On/Off button
6 Start/Stop button
Figure D-5: G 2420, G 2430 Fascia Panel
1 Program selection LEDs 6 Start/Stop button 10 Intake/Drain LED
2 Program selection button 7 2in1 Tab LED 11 Rinse aid LED
3 GlassCare LED 8 GEL LED 12 Salt LED
4 Detergent button 9 Program sequence LEDs 13 On/Off button
5 Delay Start button
Figure D-6: G 2432 Fascia Panel
1 Program selection LEDs 5 Start/Stop button 9 Intake/Drain LED
2 Program button 6 Turbo LED 10 Rinse aid LED
3 Options button 7 Tab LED 11 Salt LED
4 Delay Start button 8 Program sequence LEDs 12 On/Off button
