Technical Information

G 1xxx/G 2xxx

3.8 G 2872 (LaPerla II with Incognito)

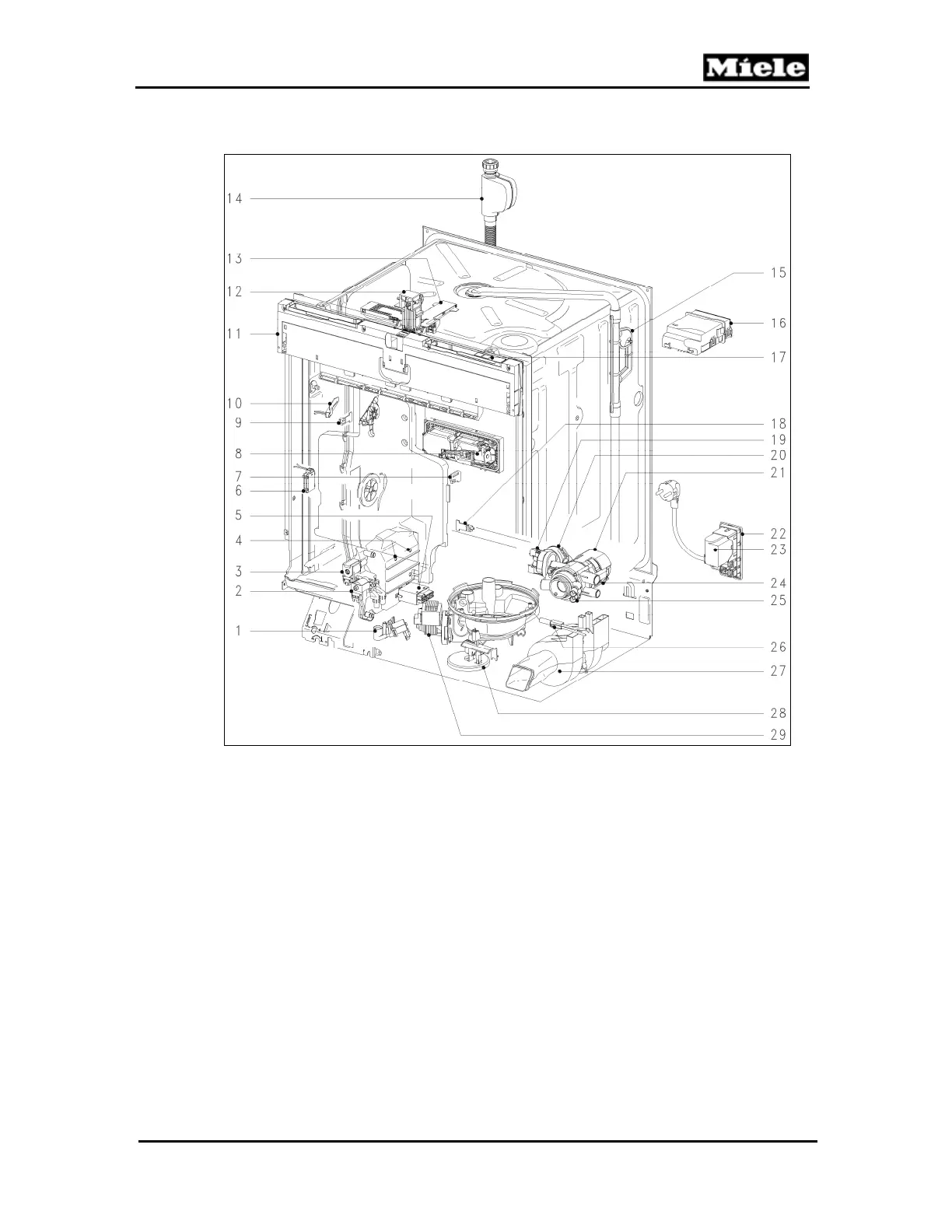

Figure D-27: G 2872 Component Layout

Brine valve, Y60

RemoteVision, 3N1

Reactivation solenoid, Y38

Main switch, S2

Wash-water hardness solenoid, Y5

Salt float switch, B8/2

Sensor softener, 10N1

Heater pressure switch, B1/13

Heater relay, K1/1

Slide shutter, M24 and B3/12

Middle and bottom spray arm sensors,

4N1 and 5N1

Frequency converter electronic -

circulation pump

Rinse aid float switch, B8/1

Terminal block, X3/1

Combination dispenser solenoid, Y50

Interference suppression, Z1

Salt container cap, B3/13

Circulation pump (MPPW), M6

Flow meter, B3/4

Heater, R1

Electronic, 1N1 and 2N1

Temperature sensor (NTC), R30

Door contact switch, S24

Fan, M2

Comfort door closing aid: S4, S80, M23

Overflow float switch, B8/3

Water intake solenoid, Y2

Drain pump, M8

Turbidity sensor, B3/10
