G 1xxx/G 2xxx

2 Appliance Overviews

2.1 Integrated Models, Salt Container in Sump

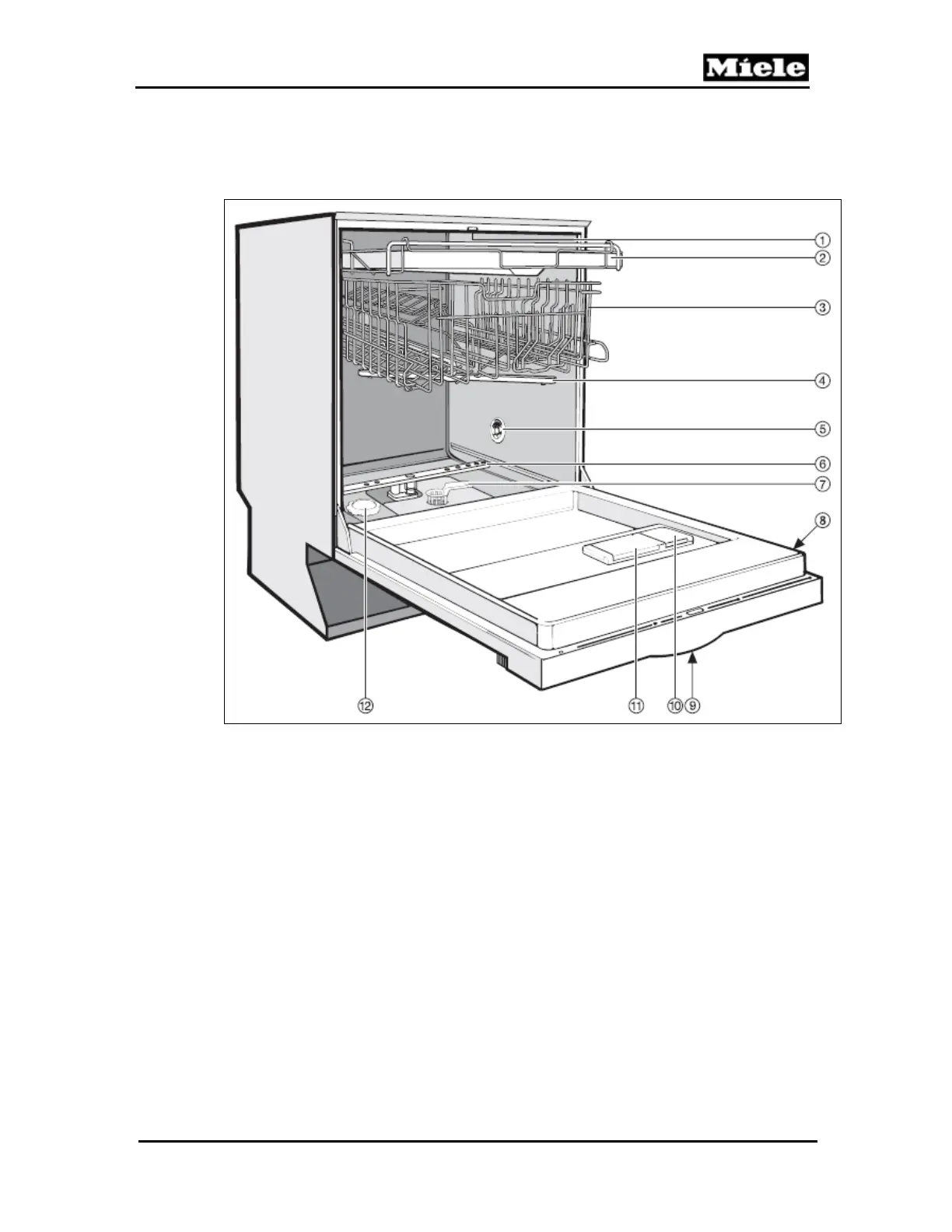

Figure D-15: Integrated Model with Salt Container in Sump

1 Upper spray arm (not visible) 7 Filter combination

2 Cutlery tray (model-dependent) 8 Data tag

3 Upper basket 9 Child safety lock in door handle (model-dependent)

4 Middle spray arm 10 Rinse aid reservoir

5 Air inlet for drying (model-dependent) 11 Dual-compartment detergent dispenser

6 Lower spray arm 12 Salt container
