Installation

*INSTALLATION*

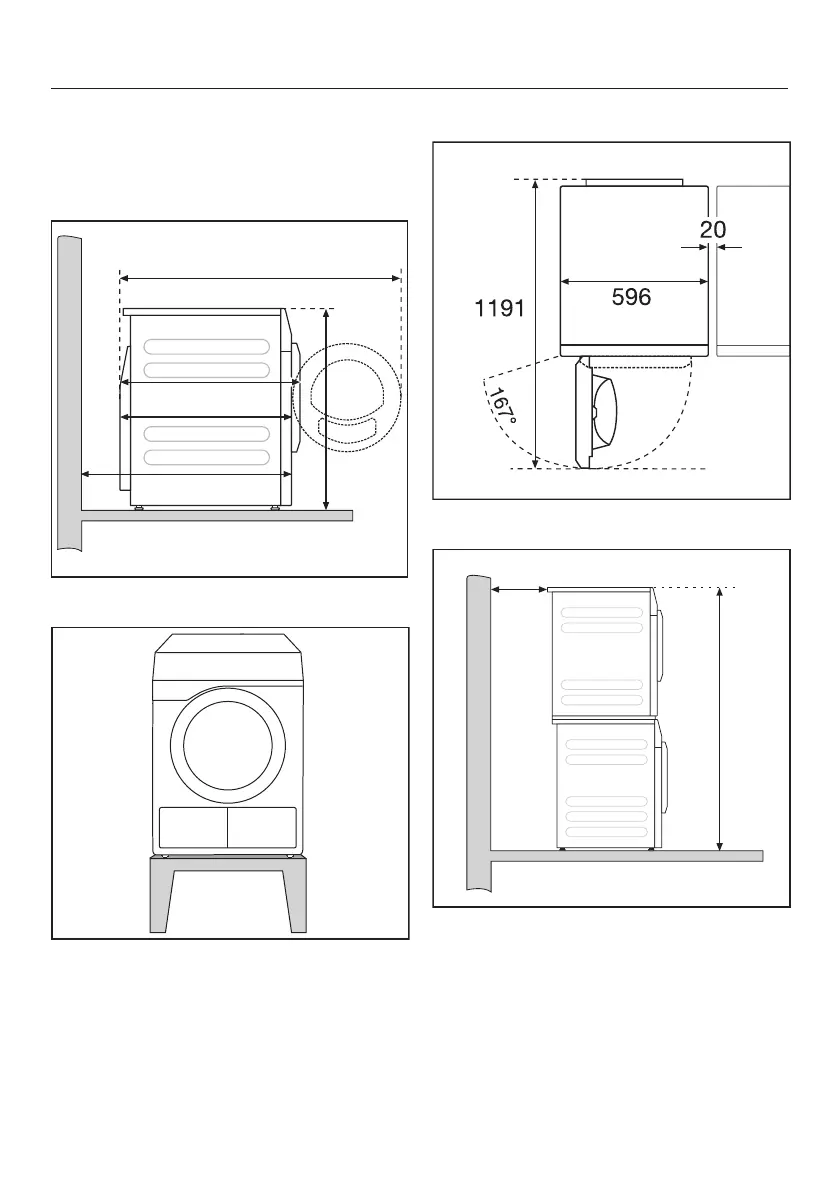

Locations

All measurements in mm

Side view

1191

777

1100

850

737

Steel plinth

Steel plinth* (open or closed bases)

View from above

Washer-dryer stack

min. 300

1702

A stacking kit* is needed. This must be fitted

by a Miele authorised service technician.

* Miele accessory available to order
