Milton Roy GM Series User Manual

34

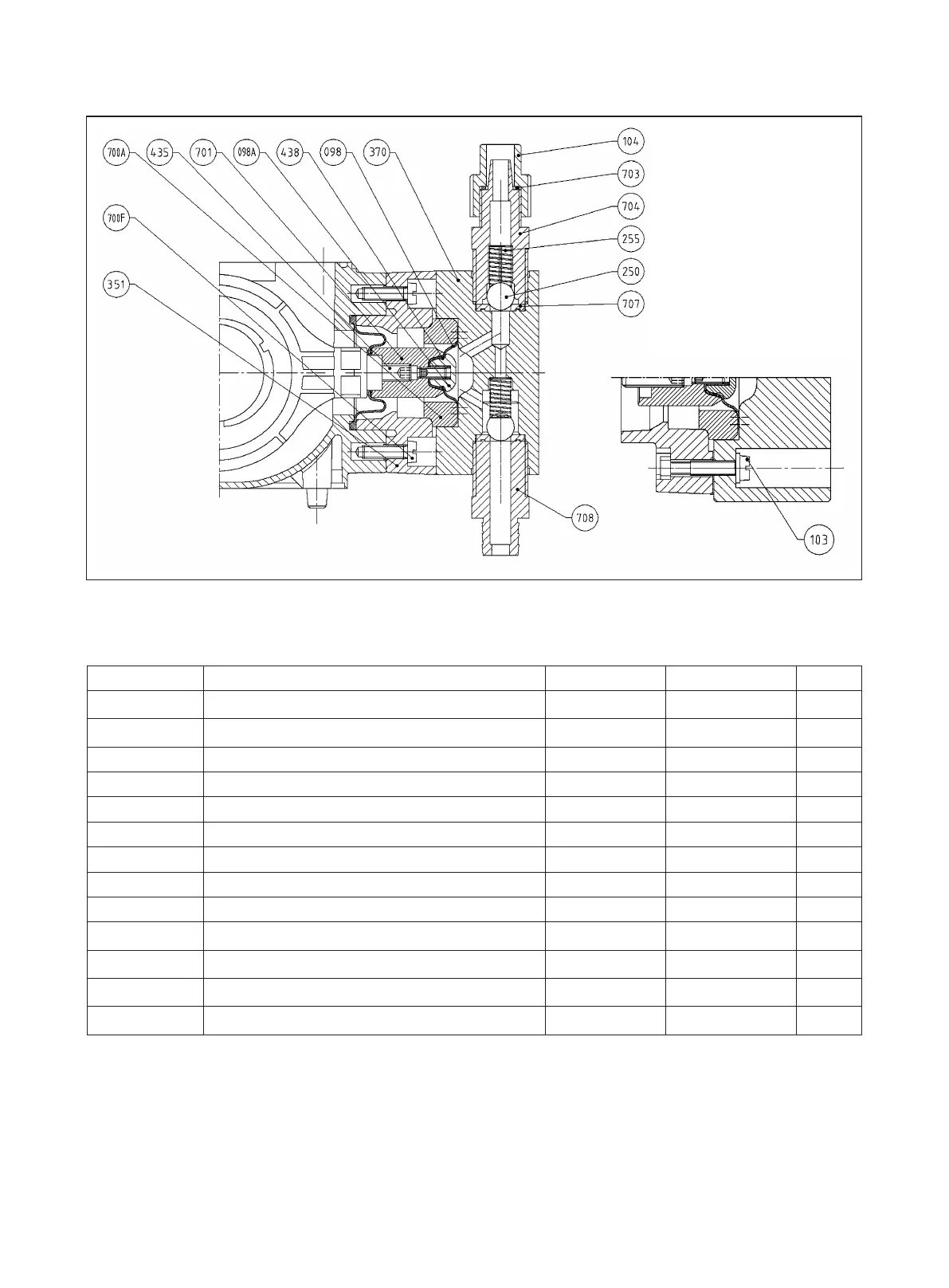

FIGURE 5-7 GM0002~GM0010 HIGH VISCOSITY LIQUID END- TUBING CONNECTION
5.7 PARTS LIST FOR GM0002~GM0010 HIGH VISCOSITY LIQUID END TUBING CONNECTION
(REFERRING TO FIGURE 5-7)
Notes:
1. Replacement of suction/discharge check valve assembly, only as assembly of item nut (104), ball check
(250), spring (255), washer (703), adaptor (704), seat (707), threaded connection (708).
2. Replacement of diaphragm assembly (098), only as assembly of item diaphragm (098), plate (098A),
diaphragm (701), O-ring (438), screw (435A)
Item Number Description Material Part Number Qty.
Suction Check Valve Assembly PVC H60607 1
Discharge Check Valve Assembly PVC H60608 1
098 Diaphragm Assembly 316SS/PTFE H60606 1
103 Screw - S10340 4
700F Screw - S70054 4
351 Spacer - S35116 1
435 Screw A2-70 S4350016075N 1
700A Diaphragm Support Ring PVC S70180 1
370 Head PVC 70141 1
Injection Valve PP - 77031 1
Threaded Connection - 25650 1
Cover, G1/2 - 4320531150N 1
Collar, D18-28 304SS 4340029020N 2
