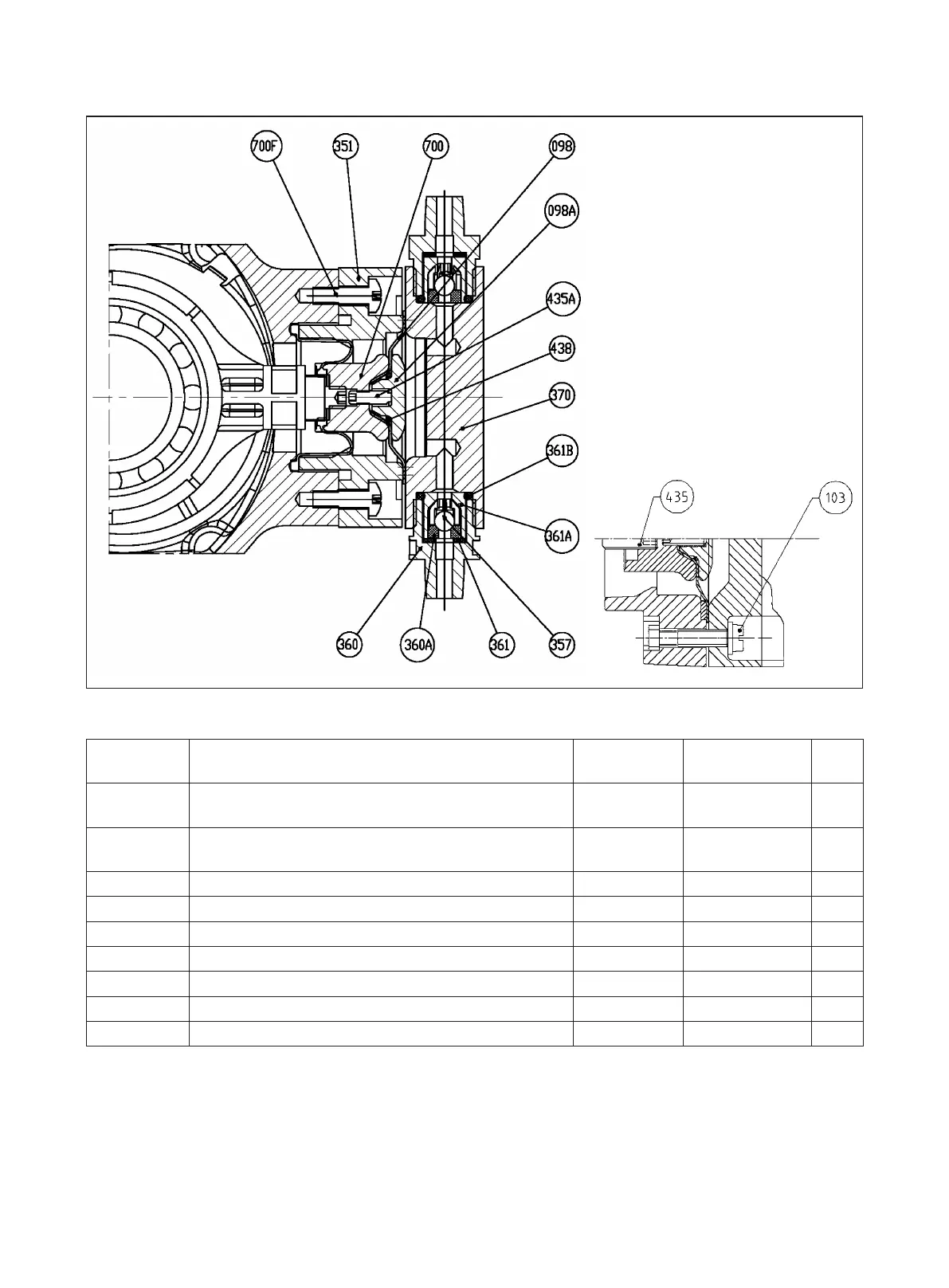

FIGURE 5-10 GM0025~GM0050 PVC LIQUID END-THREADED CONNECTION
5.10 GM0025~GM0050 PVC LIQUID END THREADED CONNECTION(REFERRING TO FIGURE 5-10)
Notes:
1. Replacement of suction/discharge check valve assembly, only as assembly of check valve ball 375), check
valve body(360),seat(360A), washer(361), cartridge(361A), O-ring(361B&438).
2. Replacement of diaphragm assembly (098), only as assembly of item diaphragm (098), plate(098A),
diaphragm seat (701), O-ring (438), screw(435A).
Item
Number
Description Material Part number Qty
Check Valve Assy-Thread Connection(PVC LE)
(Before 2019.11)
PVC H60622 2
Check Valve Assy-Thread Connection
（
PVC LE
）
(PVC LE)(After 2019.11)
PVC P300127099
2
098 Diaphragm Assy
（
PVC LE
）
PVC/PTFE H60610 1
103 Screw - S10340 4
700F Screw - S70054 4
351 Spacer - S35116 1
435 Screw HC A2-70 S4350016075N 1
370 Liquid End Body / 1.0 PVC S37012 1
Stone For Suction Strainer Ceramics S10322 1
