Supplementary Reagent Loading (SRL) Module (Optional)
11-2

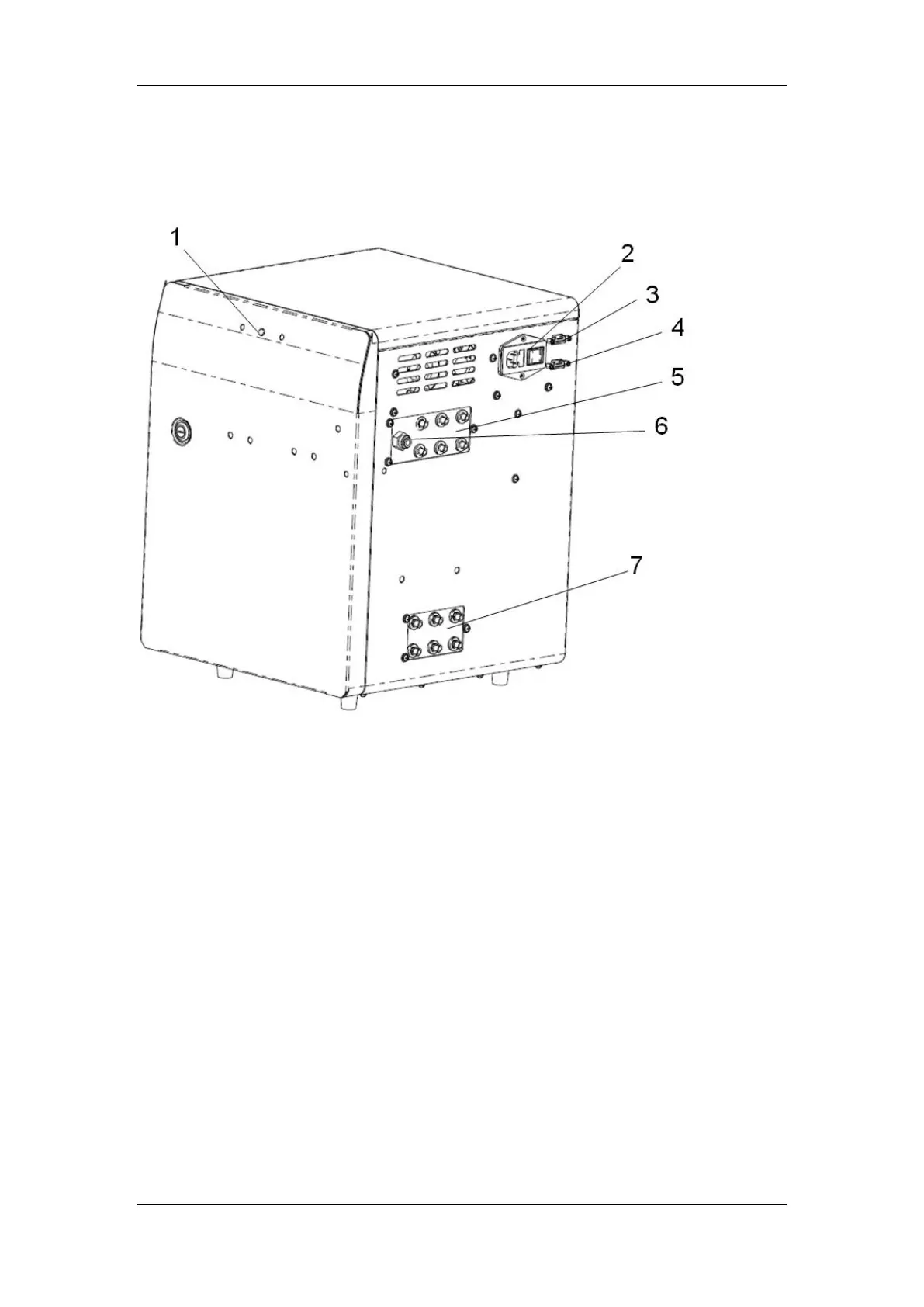

11.2 Structure and Interfaces
1 --- Indicator
2 --- Power switch
3 --- Reserved interface
4 --- Pneumatic unit control interface
5 --- Reagent outlets
6 --- Pneumatic unit interface (vacuum)
7 --- Reagent inlets
 Pneumatic unit control interface
Provide the connection to the pneumatic unit control interface on the main unit of the
analyzer.
After the SRL module is configured, the cable of pneumatic unit control interface will be
changed into a 2-way cable, which is connected to both the pneumatic unit of the analyzer
and the SRL module.
 Reagent outlets
Provide the connection to the reagent interfaces on the main unit of the analyzer. There are
printings showing the corresponding reagent names, and the interfaces are color-coded in
the same way as the cable connectors.
 Pneumatic unit interface (vacuum)
