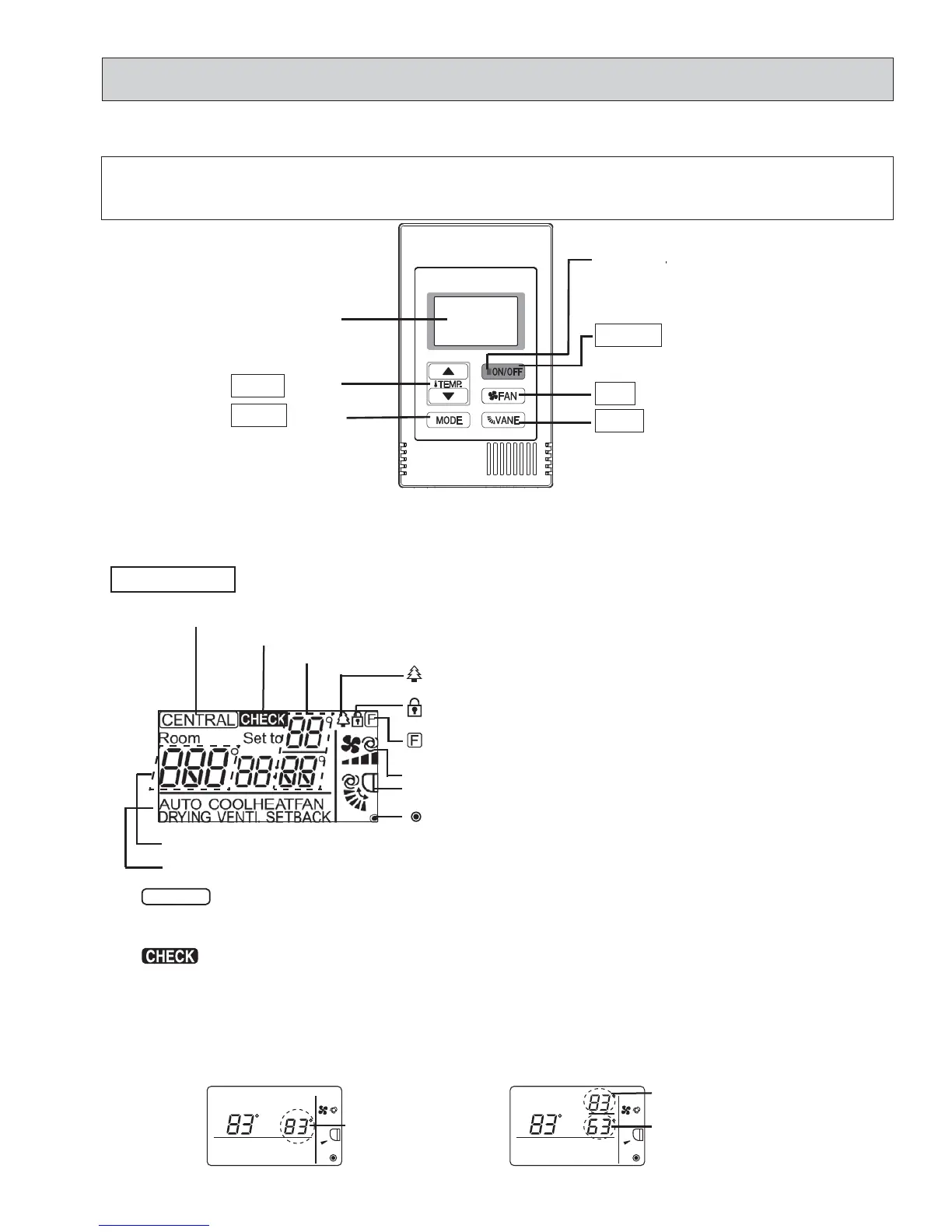

2-2-2. Wired Remote Controller <PAC-YT53CRAU>
.
Backlit LCD
ON/OFF lamp
ON/OFF button
FAN button
VANE button
Note: To set the functions that are not available on this controller (PAC-YT53CRAU) such as Louver,
use the centralized controller.
The lamp will light up in green when
turned on, and blink during startup
and when an error occurs.
Pressing this button starts and
stops the operation.
TEMP. button
MODE button
Note:
The phrase "Wired remote controller" in this manual refers only to the PAC-YT53CRAU.
If you need any information for the other remote controller, please refer to either the installation manual or initial setting manual which are included in
remote controller's box.
GB
Display section
*2 icon
For CITY MULTI, when an error occurs, power indicator will blink, and unit address (3 digits) and check code (4
digits) will blink.
Check the error status, stop the operation, and consult your dealer.
icon appears while the unit is operated in the
energy-saving mode
Note: All icons are displayed for explanation purpose
icon appears when Operation lock setting is
effective.
icon appears when indoor unit functions are set up.
(Refer to the Installation Manual.)
Fan speed icon
Vane icon
icon appears when the power is on.
Indoor temperature
Operation modes
CENTRAL icon *1
CHECK icon *2
Preset temperature *3
*1 icon
Appears when one of the following local operations is prohibited: ON/OFF; operation mode; preset temperature;
fan speed; vane.
CENTRAL
*3 Preset temperature
* Centigrade or Fahrenheit is selectable. Refer to the Installation Manual for details.
In COOL, DRYING, HEAT, or
AUTO (single set point) modes
In AUTO (dual set point) or
SETBACK modes
Room
Setto
AUTO COOL HEATFAN
DRYINGVENTI.SETBACK
Preset
temperature
Room
Setto
AUTO COOLHEATFAN
DRYINGVENTI.SETBACK
Heating preset
temperature
Cooling preset
temperature

Mitsubishi Electric City Multi Series Specifications

General

Refrigerant	R410A
Control	Centralized control, individual control
Indoor Unit Types	Ceiling Cassette, Ceiling Suspended, Wall Mounted
Power Source	Electric
Piping Length	Up to 1000m total piping length (depending on the model)
Height Difference	Up to 50m
