<How to operate>
1 Press POWER ON/OFF button.
2 Press the operation MODE button to display DRY.
3 Press the TEMP. button to set the set temperature.
NOTE: The set temperature changes 1°F when the or
button is pressed one time. Dry 67 to 87°F
<How to operate>
1 Press ON/OFF button.
2 Press [F1] button to display DRY.
3 Press [F2] [F3] button to set the set temperature.

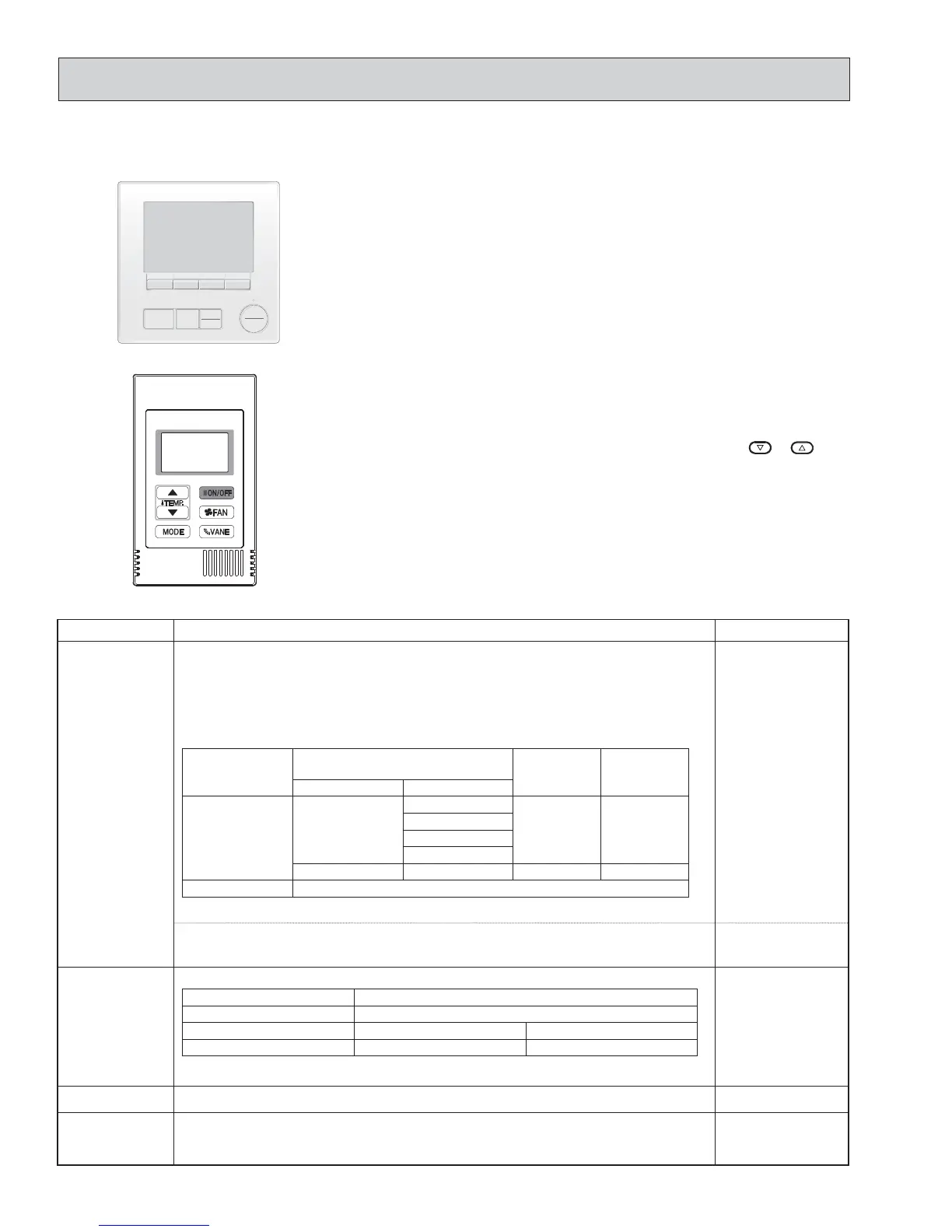

8-2. DRY OPERATION
Control Mode Control Details Remarks
1. Temperature
adjustment
function
1-1. Determining temperature adjustment function
(Function to prevent restarting for 3 minutes)
Setting the Dry thermo by the thermostat signal and the room temperature (TH21).
Dry thermo-ON Room temperature
]
Set temperature + 2°F
Dry thermo-OFF Room temperature
[
Set temperature
Room temperature
3 minutes passed since
starting operation
Dry thermo-
ON time
(min)
Dry thermo-
OFF time
(min)
Thermostat signal
Room temperature (T1)
Over 64°F
ON
T1
]
83°F 9 3
83°F > T1
]
79°F 7 3
79°F > T1
]
75°F 5 3
75°F > T1 3 3
OFF Unconditional 3 10
Below 64°F Dry thermo OFF
1-2. Anti-freeze control
No control function
2. Fan Indoor fan operation controlled depends on the compressor conditions.
Dry thermo Fan speed notch
ON [Low]
OFF Excluding the following Stop
Room temp. < 64°F [Low]
Note: Fan speed change is not allowed during DRY operation.
3. Drain pump Operates as it would in COOL operation.
4. Vane
(up/down vane
change)
Settings are the same in DRY operation as they are in COOL operation.
MENU
ON
OFF
RETURN
SELECT
HOLD
.
