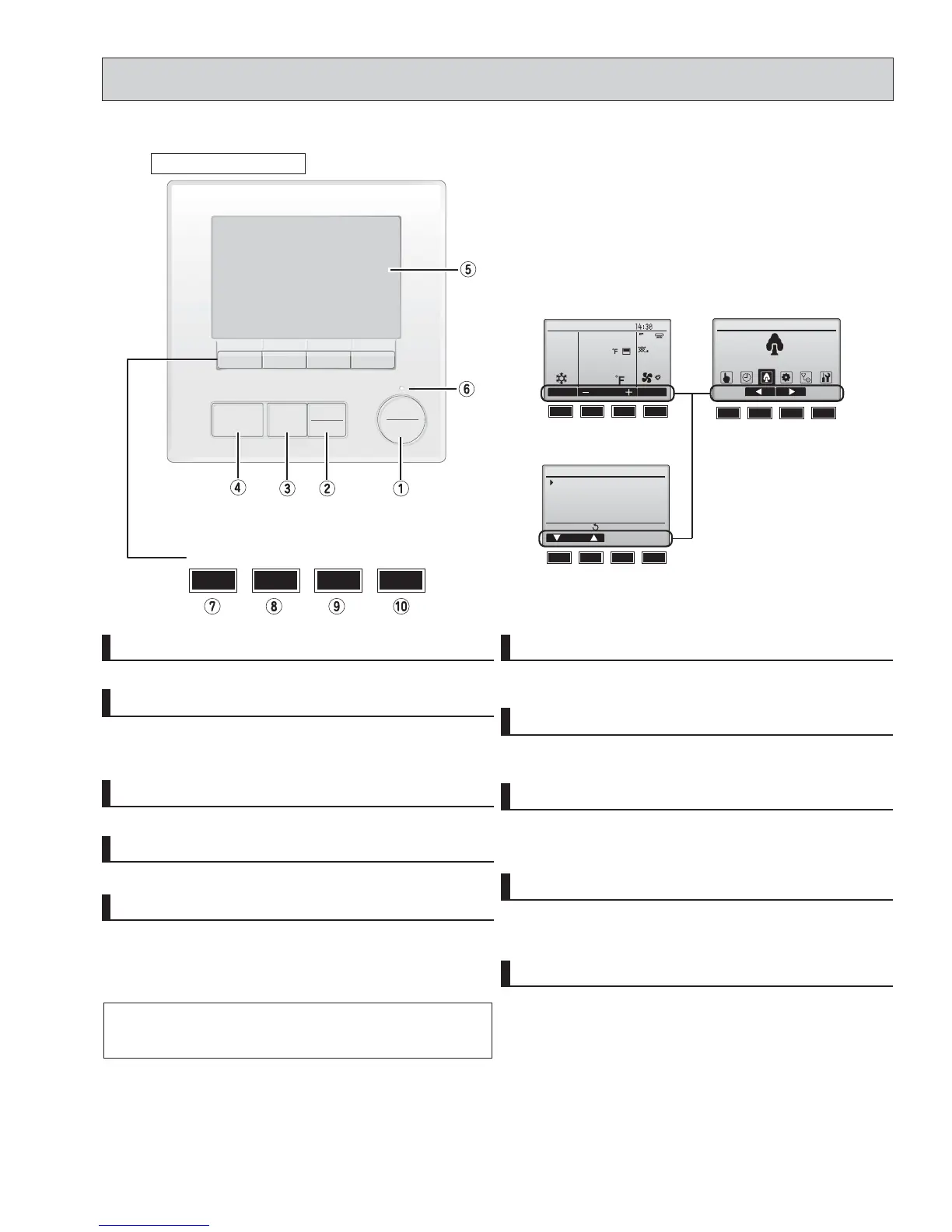

2-2-1. Wired Remote Controller <PAR-40MAA>
Function buttons
MENU
ON
OFF
RETURN
SELECT
HOLD
When the backlight is off, pressing any button turns the backlight on
and does not perform its function. (except for the [ON/OFF] button)
The functions of the function buttons change depending on the

screen.
Refer to the button function guide that appears at the bottom of
the LCD for the functions they serve on a given screen.
When the system is centrally controlled, the button function
guide that corresponds to the locked button will not appear.
Press to turn ON/OFF the indoor unit.
This lamp lights up in green while the unit is in operation. It blinks
while the remote controller is starting up or when there is an error.
1
[ON/OFF] button
6
ON/OFF lamp
Press to save the setting.
When the Main menu is displayed, pressing this button will
enable/disable the HOLD function.
Main display: Press to change the operation mode.
Menu screen: The button function varies with the screen.
2

[SELECT/HOLD] button
7

Function button [F1]
Press to return to the previous screen.
Main display: Press to decrease temperature.
Main menu: Press to move the cursor left.
Menu screen: The button function varies with the screen.
3
[RETURN] button
8
Function button [F2]
4
[MENU] button
9
Function button [F3]
Press to bring up the Main menu.
Main display: Press to increase temperature.
Main menu: Press to move the cursor right.
Menu screen: The button function varies with the screen.
Operation settings will appear.
When the backlight is off, pressing any button turns the
backlight on and it will stay lit for a certain period of time de-
pending on the screen.
Main display: Press to change the fan speed.
Menu screen: The button function varies with the screen.
5
Backlit LCD
0
Function button [F4]
83
83
Fri
Room
Set temp.
Mode Temp. Fan
Cool Auto
Main Main menu
Energy saving
Main display:
Cursor
Operation
Vane·Louver·Vent. (Lossnay)
High power
Comfort
Main menuMain display
Menu screen
7890
7890
7890
Function guide
Controller interface

Mitsubishi Electric City Multi Series Specifications

General

Refrigerant	R410A
Control	Centralized control, individual control
Indoor Unit Types	Ceiling Cassette, Ceiling Suspended, Wall Mounted
Power Source	Electric
Piping Length	Up to 1000m total piping length (depending on the model)
Height Difference	Up to 50m
