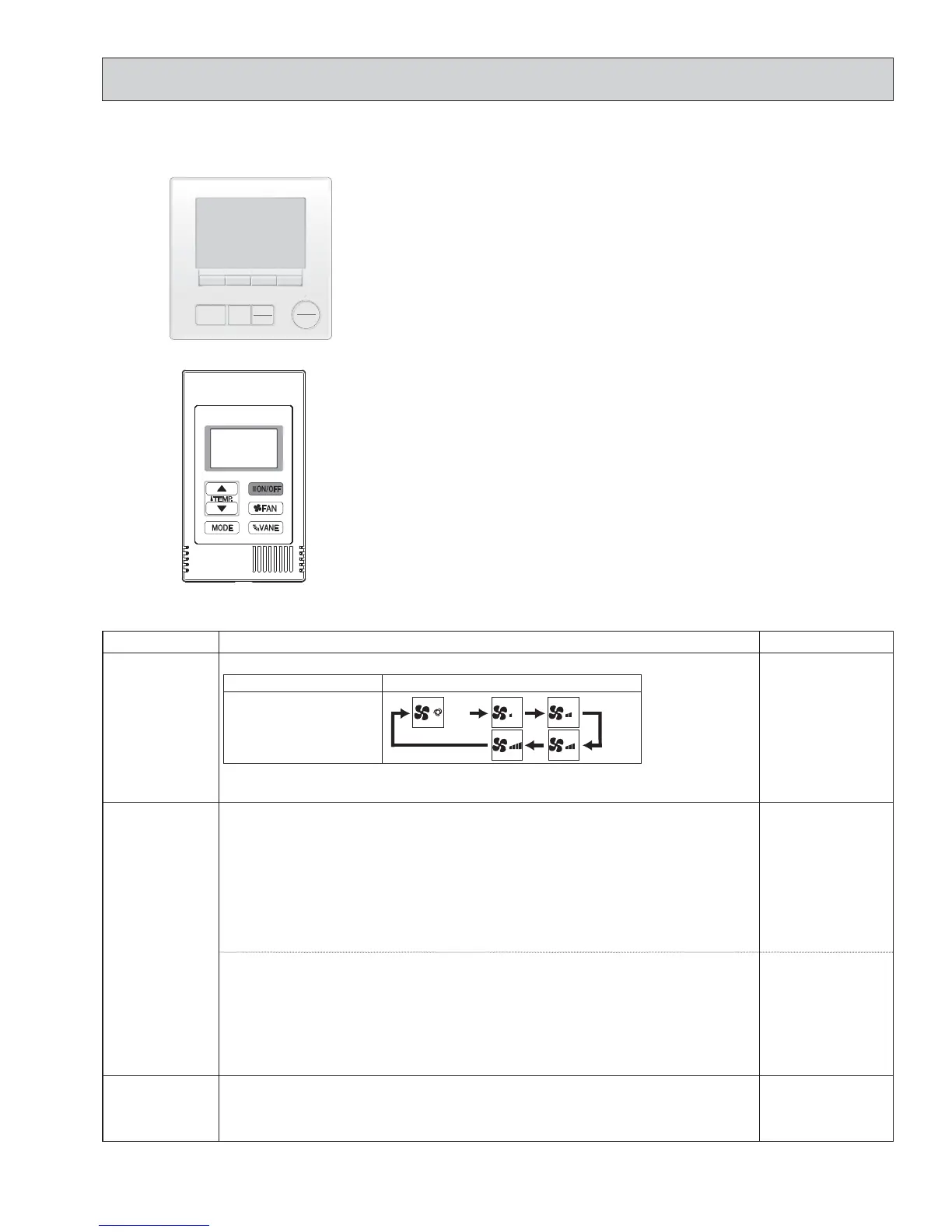

8-3. FAN OPERATION
Control Mode Control Details Remarks
1. Temperature
adjustment
function
Set by remote controller.
Type Fan speed notch
4 speeds + Auto type
When [Auto] is set, fan speed becomes [Low].
2. Drain pump 2-1. Drain pump control
7KHGUDLQSXPSWXUQV21IRUWKHVSHFL¿HGDPRXQWRIWLPHZKHQDQ\RIWKHIROORZLQJ
FRQGLWLRQVKDVEHHQVDWLV¿HG
1
ON for 3 minutes after the operation mode is switched from COOL or DRY to another
operation mode (FAN).
2
21IRUPLQXWHVDIWHUWKHÀRDWVZLWFKLVVXEPHUJHGLQWKHZDWHUZKHQWKHÀRDWVZLWFK
control judges the sensor is in the water.
2-2. Float switch control
• Float switch control judges whether the sensor is in the air or in the water by turning the
ÀRDWVZLWFK212))
,QWKHZDWHU'HWHFWHGWKDWWKHÀRDWVZLWFKLV21IRUVHFRQGV
,QWKHDLU 'HWHFWHGWKDWWKHÀRDWVZLWFKLV2))IRUVHFRQGV
• Operates as it would
in COOL operation.
3. Vane
(up/down vane
change)
Same as the control performed during the COOL operation, but with no restriction on the vane's
downward blow setting
MENU
ON
OFF
RETURN
SELECT
HOLD
.
<How to operate>
1 Press ON/OFF button.
2 Press [F1] button to display FAN.
<How to operate>
1 Press POWER ON/OFF button.
2 Press the operation MODE button to display FAN.
Auto

Mitsubishi Electric City Multi Series Specifications

General

Refrigerant	R410A
Control	Centralized control, individual control
Indoor Unit Types	Ceiling Cassette, Ceiling Suspended, Wall Mounted
Power Source	Electric
Piping Length	Up to 1000m total piping length (depending on the model)
Height Difference	Up to 50m
