APPX
Appendix 7 External Dimensions
205
A

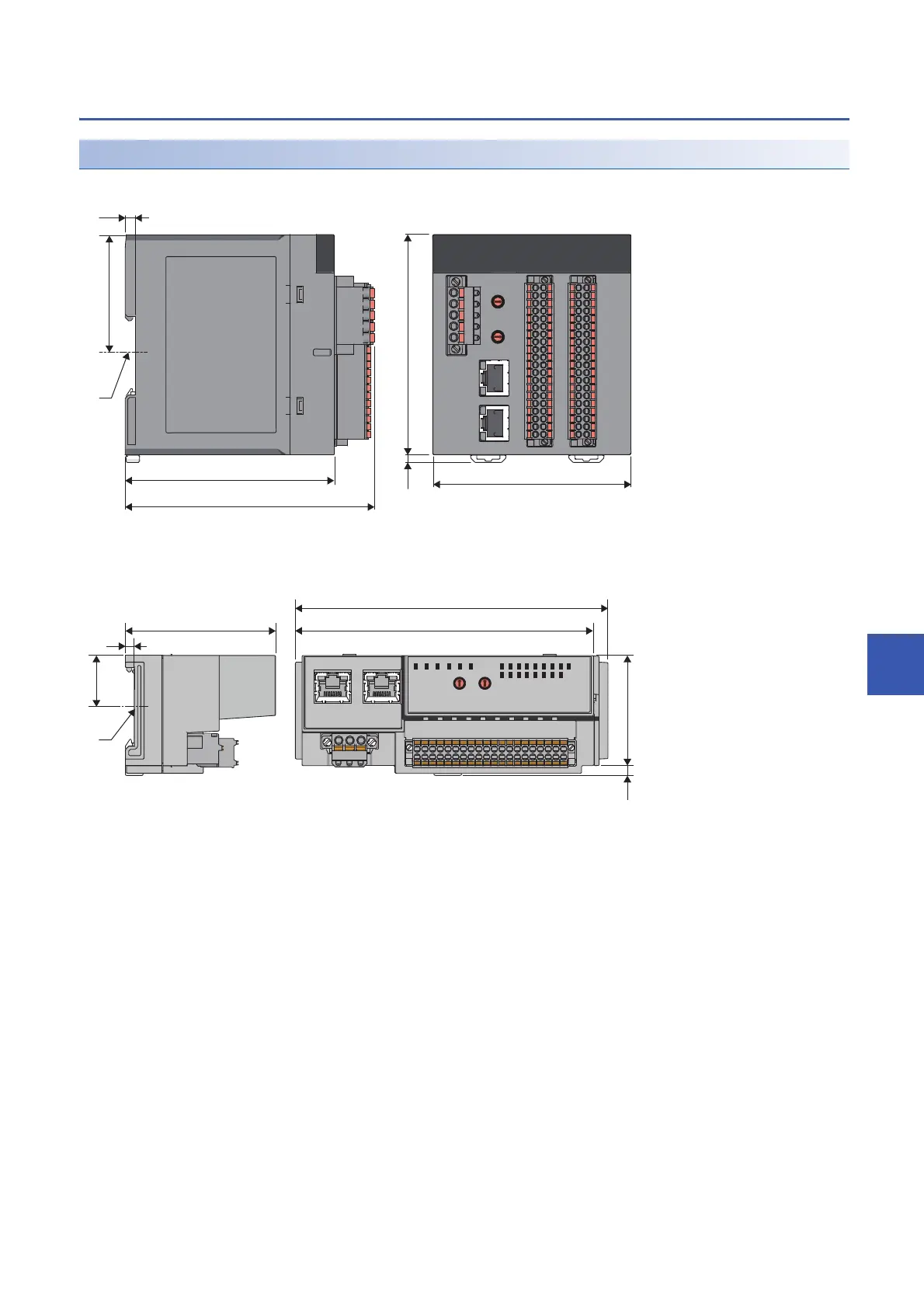

Appendix 7 External Dimensions
Main module
■NZ2GFSS2-32D-S1
■NZ2GFSS2-8D-S1, NZ2GFSS2-8TE-S1, NZ2GFSS2-16DTE-S1
(Unit: mm)
(1) DIN rail center
(Unit: mm)
(1) DIN rail center
55
100
90
113
95
3.5
4.5
(1)
135.5
50
142
68
23
4.5
(1)
4
