6 INSTALLATION AND WIRING
6.1 Setting of Network Number and Station Number
6 INSTALLATION AND WIRING
This chapter describes the installation and wiring.
6.1 Setting of Network Number and Station Number
Set the network number and station number to the safety remote I/O module. To set the network number, use the engineering
tool. To set the station number, use the rotary switch on the front of the module.
For the setting of the network number, refer to the following.
 MELSEC iQ-R CC-Link IE Field Network User's Manual (Application)
Station number setting with the station number setting switch
Setting method
Set the station number with the rotary switch on the front of the module. The setting value of the station number becomes
valid when the module is powered on. Thus, set the station number when the module is powered off.
• The hundreds and tens places of the station number are set with 10.
• The ones place of the station number is set with 1.
Ex.

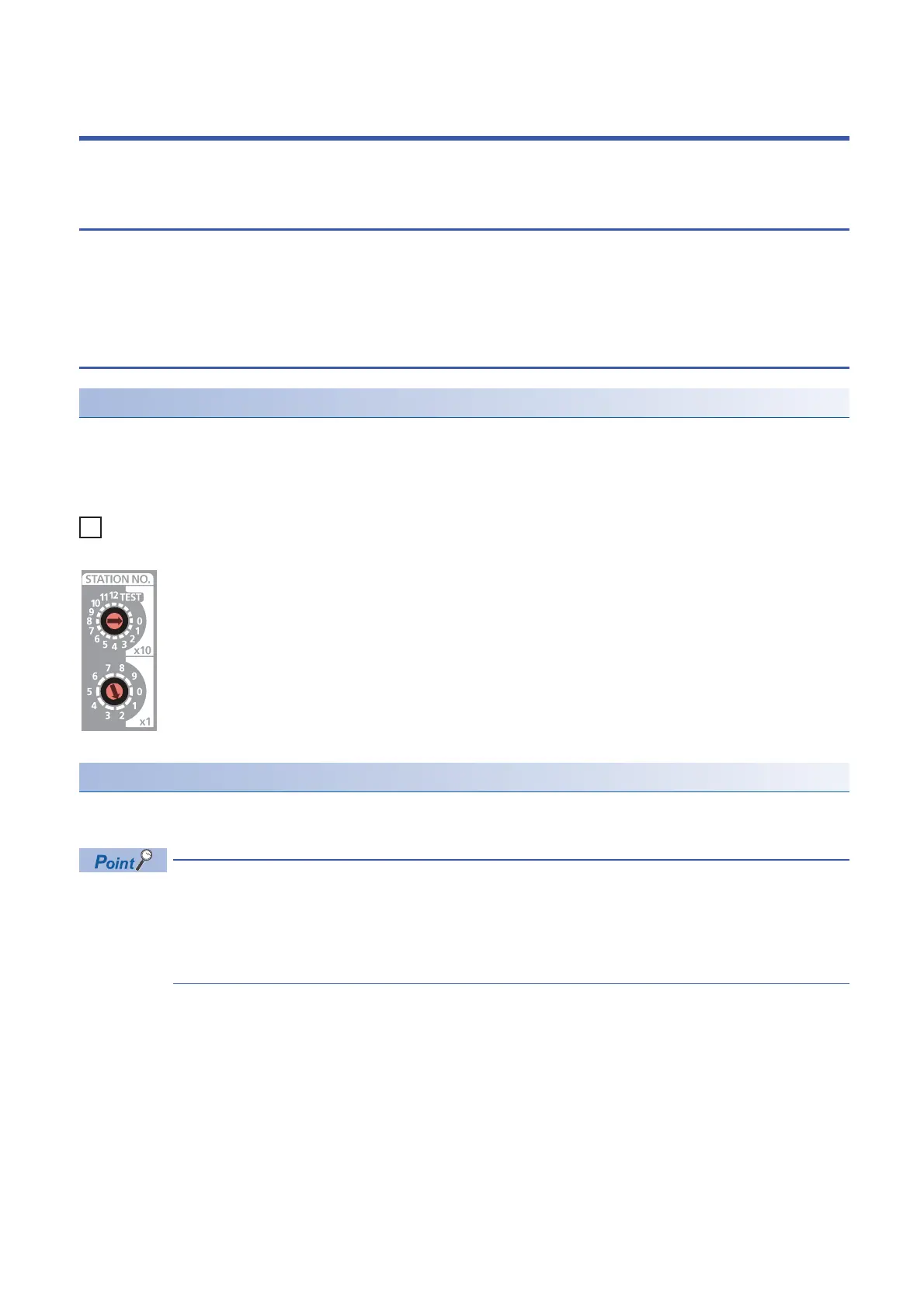

To set the station number to 2, set the switch as shown below.
Setting range
Set the station number from 1 to 120. Setting the value other than 1 to 120 causes a communication error and the D LINK
LED flashes.
• Do not change the station number setting switch while the module power supply is on. Changing the station
number setting switch causes a minor error and flashes the ERR. LED. Returning the station number setting
switches to the previous setting eliminates the error after five seconds and turns off the ERR. LED.
• Do not set a same station number as the other station numbers. If the station number is overlapped, a
communication error occurs and the D LINK LED does not turn on.
