6 INSTALLATION AND WIRING
6.3 Installation
51
6
6.3 Installation
Installation of extension modules
The numbers of input points and output points can be increased by connecting extension modules.
Number of extension modules connectable to a main module
Connecting extension modules
Connection procedure
■NZ2GFSS2-32D-S1
Module model name Model name of connectable extension modules Number of connectable extension modules
NZ2GFSS2-32D-S1 NZ2EXSS2-8TE 1
• NZ2GFSS2-8D-S1
• NZ2GFSS2-8TE-S1
• NZ2GFSS2-16DTE-S1
• NZ2EX2B1-16D
• NZ2EX2B1N-16D
• NZ2EX2S1-16D
• NZ2EX2B1-16T
• NZ2EX2B1N-16T
• NZ2EX2S1-16T
• NZ2EX2B1-16TE
• NZ2EX2B1N-16TE
• NZ2EX2S1-16TE
1

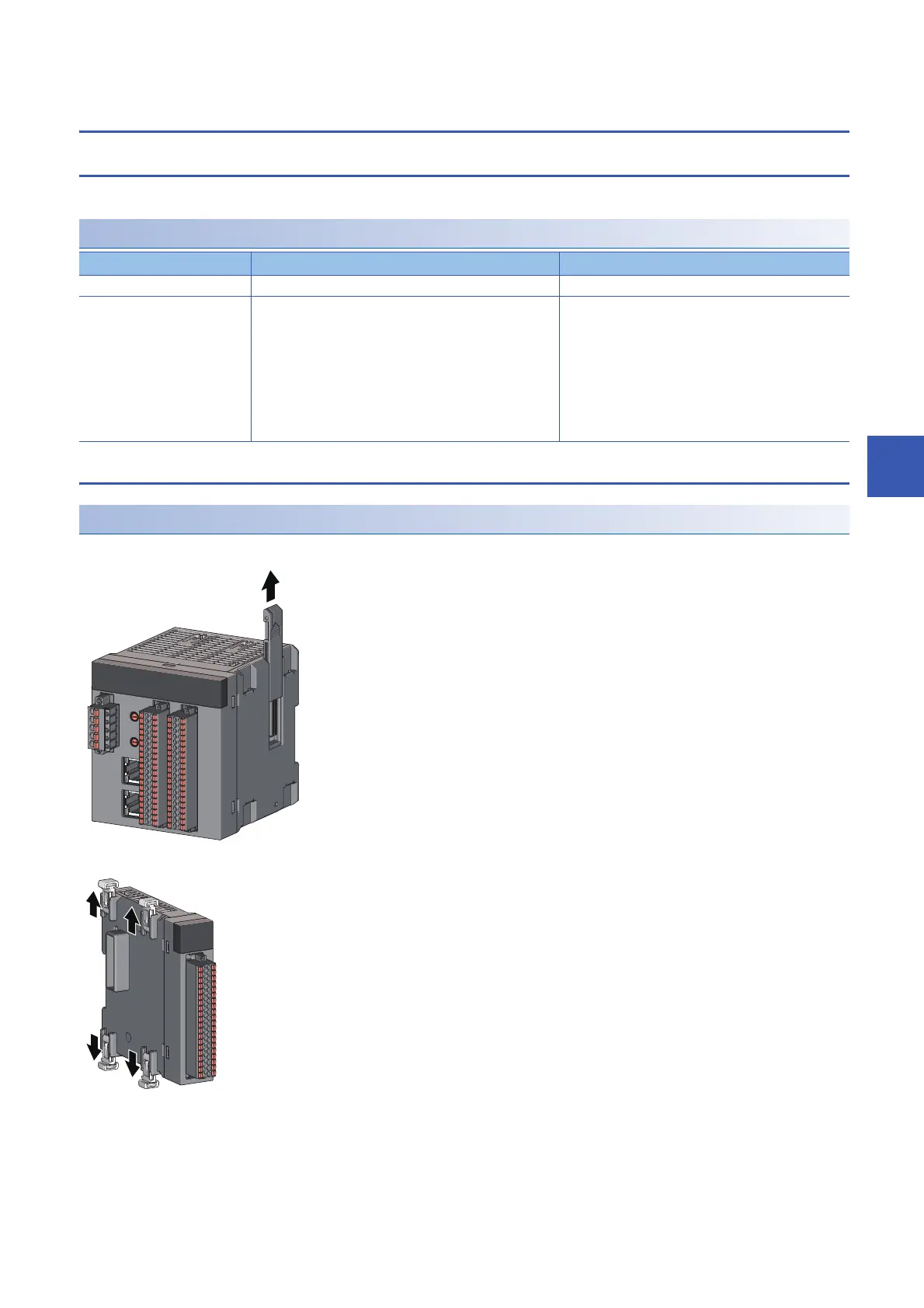

1. Remove the cover on the side of the module. Do not
dispose of the removed cover, but store it.
2. Release the module joint levers (four points) on the side
of the extension module. Slide the levers to the outside
of the module.
