Components
'13 • HM-T-193
Outdoor unit

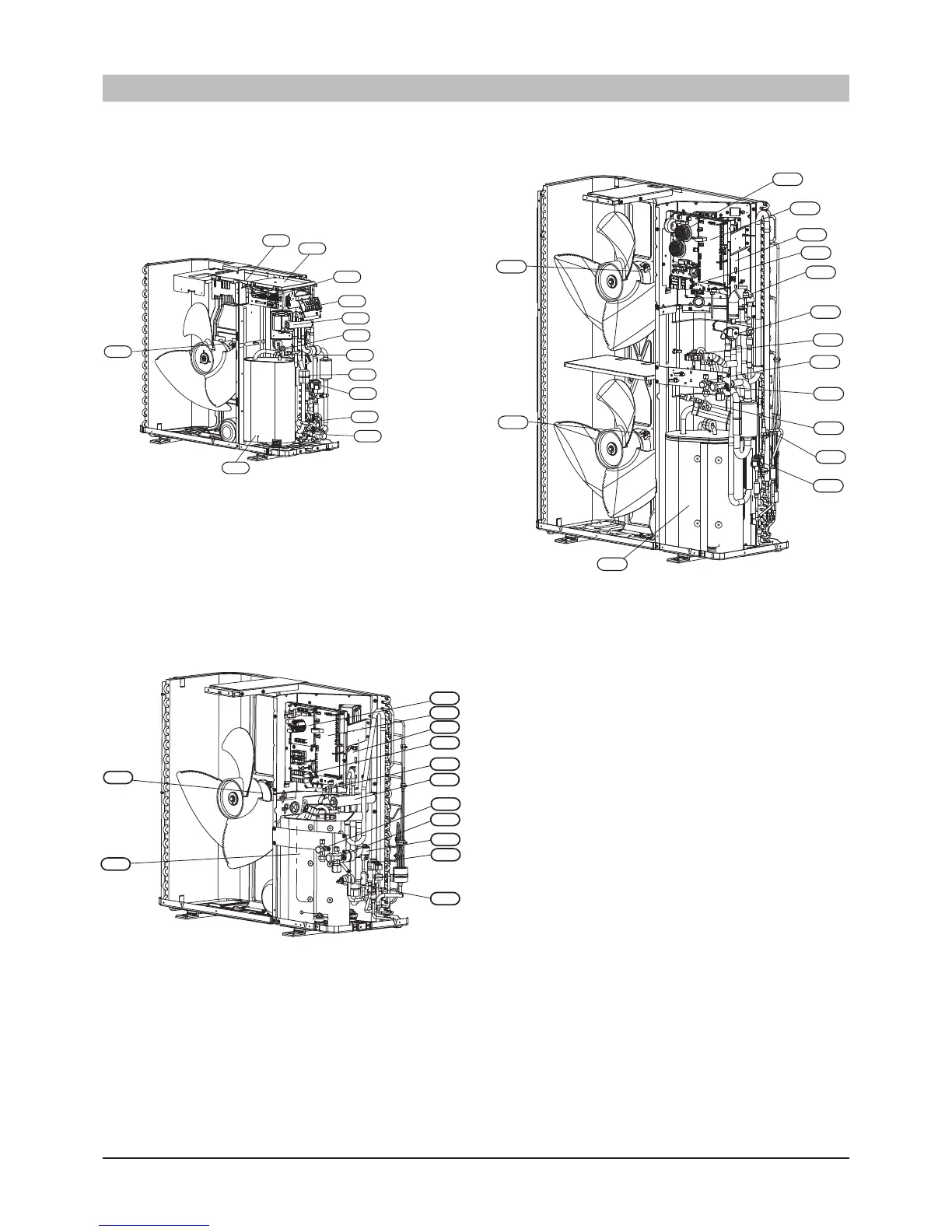

Component image
FDCW71VNX
FDCW100VNX
FDCW140VNX
List of components
Component positions
CM
FMo1
LPT
QM36
QM35
EEV-H
EEV-C
TB
63H1
20S
LEK
PWB1
PWB2
PWB3
PWB3
PWB1
PWB2
63H1
20S
EEV-C
QM35
QM36
LPT
SV1
EEV-H
CM
FMo2
FMo1
TB
20S
63H1
Compressor motorCM
EEV-C
Expansion valve, heatingEEV-H
FMo1
LPT
Solenoid for 4-way valve
High pressure switch
Expansion valve, cooling
Fan motor
FMo2
Fan motor
Low pressure sensor
PWB1
PWB2
PWB3
QM35
QM36
TB
Control PCB
Inverter PCB
Noise filter PCB
Service valve, liquid side
Service valve, gas side
Terminal block
SV1 Valve, solenoid
PWB2
PWB1
PWB3
TB
20S
63H1
LPT
EEV-H
EEV-C
QM35
QM36
CM
FMo1
