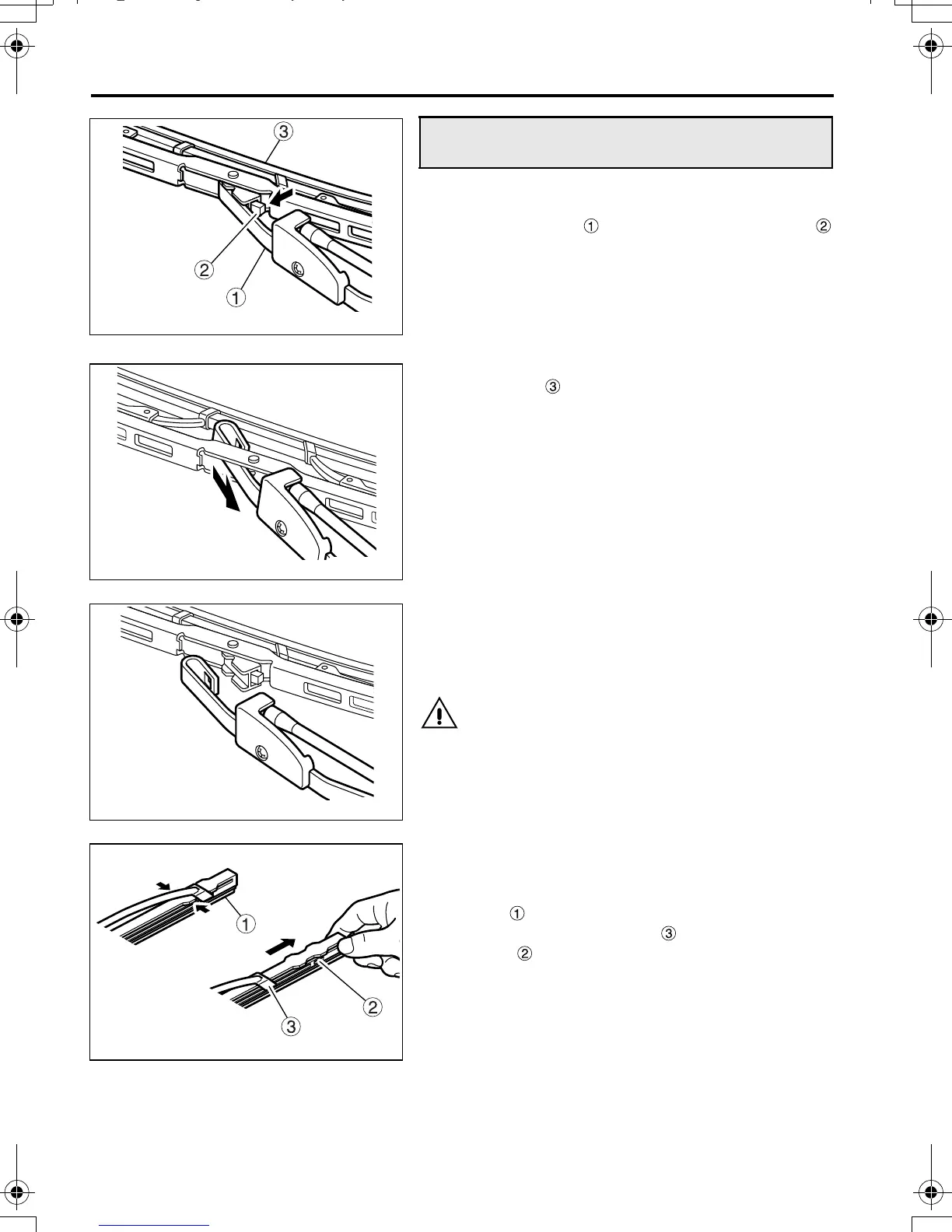

12-80 Simple inspection and service
1 Replacing wiper blade
1. Raise wiper arm , and then push clip spring
in the direction of the arrow (see figure).
2. With the clip spring kept in the pushed position,
press wiper toward the wiper arm.
3. The wiper blade will come off the wiper arm.
Install a new blade in the reverse order of
removal.
Use a genuine replacement part.
CAUTION
Do not bring the wiper arms back into position
or operate the wipers without wiper blades, as
this could scratch the windshield.
2 Replacing blade rubber only
1. Raise the wiper arm.
Pinch both sides (indicated by arrows) of blade
rubber with your fingers and then pull the
blade rubber so that claws are unhooked from
grooves in the blade rubber.
2. Slide out the blade rubber.
3. Replace the old blade rubber with a new genu-
ine wiper blade rubber.
To install, reverse the removal procedure. Make
sure that the claws fit into the grooves in blade
rubber.
Wiper blade – replacement
Z05981
Z05982
Z05983
Z09332
