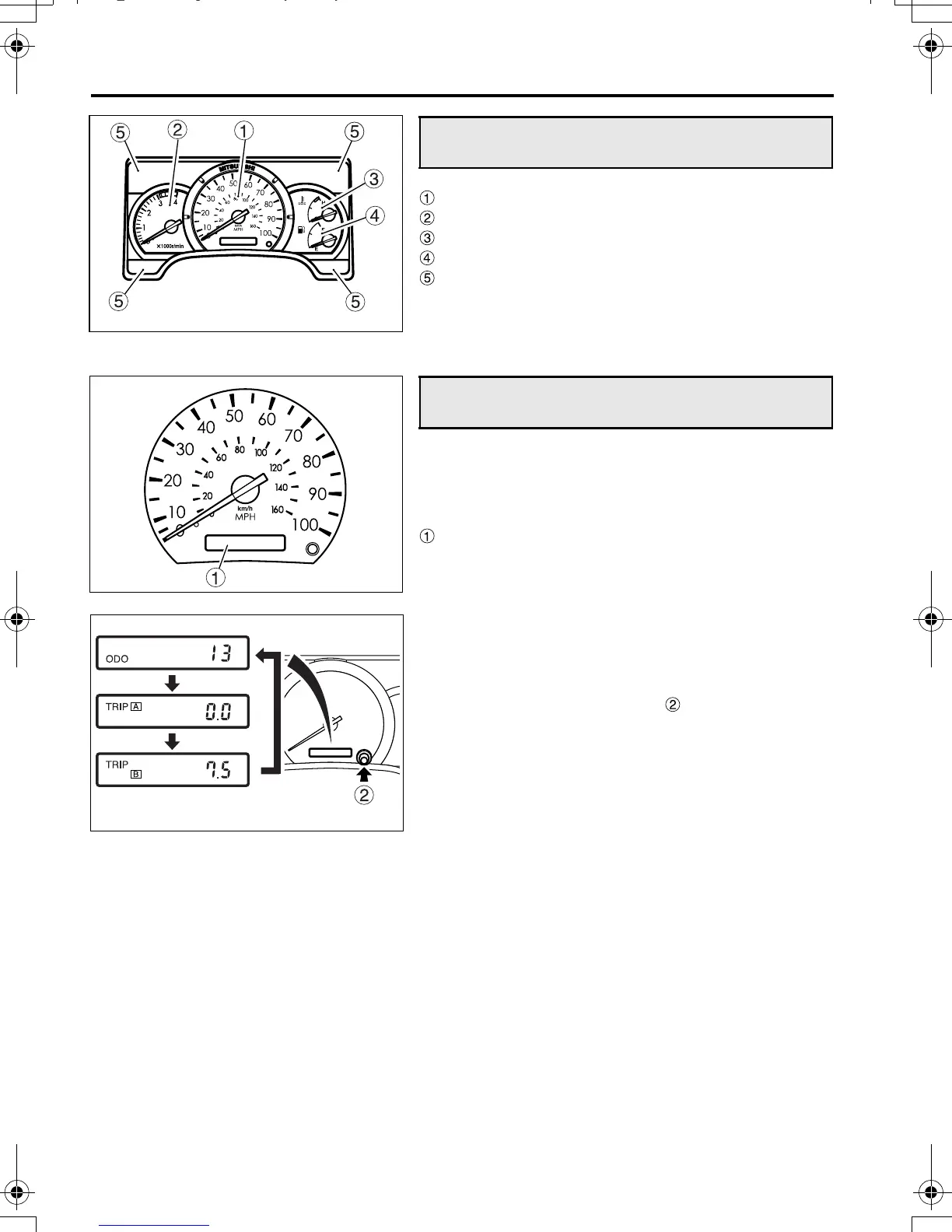

6-2 Instruments and warning lamps
Speedometer
Tachometer
Water temperature gauge
Fuel gauge
Warning/indicator lamps
1 Speedometer
The speedometer indicates vehicle speed in miles
or kilometers per hour.
Odometer/Tripmeter
2 Odometer/tripmeter
With the starter switch in the “ON” position, either
“ODO” (for “odometer”) or “TRIP” (for “tripmeter”) is
displayed. The display toggles between “ODO” and
“TRIP” each time the trip knob pressed.
• ODO (odometer)
The total distance covered by the vehicle is shown
to the nearest mile.
• TRIP (tripmeter)
The distance covered by the vehicle from a selected
point to its present location is shown to the nearest
0.1 mile.
The tripmeter has two indications: TRIP “A” and
TRIP “B”, which can be set and displayed indepen-
dently of each other.
To zero the current indication, press the trip knob for
approximately 1 second or longer. The indication
will return to “0.0”.
Arrangement of instruments and
warning lamps
Speedometer
Z11892
Z11893
Z08790
