3-8 Installation of the oil pan
1) Assemble the oil pan (No.1) and oil bottle
(No.2), which are enclosed in the accessory
box.
2) Insert the oil bottle (No.2) into the table top
cut-out hole (No.3), with facing the oil pan
end which has much shorter distance from
the bottle center front.
3) Install the oil pan (No.1) parallel with the table
front edge.
4) Fix the oil pan (No.1) at its four corners on
the table top with four staples (No.4)
enclosed in the accessory box.
1)
8)
6)
2)
7)
17)
16)
15)
12)
3)
19)
18)
4)
9)
13)
11)
14)
10)
5)

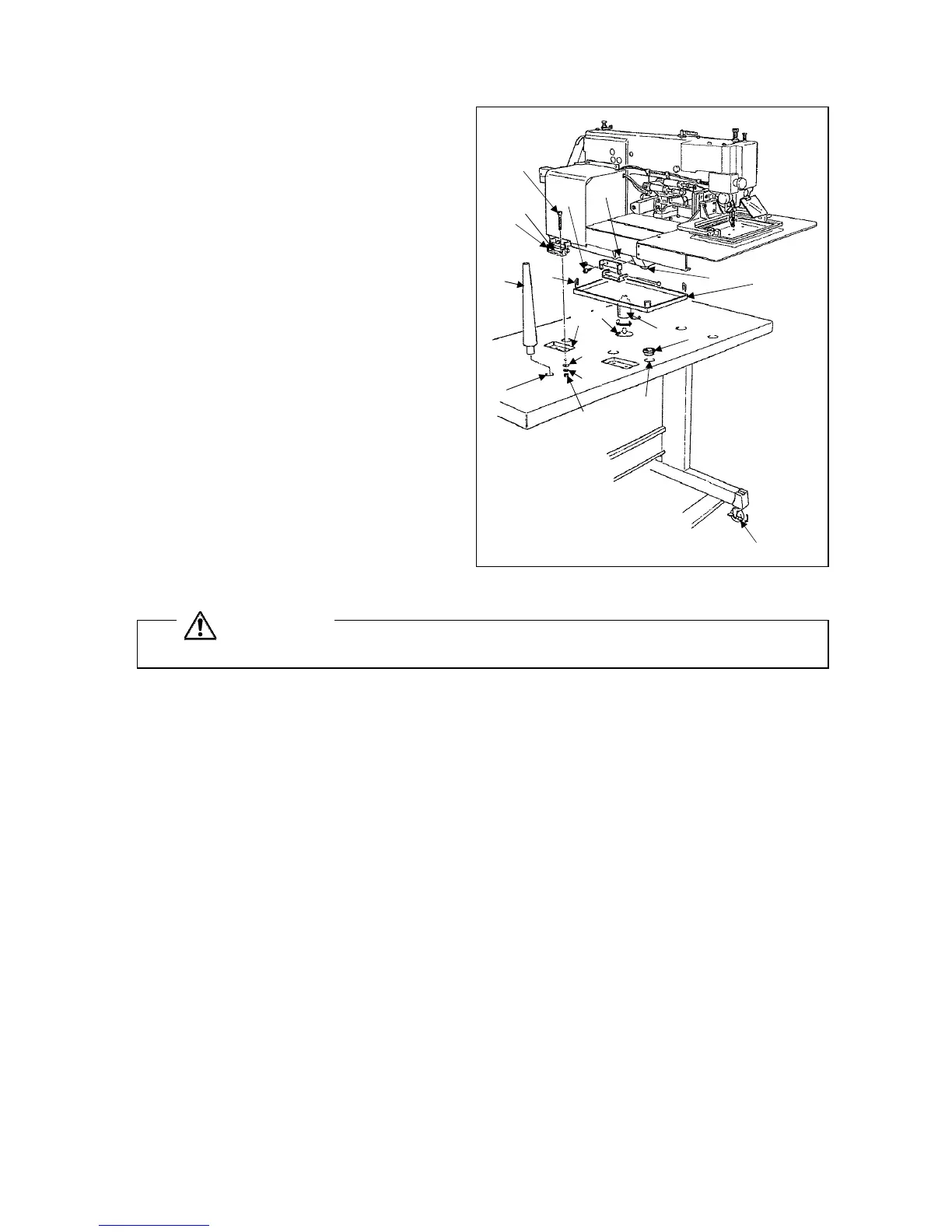

3-9 Installation of the sewing machine head
CAUTION
★For the safety, please make sure to carry the sewing machine head by two people at least.
1) Make sure to hold the machine table with the caster stopper (No.5).
2) Fit the rubber cushion pads (No.6) into the each hole (No.7) on the table top. The rubber cushion
pads (No.6) are enclosed in the accessory box.
3) Put the sewing machine head on the table top and set the each leg (No.8) to the each rubber cushion
pad (No.6).
4) Attach two hinges (No.9) temporarily, make the set screws (No.11) fastening with the thread holes
(No.10) light, on the left side surface of the machine bed with the hexagonal socket head set screw
(No.11).
At this time, take notice of the E-shaped snap ring must be come to the front.
5) Fit the screw holes (No.13) of the hinges (no.9) to the bolt setting holes (No.12) on the table top then,
pass the bolt (No.14) through these holes and fasten the bolt (No.14) to fix the hinges (No.9) with the
flat washers (No.15), the spring washers (No.16) and the nuts (No.17).
6) Fasten firmly the hexagonal socket head set screw (No.11) which set the hinges (No.9) temporarily at
above procedure 4) then, fix the hinges (No.9) perfectly.
7) Insert the head rest (no.18) into the hole (No.19) on the table top.
To Next Page
