Mitsubishi PLK-E2010R User Manual

- 15 -

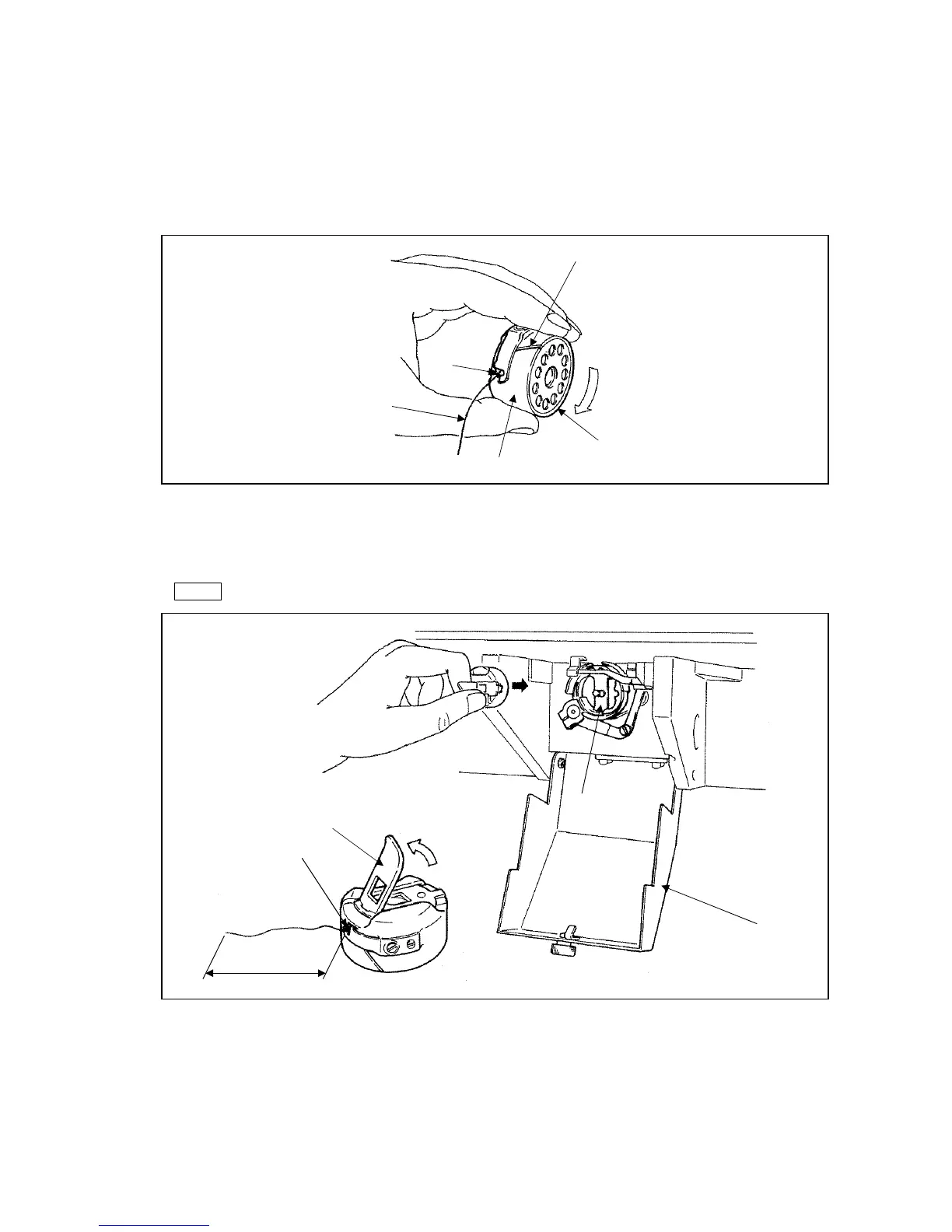

5-5 Setting the bobbin
1) Set the bobbin (No.2) into the bobbin case (No.1).
2) Pull the bobbin thread (No.3) into the slit (No,4) and pass the through the thread hole (No.5).
At this time, pull the bobbin thread (No.3) then, check with the bobbin (No.2) if it is rotated to the arrow
direction. If it is not, set the bobbin (No.2) into the bobbin case (No.1) over again to get the proper
rotation.
5)
3)
4)
2)
1)
5-6 Setting the bobbin case
1) Set the needle bar to its highest position then, open the cylinder cover (No.1).
2) Open the bobbin case latch lever (No.2) fully then, fit it securely in the inner hook (No.3).
NOTE
Please pull the bobbin thread about 50mm out of the thread hole (No.4) of the bobbin case.
2)
4)
50mm
1)
3)
