- 32 -

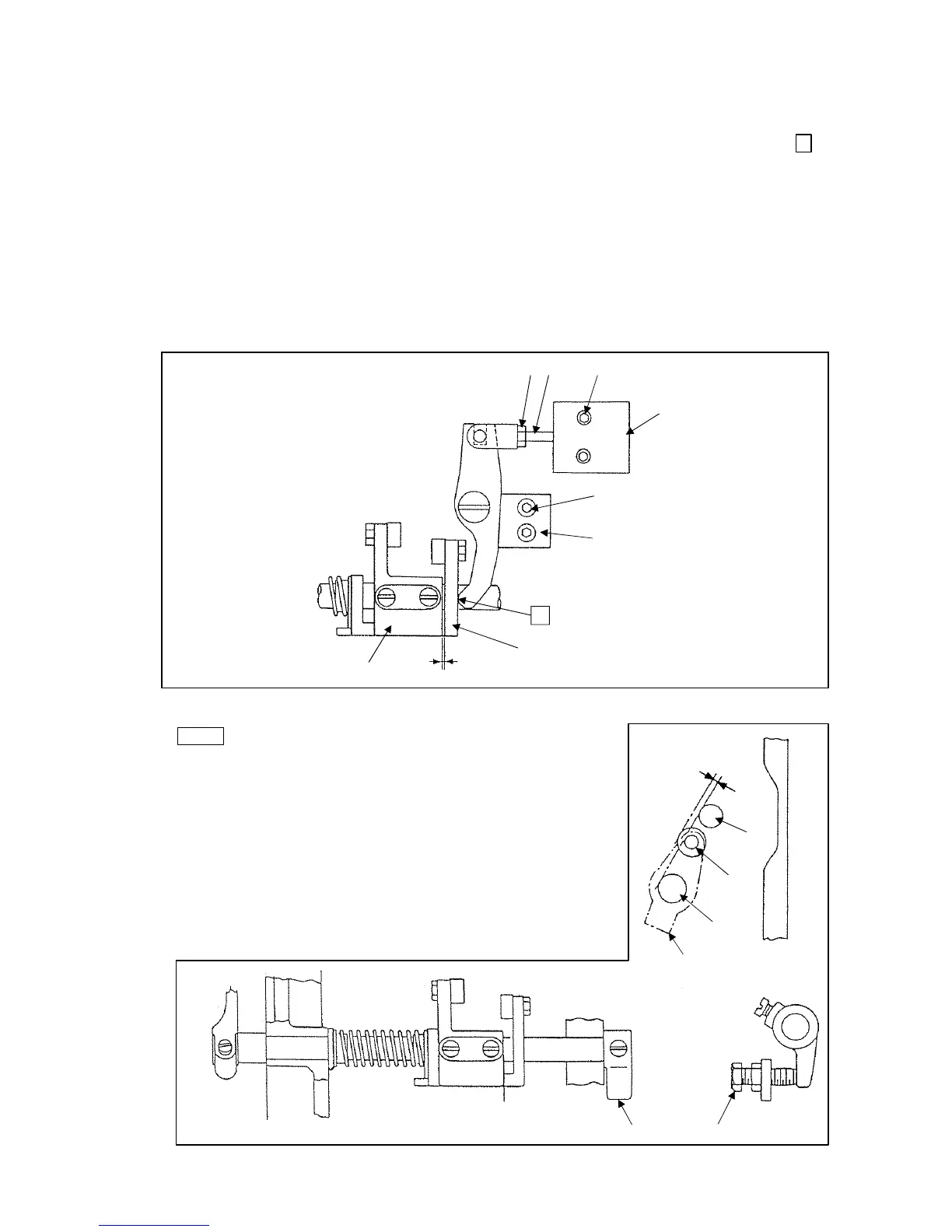

7-9-2.5 Adjustment of the mounting position of the air cylinder
1) Attach the thread trimmer air cylinder (No.1) by fixing with the bolt (No.2) When the thread
trimmer air cylinder (No.1) is released, there will be a clearance of apporox. 1mm at section A
.
To adjust this clearance, loosen the set screw (No.4) for the mounting plate (No.3), and move the
entire mounting plate (No.3).
After adjusting, securely tighten the set screw (No.4) for the mounting plate (No.3).
2) When the thread trimmer air cylinder (No.1) is activated, there will be a clearance of 0.5mm
between the cam follower crank 1 (No.5) and cam follower crank 2 (No.6). This us the standard
state. This clearance can be adjusted by loosening nut (No.7) for the air cylinder (No.1), and
rotating the shaft section (No.8) of the air cylinder (No.1).
After adjusting, securely tighten the nut (No.7) for the air cylinder (No.1).
1)
2)8)7)
4)
3)
6)
0.5mm
5)
A
7-9-2.6 Adjustment of the mounting position of the thread trimmer cam
3)
4)
2)
1)
3mm
Segment A-A
5
NOTE Before the trimmer mechanism is activated, the cam
follower crank 2 (No.1) is located under the condition that a
point of tangency of the cam follower (No.4) is over the
tangential line of the cam shaft (No.2) and the lower shaft
(No.3) at 3mm distance. This is the standard condition.
Make the following adjustments based upon this standard
condition. If this standard condition is changed by such
removing the stopper (No.5), set the cam follower crank 2
(No.1) back to the standard condition with the adjusting bolt
(No.6).
