5. PROPER OPERATION
5-1 Loading the system software to the control box
When the brand new machine is operated first time or when the control box is adjusted for the repairing,
the system software has to be loaded to the control box.
For this loading, please take the following procedure.
2)
1)
3)

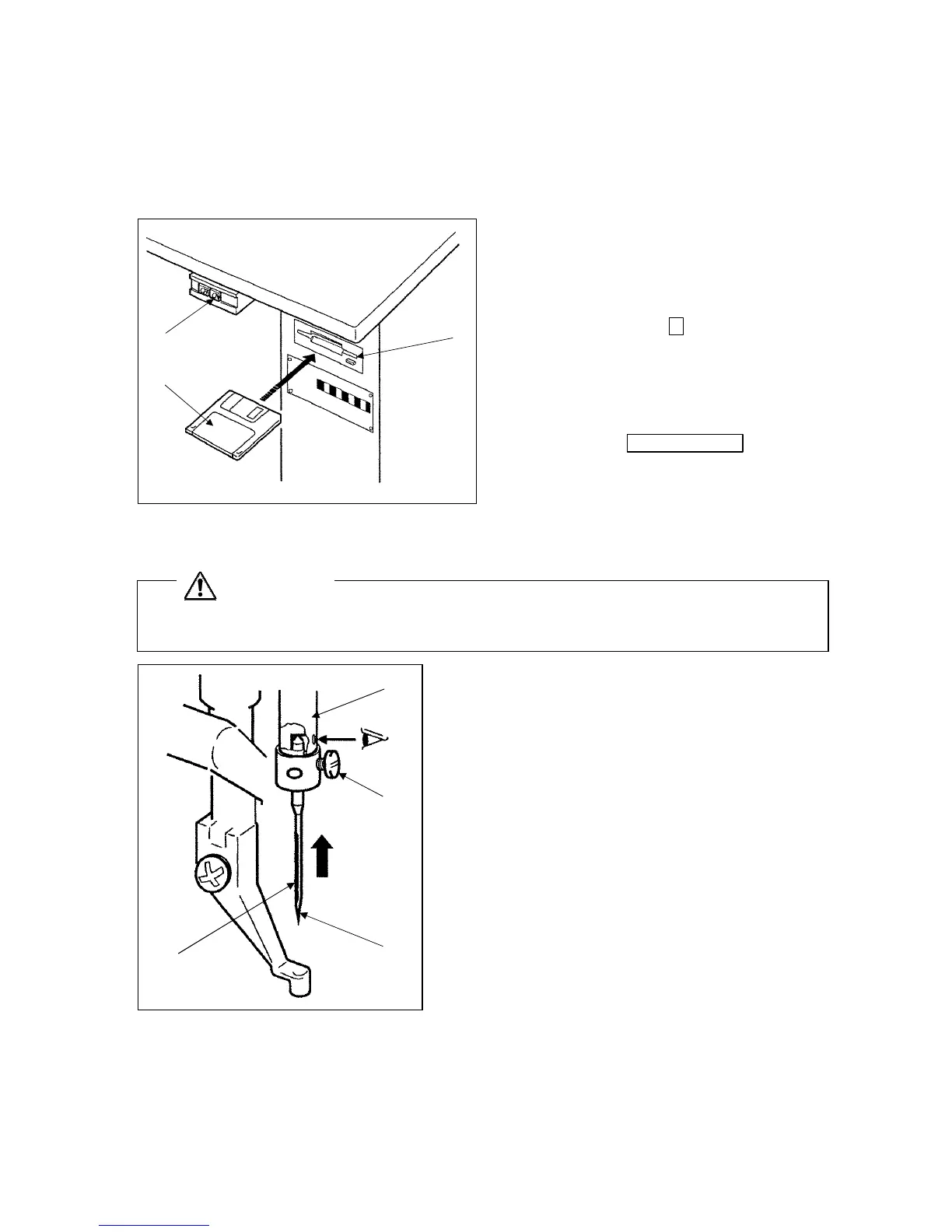

1) Insert the system floppy disc printed [F1] (no.2)
into the disc drive (No.3) of the control box. The
system floppy discs are enclosed in the
accessory box.
2) While holding down the F
key on the setting
panel of the control box, turn the power switch
(No.1) ON.
3) Load the system software with following the
instructions [System installation method] on the
technical manual CONTROL UNIT
.
4) After loading the system software, keep the
system floppy disks with in care.
5-2 Installation of the needle
CAUTION
★Please make sure to turn the power switch OFF before installing or replacing the needle.
★Please pay attention for the fingers not to be wounded by the needlepoint.
3)
1)
2)
4)
1) Loosen the needle set screw (no.1) then, insert the end of
the hole of the needle bar (No.3).
2) Fasten the set screw (No.1) with facing the needle groove
(No.4) to the front.
