２ Robot arm
Options
2-32
(4) Hand input cable
■Order type: 1S-HC25C-01
■ Outline
The hand input cable is used for customer-designed pneumatic hands.
It is necessary to use this to receive the hand's open/close confirmation signals and
grasping confirmation signals, at the controller.
One end of the cable connects to the connector for hand input signals, which is in
the wrist section of the hand. The other end of the cable connects to the sensor
inside the hand
customer designed.
■Configuration
Table 2-18 ： Configuration equipment
■ Specifications
Table 2-19 ： Specifications

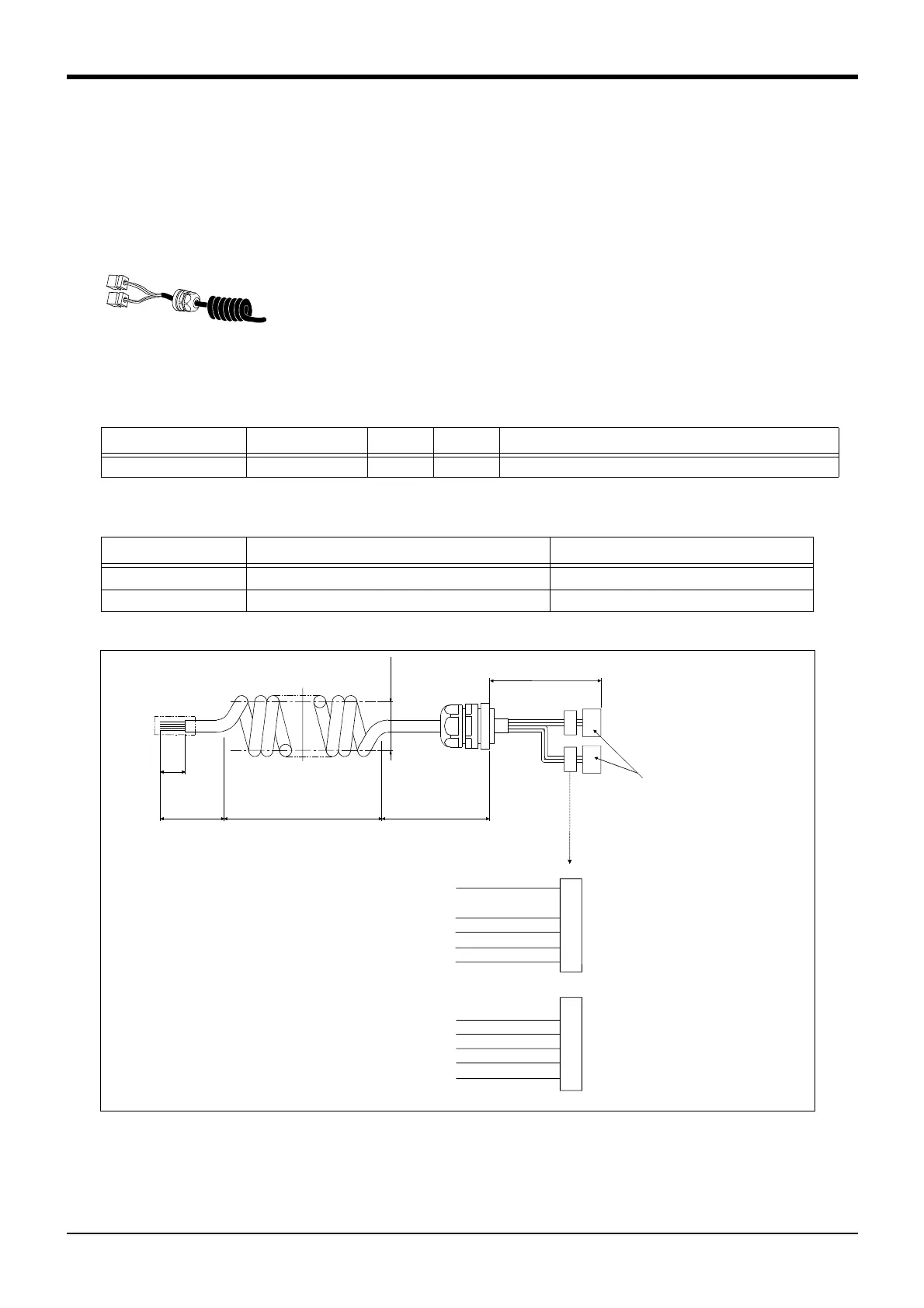

Fig.2-12 ： Outside dimensional drawing and pin assignment
[Caution] This option can be installed on clean-type, but its cleanliness is not under warranty.
Part name Type Qty. Mass(kg) Remarks
Hand input cable 1S-HC25C-01 1 cable 0.2
Item Specifications Remarks
Size x cable core
AWG#24 (0.2mm
2
)×12
One-sided connector, one-sided cable bridging
Total length 800mm (Including the curl section, which is 300mmlong）
15
200 300 200±10
100
φ25
HC1
HC2
HC3
HC4
+24V
Reserve
24G（
RG）
HC5
HC6
A1
(Yellow)
(Purple)
(Brown)
(Blue)
(Black)
(Green)
(Red)
(White)
A2
A3
B1
B2
B3
A1
A2
A3
B1
B2
B3
Reserve
HC7
HC8
(Gray)
（Pink）
<HC1>
<HC2>
1-1318115-3
(Tyco Electronics AMP)
HC
HC1
HC2
To Next Page
