3 Controller
Ethernet interface
3-80

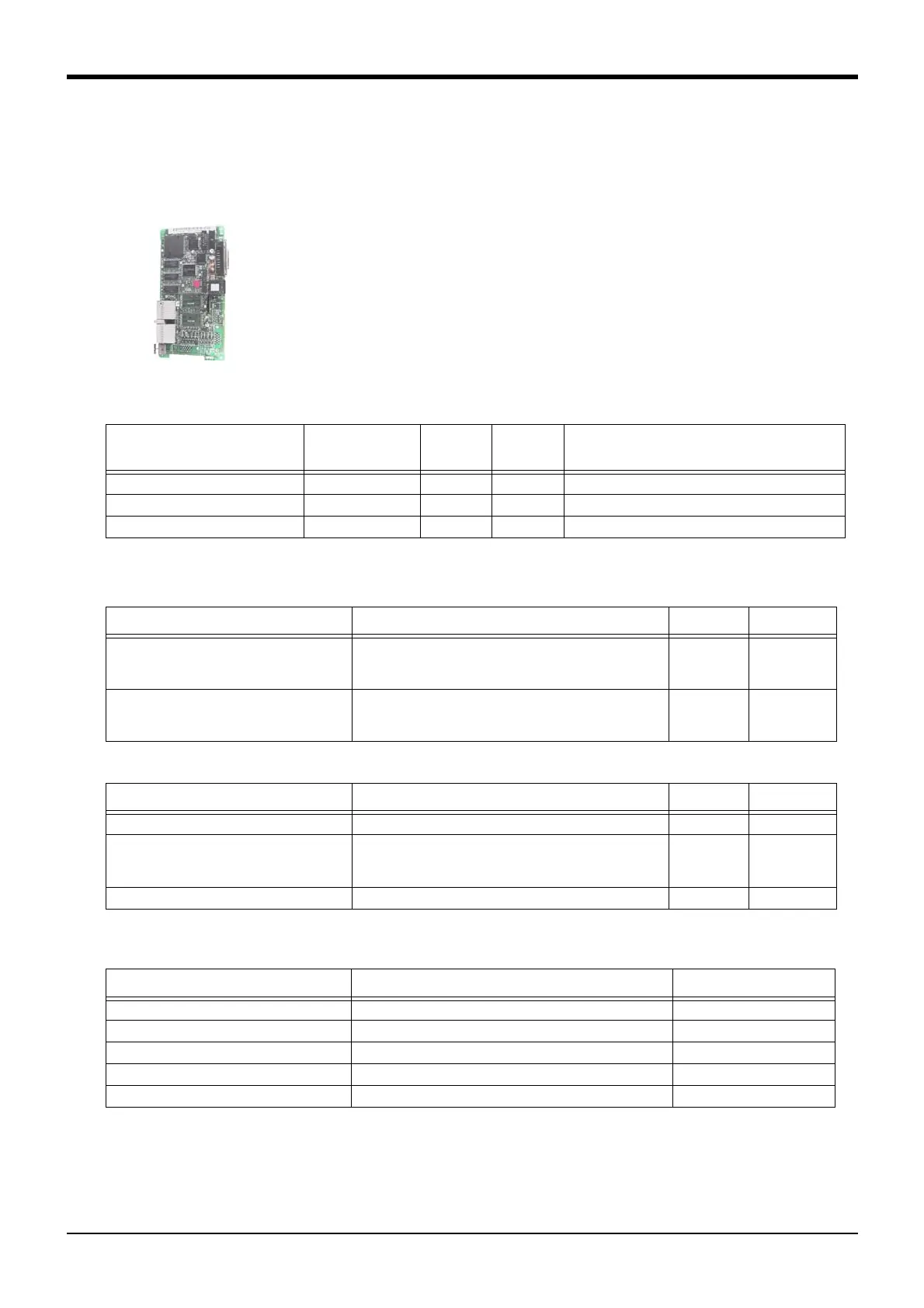

(10) Ethernet interface
■ Order type: ● 2A-HR533-E
■Outline
The Ethernet interface is the option to add an Ethernet communication function to
the robot controller.
The extended option box (CR1-EB3) is required separately. Refer to Page 59, "(4)
Expansion option box" for ditails.
Caution) This option can only be used with the robot controller's main unit software
version E2 or later.
Also, compatible version differs for each function. Refer to "Table 3-39:
Software Versions and Functions of the Controller" for details.
■ Configuration
Table 3-35 ： Configuration deviceon
Table 3-36 ： Procured by the customer
Table 3-37 ： Items required as needed
■ Specifications
Table 3-38 ： Specifications
A personal computer and the robot controller that communicates with that personal computer must be located on
the same network. They cannot communication with each other crossing a firewall (from the Internet) or gateway
(from another adjacent network, etc,). If such form of communication must be implemented, consider communicat
-
ing via a server connected to the same network as that of the robot controller. Be cautious about safety and
response performance in this case.
Part name Type Qty.
Mass(kg)
Note1)
Note1)Mass indicates one set.
Remarks
Ethernet interface 2A-HR533-E 1 0.3
Instruction Manual BFP-A8108 1 -
Ferrite core E04SR301334 1 - Be sure to install this for noise countermeasure.
Part name Type Qty. Remarks
Personal computer
(A network interface is required.)
Windows 95/98/Me/NT 4.0/2000/XP compatible. Installed
with TCP/IP network functions, including Linux OS
(However, operation has not be verified.)
From 1 unit.
Ethernet cable
(Select either straight cable or cross cable
depending on the connection mode.)
10BASE-T or 10BASE-5 From 1 cable.
Part name Type Qty. Remarks
Hub (Required for use in LAN environment) (Commercially sold) 1
Windows compatible robot controller
programming support tool for Mitsubishi CRn-
500 series controllers
(Separately sold) Personal computer support software 1
Windows compatible development tool (Commercially sold) Microsoft Visual C++, Visual Basic, etc. 1
Item Specifications Remarks
Mountable optional slots Slot 1 only
Number of mountable interface cards 1
LAN interface 10BASE-T or 10BASE-5(changeover type)
Transmission speed 10Mbps
Connector specification RJ-45
