3 Controller
Extended serial interface
3-74

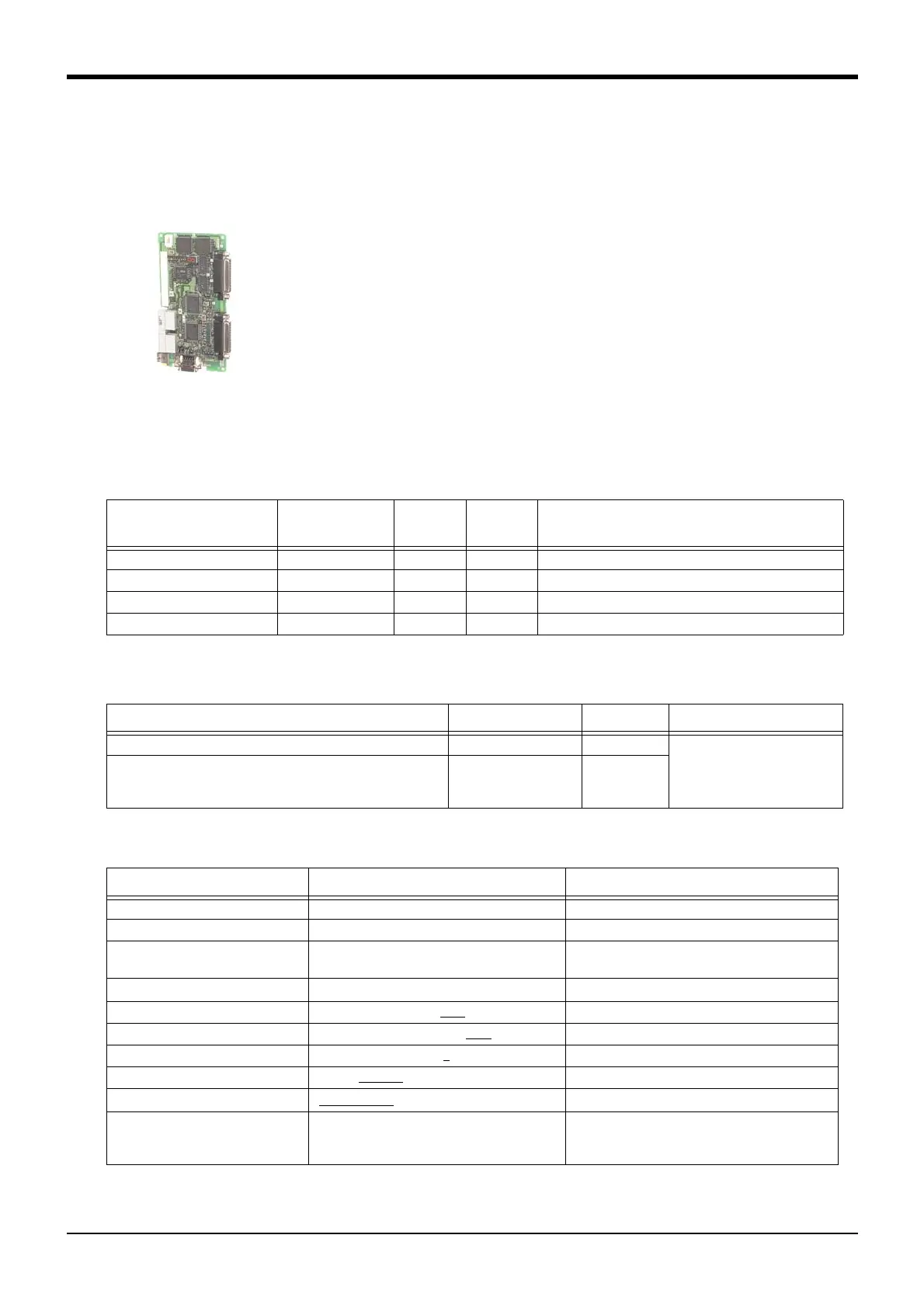

(8) Extended serial interface
■ Order type: ● 2A-RZ581-E
■ Outline
The extension serial interface is the option to add a serial communication function to
the robot controller. One channel of RS-232C interface is provided in the front of the
controller. By using the extension serial interface, more channels can be added in
order to allow the use of a personal computer, vision sensor and PLC at the same
time. Also, in addition to RS-232C communication, RS-422 communication, which is
superior in noise resistance, is also supported.
The extended option box (CR1-EB3) is required separately. Refer to Page 59, "(4)
Expansion option box" for ditails.
Caution) 1)This option can only be used with the robot controller's main unit software
version E1 or later.
2)It is now possible to install up to three expansion serial interface cards per
controller from version B. In addition, the software version of the control
-
ler is K8 edition or later, the tracking function has been added
■ Configuration
Table 3-28 ： Configuration device
Table 3-29 ： Procured by the customer
■Specifications
Table 3-30 ： Specifications
Part name Type Qty.
Mass(kg)
Note1)
Note1)Mass indicates one set.
Remarks
Extended serial interface card RZ581? 1 0.6 The "?" show the version of card.
Instruction Manual BFP-A8106 1 -
Tracking Function Manual BFP-A8524 1 - Refer to this manual, if the tracking function is used.
Ferrite core E04SR301334 4 - Be sure to install this for noise countermeasure.
Part name Type Qty. Remarks
Personal computer, vision sensor, etc. From 1 unit. Two channel per one board.
Communication cable
(used when the length of the standard RS-232C cable is too
short, or when RS-422 communication is implemented)
RS-232C or RS-422 From 1 cable.
Item Specifications Remarks
Mountable optional slots Slot 1 or 2
Number of mountable interface cards Maximum 2
Number of channels 2 Channel 1: Dedicated to RS-232C
Channel 2: Either RS-232C or RS-422
Communication data
ASCII data
Note1)
Note1)Binary data communication is not supported.
Communication baud rate 2400 / 4800 / 9600 / 19200 This has been set to "9600" at shipment.
Parity Notiong / Odd/ Even This has been set to "even" at shipment.
Stop bit 1 / 2 This has been set to "2" at shipment.
End code CR code/ CR code + LF code This has been set to "CR code" at shipment.
Protocol
Nonprocedural / Procedural / Data link
Note2)
This has been set to "nonprocedural" at shipment.
Remarks Capable of offering the same functions as
provided by the standard RS-232C interface in
the front of the controller
To Next Page
